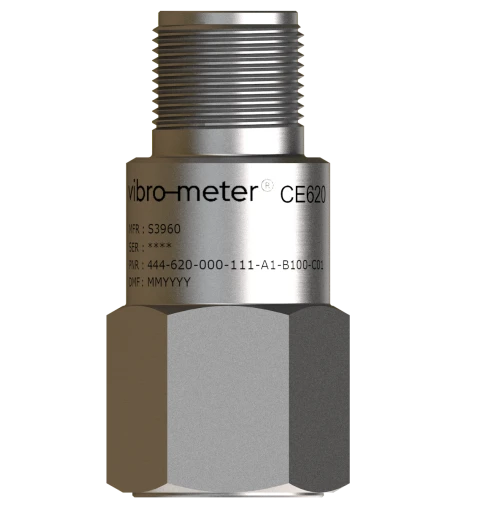

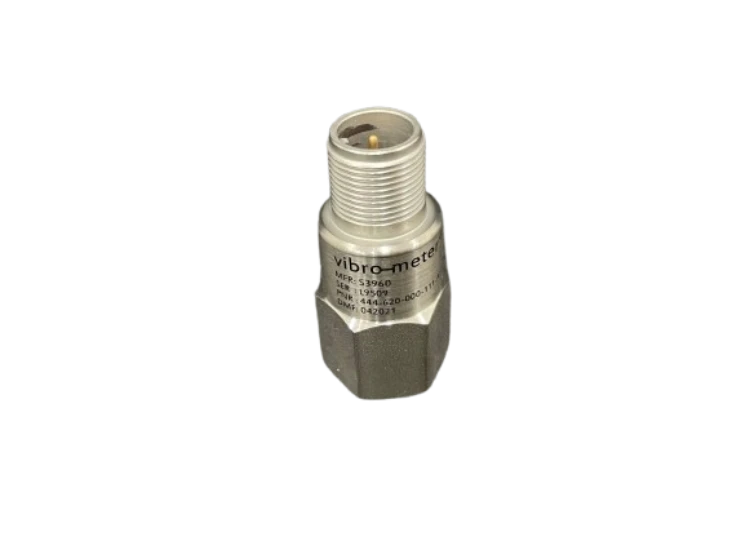

CE620 444-620-000-011-A1-B100 Piezoelectric Accelerometer
Overview
The CE620 444-620-000-011-A1-B100 piezoelectric accelerometer is an IEPE (Integrated Circuit Piezoelectric) vibration sensor available in sensor-only versions or with an internal cable protected by a stainless steel braid. The sensor is available in 100 mV/g or 500 mV/g sensitivity options for Standard Area and Hazardous Area (Ex certified version) and is available in either Detachable Cable or Integral Armored Cable configurations.
Related products: CE620 444-620-000-111-A1-B100-C01
Function & Features
- With built-in signal conditioning circuit, CE620 only needs 2-20 mA constant current power supply to output dynamic vibration signal (AC) and bias voltage (DC)
- Integrated armored cable: stainless steel braided layer protection, anti-mechanical damage.
- CE620 standard version: suitable for non-hazardous industrial environments (such as power plants, pumping stations).
- CE620 explosion-proof version (Ex): certified for use in potentially explosive gas environments (such as petrochemicals, mining)
Specifications
| Parameter | Details |
| Series | CE620 |
| 100 mV/g versions | ±80 g peak |
| 500 mV/g versions | ±16 g peak |
| Transverse sensitivity | <5% |
| Linearity | ±1% maximum |
| 100 mV/g versions (ordering option code B100) | −55 to 120°C (−67 to 248°F) |
| 500 mV/g versions (ordering option code B500) | −55 to 90°C (−67 to 194°F) |
| Humidity | IP68 (according to IEC 60529) |
| Shock vibration limit | 5000 g peak |
| Continuous vibration limit | 500 g peak |
| Base strain sensitivity | 0.0002 g peak/µε |
| Electromagnetic sensitivity (50 Hz, 0.03 T) | 0.2 g |
