GE Mark V

Your Professional GE Mark V Supplier



Our goal is to become your true partner in the field of GE Mark V in China. We specialize in PLC modules, DCS control cards, ESD control cards, turbine supervisory, vibration monitoring and asset protection system. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.




First 12345 Last


Why Choose Us





Product application: Our products are ABB, Bently Nevada, Invensys, etc. These products are widely used in CNC machinery and metallurgy, oil and gas, petrochemical, chemical and other industries.


Our experience: We are an industrial automation equipment supplier, we focus on PLC DCS and TSl system modules and spare parts for 10 years.


Our services: In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation. During the sales period, we ensure timely delivery and provide installation guidance. For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable maintenance during use.



GE DS200TCCAG1A Common Analog I/O Board



Advantages of GE Mark V

Improved HMI: Mark V introduced a more intuitive and user-friendly HMI, providing operators with enhanced visibility and control over turbine parameters. The graphical interface was more sophisticated, aiding in quicker decision-making.


Advanced Diagnostic and Prognostic Tools: The Mark V system expanded diagnostic capabilities, incorporating predictive maintenance tools that enabled operators to anticipate potential issues and plan maintenance activities proactively.


Digital Control Platform: Mark V transitioned to a fully digital control platform, replacing analog components with digital counterparts. This transition enhanced precision, speed, and overall system reliability.


Integrated Control and Protection: Mark V integrated control and protection functions seamlessly, improving the overall safety and responsiveness of the turbine control system.





Specification of GE Mark V





Item

Details

Microprocessors

Three high-performance 16-bit microprocessors are used and interconnected through Dual-Ported Random Access Memory (DPR).

Digital Signal Processor

Equipped with TMS320C25 DSP (Co-motor Processor) to achieve high-speed digital signal processing.

Interface Circuitry

Built-in interface circuitry that can be connected to other GE Mark V components to ensure system communication.

Test Points

There are metal columnar test points distributed along specific signal paths for system diagnosis and testing.

Hardware Configuration Components

Including Berg-Type Jumpers (named with JP nomenclature) and Wire Jumpers (named with WJ nomenclature), as well as the jumper settings of factory preset configurations.



Features of GE Mark V




24 Input Channels

The GE DS215KLDBG1AZZ03A Display Board has up to 24 input channels, which can connect to multiple external devices or signals and receive information and commands from different sources within the system.




12 Relay Channels

The 12 relay channels give the GE DS215KLDBG1AZZ03A Display Board powerful control capabilities. It can flexibly control external devices based on the received input signals, or activate specific functions within the system to achieve regulation of the entire system.




High Voltage Handling Capability

The GE DS215KLDBG1AZZ03A Display Board trip solenoid is rated at 125 V dc, making it well suited to handle the high voltage requirements of trip-related functions within the system.




Pre-drilled Design

The GE DS215KLDBG1AZZ03A Display Board is rectangular in shape with pre-drilled holes in each corner and in the middle of each side. These holes are strategically placed to allow screws to securely fasten it to the unit or enclosure





Application of GE Mark V

Gas and Steam Turbine Control Systems

GE Mark V is used in Mark VI and Mark VIe turbine control systems developed by GE. These systems are used for power plant management and control of gas and steam turbines. It ensures the correct distribution of power to key components such as the control engine core, I/O core, and other related boards.

Power Distribution in Control Systems

TCPS board in each I/O core. Control Engine Core (responsible for executing control algorithms). TCEA board in P1 core. It also provides power to DTBC and DTBD terminal boards in the digital core, which are used for solenoid output power.

GE DS200PCCAG1ACB Power Connect Board

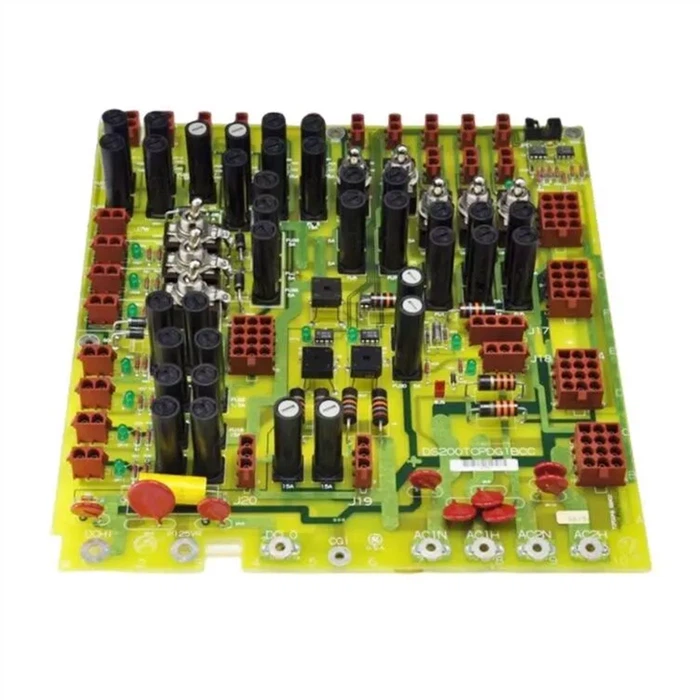

GE DS200TCPDG1B DS200TCPDG1BCC Power Distribution Module

Digital I/O Core Power Management

While the GE Mark V does not directly power the digital I/O cores (Q11, Q21, and Q51), it plays a role in ensuring that these cores receive power indirectly through their associated I/O cores.

Ignition Transformer Power

This board provides 120/240 V AC to the ignition transformer connected to the DTBC terminal block.This is critical for the ignition system in a gas turbine, as ignition is essential for startup and operation.



Components of GE Mark V





The Mark V control panel houses printed circuit cards and terminal boards within cores, which are sheetmetal housings. These cores can accommodate stationary and movable printed circuit card holders known as card carriers. Each core can support a maximum of five printed circuit cards mounted on the card carriers. Additionally, up to four I/O terminal boards (printed circuit cards with high-density terminal boards) can be mounted on a single core.





Packing and Shipping of GE Mark V





Packing

Box

Shipping

Shipped by road, sea, rail





FAQ





Q: What are the primary configurations available for the Mark V control panel?

A: The Mark V control panel is available in two primary configurations: Triple Modular Redundant (TMR) and Single Modular (Simplex).

Q: How are these configurations typically used in gas turbine applications?

A: New gas turbine units predominantly utilize the TMR control panel for enhanced redundancy and reliability. However, most existing gas turbine control system retrofits have the flexibility to choose between a TMR or Simplex control panel.

Q: Can steam turbine units also benefit from the control panel?

A: Yes, both new and existing steam turbine units have the option to be equipped with either a TMR or Simplex control panel, providing adaptability to various applications.

Q: What is the difference between Mark VI and Mark VIe?

A: Mark VI: The Mark VI system primarily uses proprietary communication protocols for internal data exchange. This can limit interoperability with third-party devices and systems. Mark VIe: The Mark VIe system supports open communication standards such as Ethernet/IP, Modbus TCP/IP, and OPC.

Q: What is the start up sequence of the GE gas turbine?

A: It involves sequential checks by protective systems to ensure safe operating conditions. The startup process includes establishing lube oil pressure, firing the diesel engine to turn the turbine, igniting the fuel, accelerating the turbine up to operating speed, and loading the generator.

Q: What is GE Mark VI?

A: GE Vernova's Mark VIe distributed control system (DCS) provides plant automation with an integrated control system across your entire plant, including the power train equipment, electrical and mechanical distribution, processes, and BOP.

As one of the leading ge mark v manufacturers and suppliers, we warmly welcome you to buy discount ge mark v from our factory. All our products are with high quality and competitive price.
