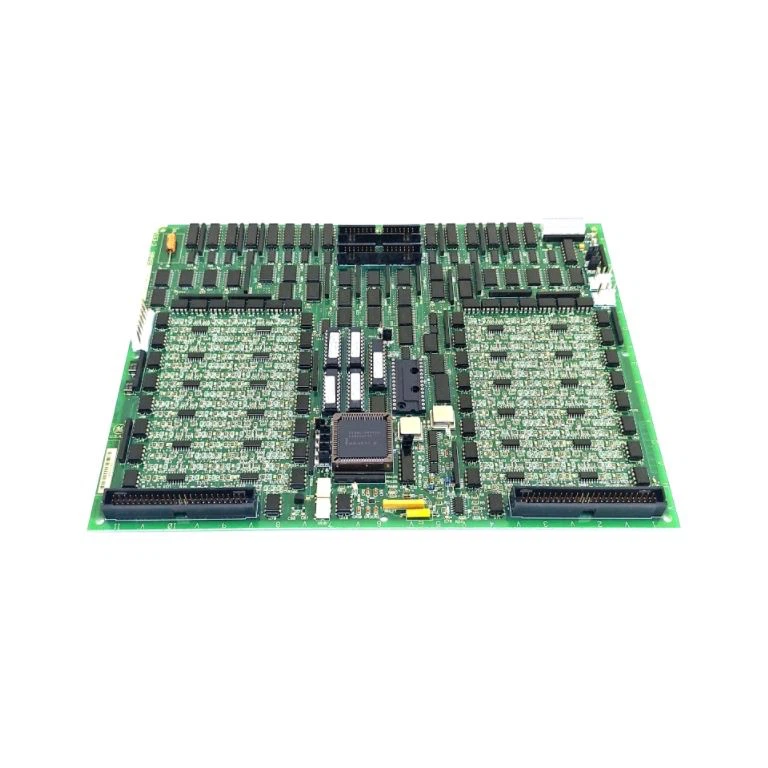

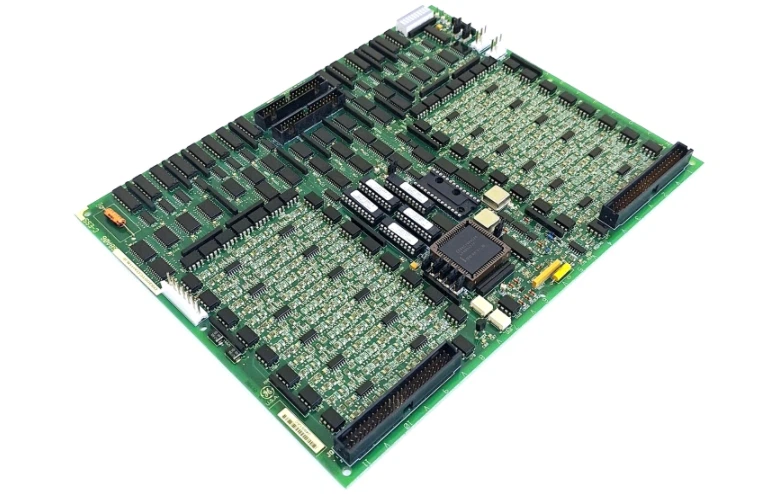

GE DS200TCDAH1B Digital I/O Board
Overview
Product Description: The GE DS200TCDAH1B Digital I/O Board is a dedicated signal interface module designed for the GE Speedtronic Mark V Turbine Control System. This GE Mark V I/O Board acts as the core signal transmission medium between on-site field equipment and turbine main control hardware, undertaking digital signal collection, data sorting and bus transmission work in thermal power and gas turbine control cabinets.
Product Positioning: A digital I/O signal processing and inter-board communication hub, receiving external signals and distributing internal board signals.
Associated Boards: DS200DTBA, DS200DTBB
Components: Microprocessor, Programmable Read-Only Memory (PROM), jumpers, and test points.
🚀Function & Features
- The GE DS200TCDAH1B features an onboard microprocessor and multiple PROM modules. It also provides local logic processing and data caching capabilities.
- The GE DS200TCDAH1B has two 50-pin high-density connectors (IDs: JQ and JR) that connect to internal boards such as the driver protection board (DS200DTBA, DS200DTBB) via ribbon cables.
- The GE DS200TCDAH1B has eight jumpers (JP1-JP8) for configuring board operating parameters, addresses, and function options.
- Field Digital Signal Acquisition and Output: The GE DS200TCDAH1B provides 32 digital input channels and 32 digital output channels, covering mainstream digital signal collection and control output demands of turbine auxiliary equipment. The board collects switching state signals from on-site turbine equipment and converts analog field signals into identifiable digital data for the main control system.
- IONET System Bus Data Interaction : This GE Speedtronic Mark V board applies the IONET system bus protocol to realize stable data interaction with the turbine main control unit. All collected field digital signals are transmitted to the main control board through the onboard bus circuit, while control commands issued by the system are forwarded to field equipment via the I/O board. This closed-loop data transmission ensures the synchronization and accuracy of turbine system operation data.
Specifications
|
Category |
Details |
|
Product Model |
DS200TCDAH1B |
|
System |
Mark V |
|
Product Type
|
Turbine Digital Input & Output Interface Board
|
|
Related Products |
DS200TCDAH1BGD DS200TCDAH1BHF DS200TCDAH1BHD DS200TCDAH1BHE DS200TCDAH1BJE |
|
Identification Interfaces |
2 3-pin connectors |
|
Configuration Jumpers |
8 jumpers |
|
Input Rated Voltage
|
24VDC
|
|
Signal Sampling Frequency
|
100Hz
|
|
Bus Transmission Speed
|
1.5Mbps IONET Bus Communication Rate
|
|
Channel Isolation Voltage
|
500V Channel-to-Channel Isolation
|
|
Onboard Flash Memory
|
256KB Program Storage Capacity
|
|
Operating Vibration Tolerance
|
3g Continuous Vibration Resistance
|
|
Dimensions |
• Length: 20.34 cm |
|
HS Code
|
8538900000
|
|
Weight |
0.58 kg |
Questions & Answers
💡 FAQ
Q: What is GE DS200TCDAH1B used for?
A: GE DS200TCDAH1B is a Digital I/O Board for Speedtronic Mark V turbine control systems, responsible for field digital signal acquisition, data transmission and control output of turbine equipment.
Q: How many signal channels does DS200TCDAH1B support?
A: The board is configured with 32 digital input channels and 32 digital output channels, meeting the conventional signal interaction demands of Mark V turbine units.
Q: What is the brand?
A: GE(General Electric)
Q: What is the type?
A: Digital I/O Board
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
