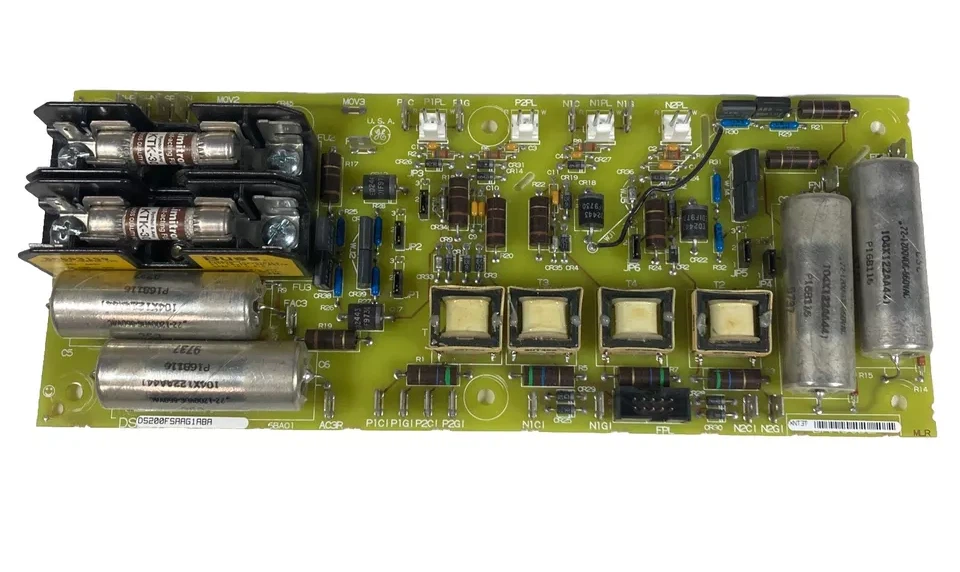

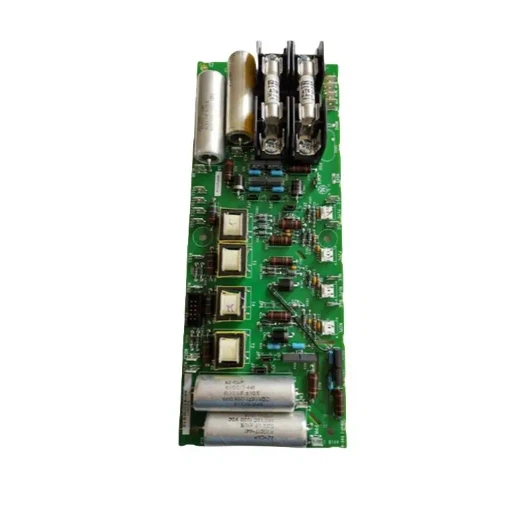

GE DS200FSAAG1ABA Field Supply Gate Amplifier Board
Overview
The DS200FSAAG1ABA is a Field Supply Gate Amplifier Board (FSGA) launched by General Electric (GE) in the United States, belonging to the Drive Control series. The core function of the board is to drive four silicon-controlled rectifiers (SCRs) through phase control, and the board also supports jumper configuration to enable the NRX protection function when excitation abnormalities occur in non-reversible plug (NRP) applications.
🚀Function & Features
- Precise Excitation and SCR Control: The GE DS200FSAAG1ABA can control the firing phase of four silicon-controlled rectifiers (SCRs), providing an adjustable power supply for the excitation system. The module supports both NRP (forward rotation) and NRX (reverse rotation) operating modes.
- Dual Fast-Blow Fuses: The GE DS200FSAAG1ABA includes two onboard 600 V/30 A Limitron fast-blow fuses, providing protection against overcurrent and voltage spikes in the field.
- SCR Control Capability: The GE DS200FSAAG1ABA can independently control the P2 and N2 SCRs, enabling independent conduction when anode voltage is positive and regulating the excitation circuit.
Specifications
|
Category |
Parameter |
Details |
| Part Number | GE | Mark V DS200FSAAG1ABA |
|
Power Components |
SCR Count |
4 |
|
Fuse Specification |
2 × Limitron fast-acting fuses, 30 A |
|
|
Connectors |
Terminal Connector |
10-pin FPL terminal connector |
|
Operation |
Operating Mode |
NRX mode only (NRP mode not supported) |
|
Field Supply Protection |
Supports up to 24 A field supply current |
|
|
Configuration |
Jumper Settings |
5 jumpers (factory-preset, DO NOT modify) |
|
Physical |
Board Dimensions |
198 × 149 × 24.88 mm |
Questions & Answers
💡 FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Field Supply Gate Amplifier Board
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
why choose us?
Choosing to procure the DS200FSAAG1ABA from us ensures guidance for verifying NRP/NRX jumper configurations on site. The supplied boards have capacitors in good condition and fuses free from moisture or aging. For FSA-type drive boards, testing continuity with a multimeter is not sufficient. The pulse waveform delivered to SCR gates must be sharp and clean, ensuring that the excitation cabinet does not generate false Over Excitation alarms during rainy seasons due to moisture-induced tracking.
