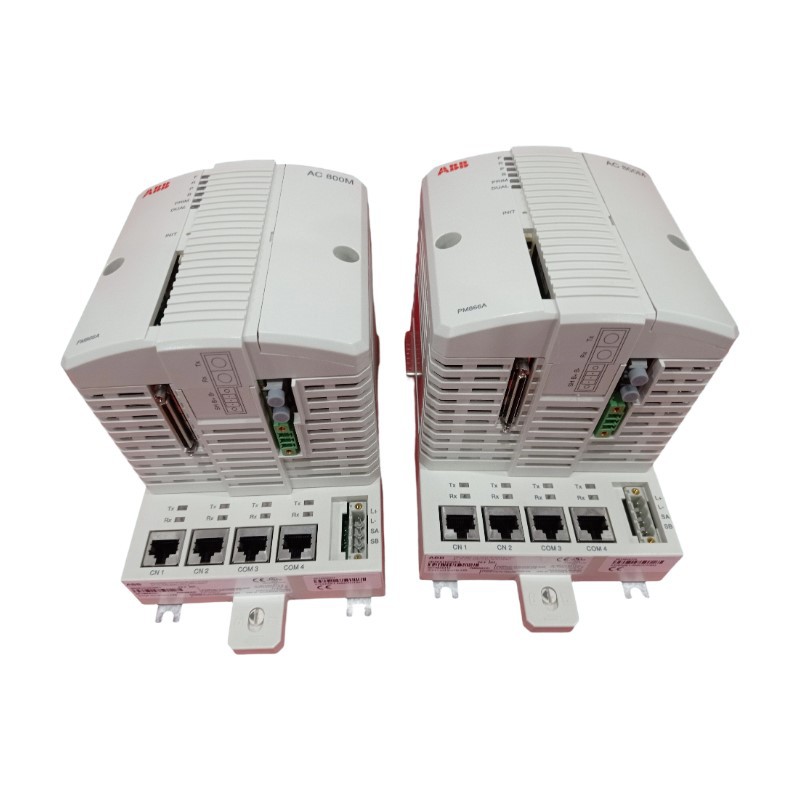

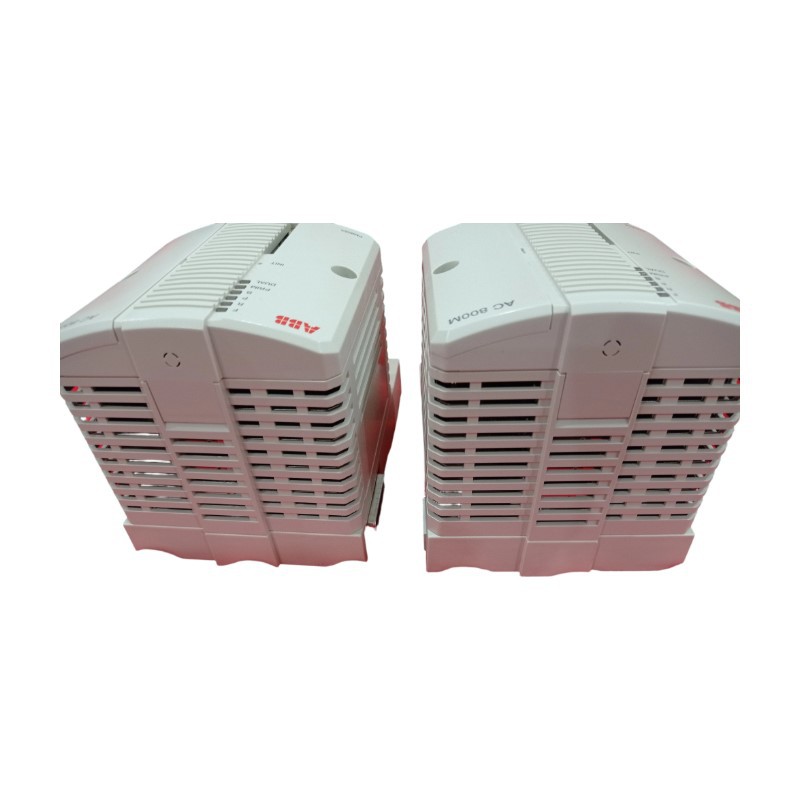

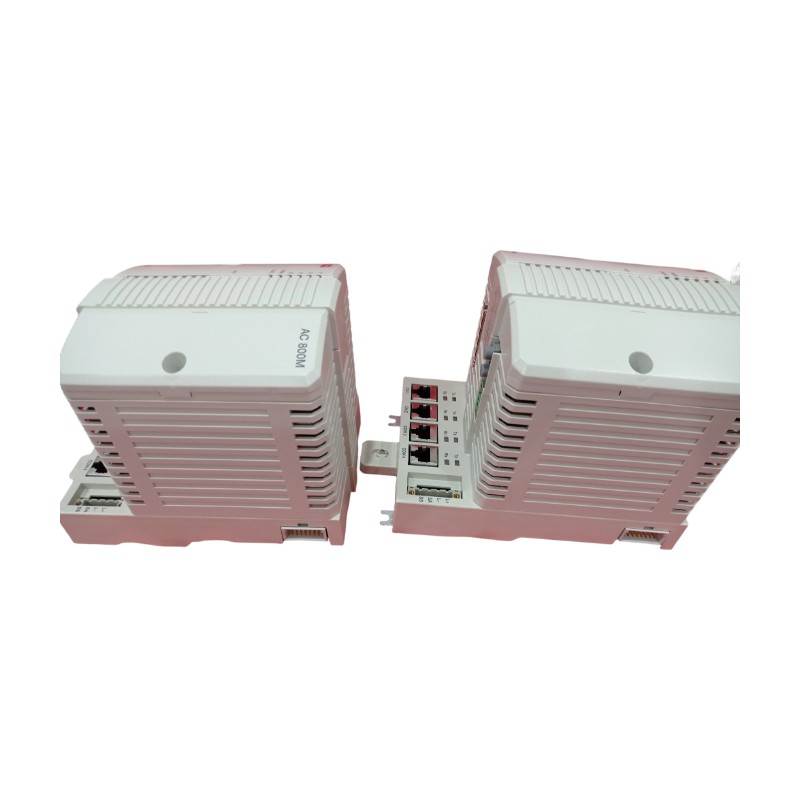

ABB PM866AK01 Processor Unit
Product Core Positioning

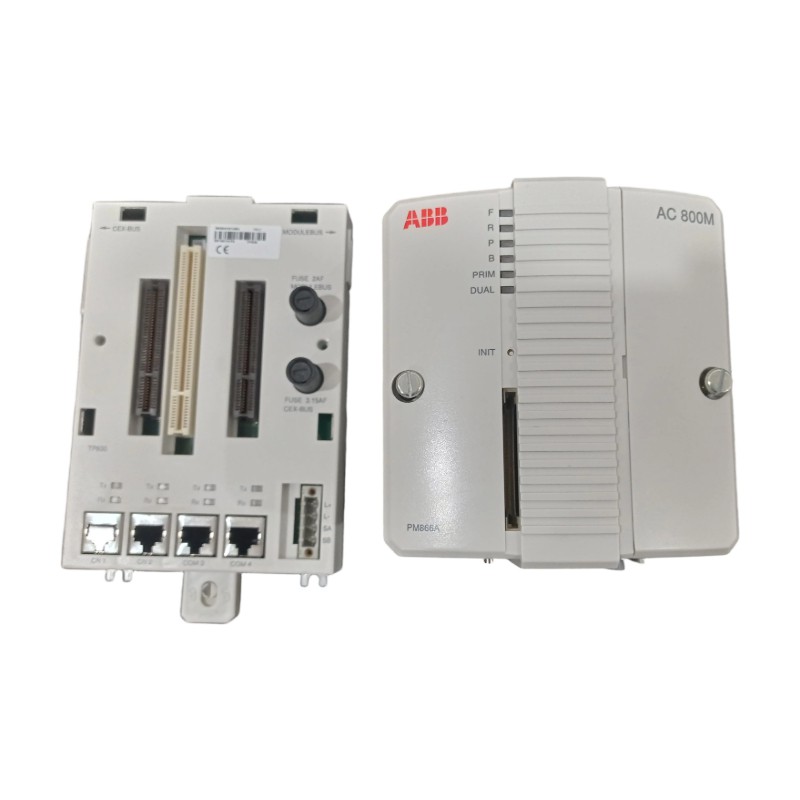

The ABB PM866AK01 (3BSE076939R1) is a CPU board for the AC 800M series controllers. The board integrates a microprocessor, RAM memory, a real-time clock, LED indicators, an INIT button, and a CompactFlash interface, providing core computation and data storage capabilities for the control system.
| Serial Port | Type / Isolation | Baud Rate | Flow Control | Purpose / Notes |
|---|---|---|---|---|
| COM3 | RS-232C, non-optically isolated | 75–19,200 | RTS/CTS hardware | Maintenance tools or debugging terminals |
| COM4 | RS-232C, optically isolated | Fixed 9,600 | None | Dedicated to configuration tool connections; enhanced interference immunity |
Conclusion
The ABB PM866AK01 processor unit represents more than a simple hardware iteration, embodying a system-oriented design tailored for control scenarios. The balance among redundancy mechanisms, communication integration, expandability, and engineering convenience reflects the evolution of industrial controllers from "functional implementation" toward "system perfection." For automation projects that require high continuity and low maintenance costs, the PM866AK01 provides a technically compelling option worthy of detailed evaluation.
