ICS Triplex T8292 Power Distribution Unit
Overview

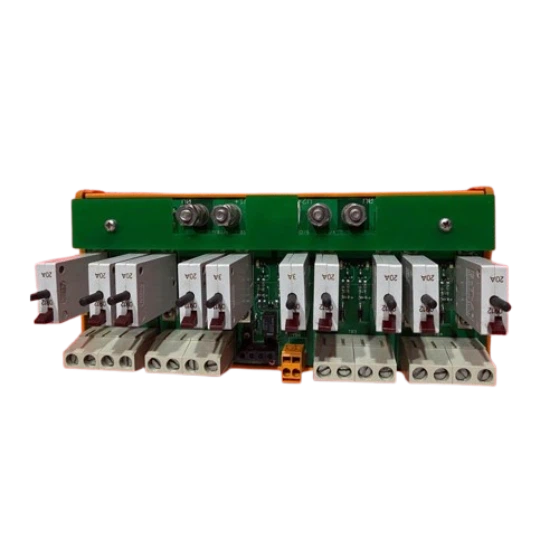

ICS Triplex T8292 is a dual, five-channel Trusted® power distribution unit equipped with miniature circuit breakers (MCBs) for N+1 or 100% redundant 24V DC power distribution applications. The unit provides local LED indication of the "tripped" status of individual MCBs via a monitoring circuit and a common alarm signaling output via relay contacts.
🚀Function & Features
- Four dual 24 VDC, 20 A MCB protection outputs: The T8292 can be connected directly to a Trusted controller/expansion chassis or as upstream protection for a Trusted 15-way fuse distribution unit (T8293).
- One dual 24 VDC, 3 A MCB protection output: The T8292 can be used with Trusted fan trays or other low-power devices.
- 100% Redundancy: The T8292 features fully independent dual power supply paths, requiring manual jumper removal and separate wiring (24V-1 and 24V-2 require separate power supplies).
- Status Monitoring: Each MCB status LED indicates (red = tripped). Voltage-free relay contacts (normally open/normally closed selectable) provide global alarm signals and can be connected to external monitoring systems.
Specifications
|
Category |
Details |
| Model | T8292 |
|
Electrical |
|
|
Input Current |
60 A max |
|
MCB Outputs |
4-off, 2x24 V and 2x0 V at 20 A; 1-off, 1x24 V and 1x0 V at 3 A |
|
Common Alarm Output |
1-off N/O volt-free contact - closed in the healthy state |
|
Connectors |
LU10.16 screw clamp terminal; FCI Qikmate SMS series connector |
|
Conductor Clamping Range (LU10.16) |
0.5 mm² to 16 mm² |
|
Max Switching Voltage |
60 Vdc or 125 Vac |
|
Physical Dimensions & Weight |
|
|
Height |
108 mm (4.2 in) |
|
Width |
240 mm (9.4 in) |
|
Depth |
109 mm (4.3 in) |
|
Weight |
823 g (1.8 lb) |
