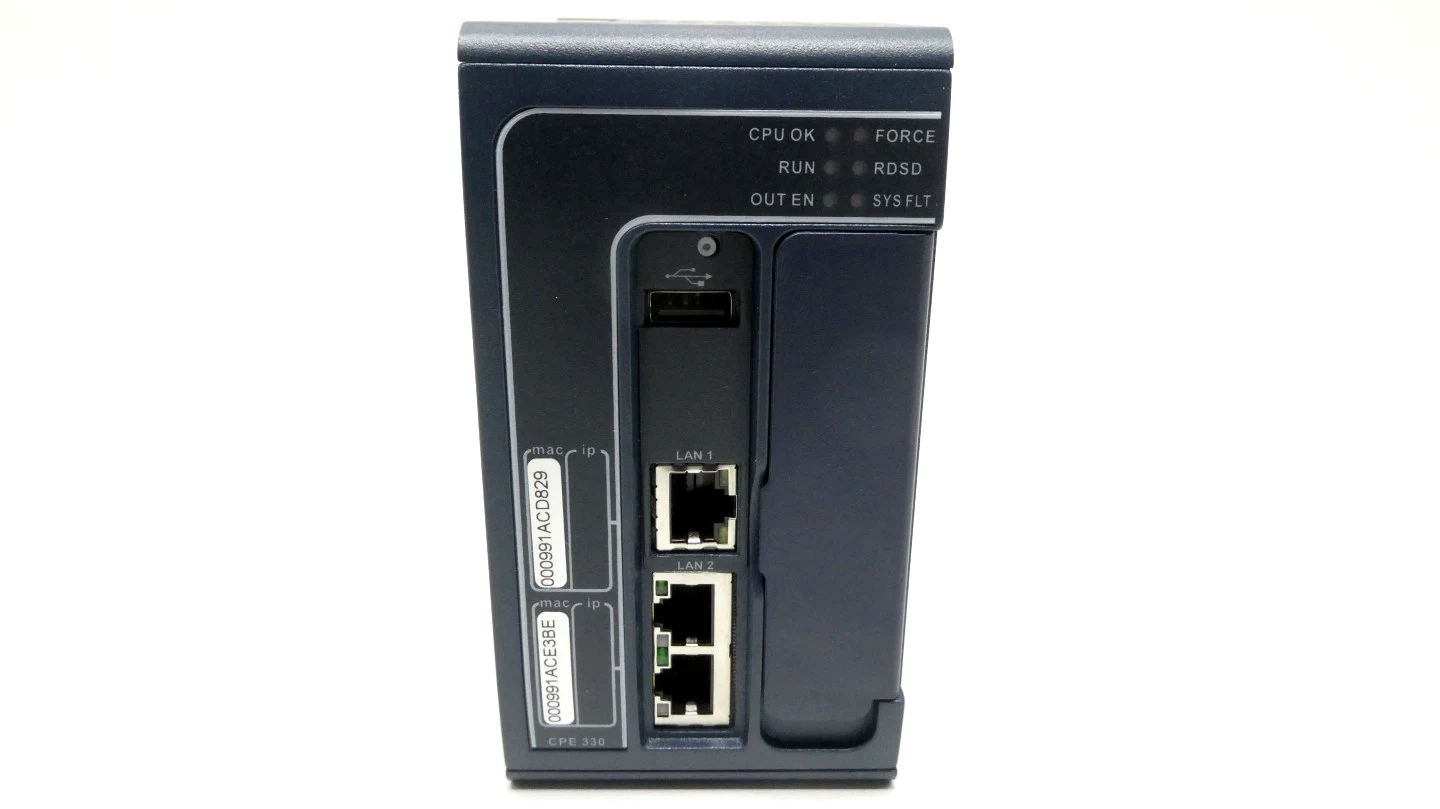

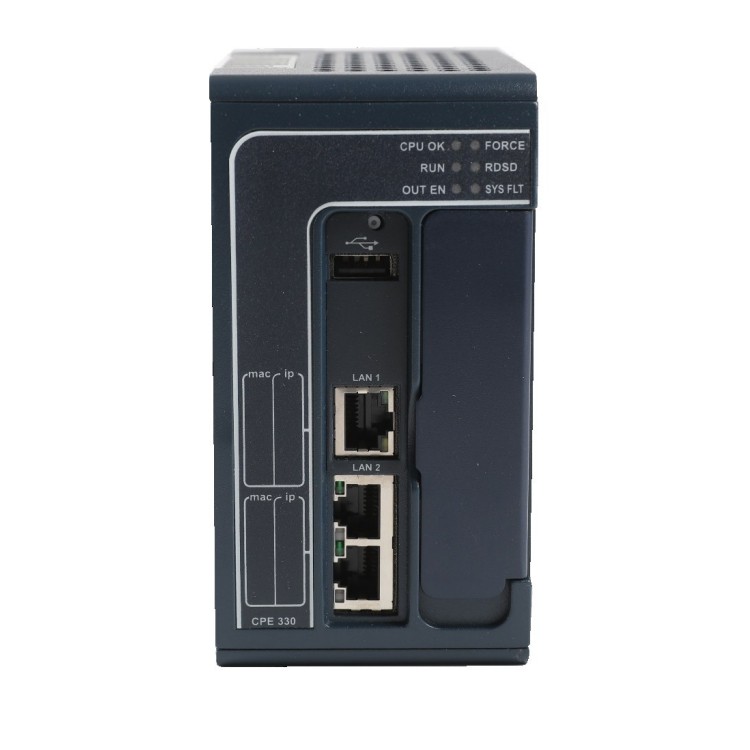

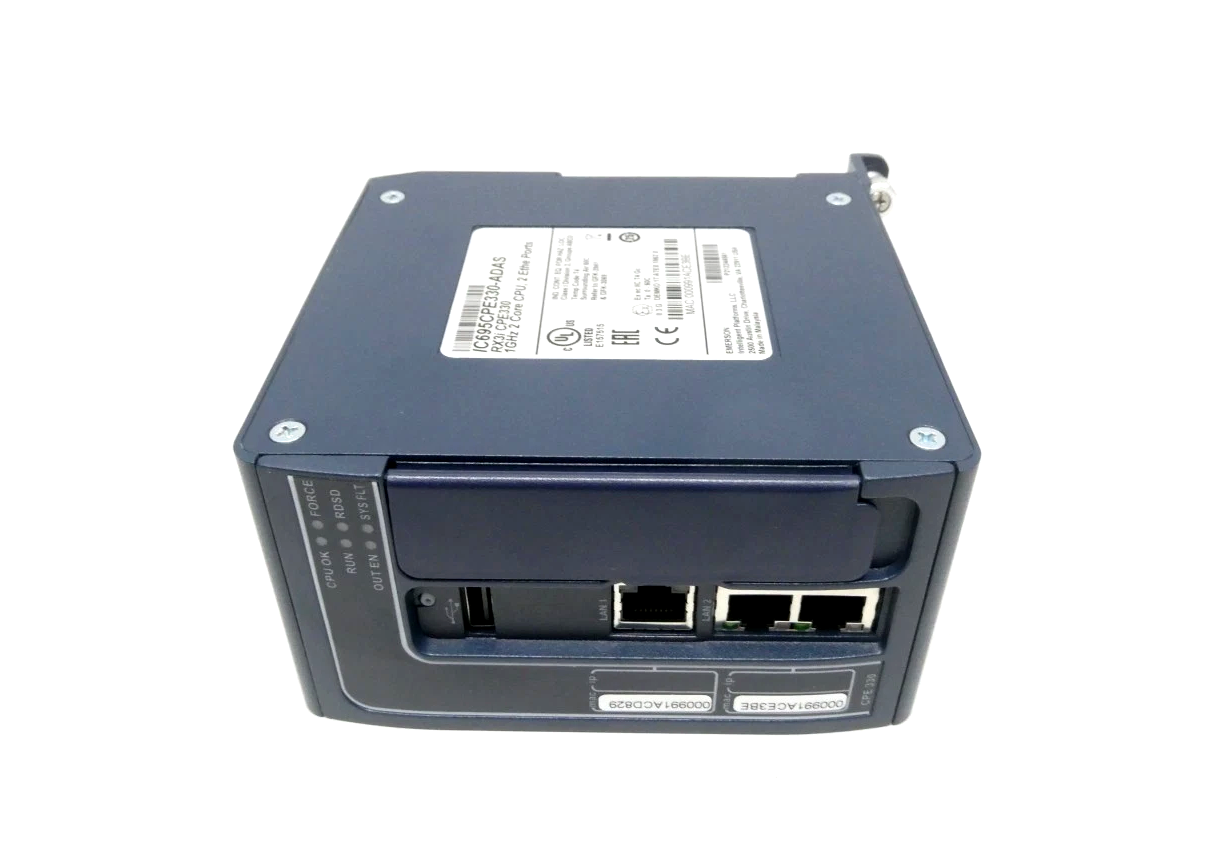

GE IC695CPE330 Controller CPU
Overview
GE IC695CPE330 controller CPU (PACSystems™ RX3i CPE330 CPU) is a programmable controller CPU in the RX3i series. It features 64MB of internal program memory and two independent Ethernet interfaces for multi-layer communication and large-scale data synchronization.
This controller is programmed and configured via Ethernet using PAC Machine Edition™ (PME) software. Installed in an RX3i mainframe, it supports all RX3i I/O and intelligent option modules, supporting up to 32K I/O points.
🚀Function & Features
- The IC695CPE330 supports PME's new GUI management interface for OPC UA configuration integration (start, stop, restart, clear, and configure modes).
- The IC695CPE330 supports RX3i redundant CPUs with PROFINET® I/O, using either embedded PROFINET or the rack-mounted IC695PNC001 PROFINET controller.
- The IC695CPE330 can be configured to display the serial number and date code in PME device details.
- The IC695CPE330 can be configured to support Coordinated Universal Time (UTC) and Daylight Saving Time (DST).
Specifications
|
Parameter |
Details |
|
Part Number |
IC695CPE330 |
|
Memory |
64MB |
|
I/O Capacity |
Max supports 32,000 I/O points |
|
Reference Table Capacity |
- Discrete: 32K bits (%I/%Q) |
|
Max Supported I/O Points
|
32768 Discrete & Analog I/O Points
|
|
Ethernet Port
|
2 Independent 10/100/1000Mbps Gigabit RJ45 Ports
|
|
Operating Temperature Range
|
-20 ℃ ~ 70 ℃
|
|
Working Humidity
|
5% ~ 95% Non-Condensing
|
|
Program Block Limit |
Up to 768 program blocks, max 128KB per block |
|
Firmware Update |
Remotely updated via PME software, supports encryption and security verification |
|
HS Code
|
85371011
|
|
Dimension
|
125 mm × 95 mm × 35 mm
|
|
Weight |
0.6 kg |
Model Comparison
|
Model
|
Processor & Memory
|
Ethernet Port
|
Applicable Scenario
|
|
IC695CPE330
|
1GHz Dual-Core, 64MB Memory
|
Dual Gigabit Ports
|
Medium & large automation systems, redundant network configuration, complex program operation
|
|
IC695CPE310
|
Single-Core Processor, Smaller Memory
|
Single Ethernet Port
|
Small-scale simple control systems with low data transmission demands
|
|
IC695CPE305
|
Basic Frequency Processor, Limited Storage
|
Single Ordinary Network Port
|
Basic industrial control scenarios with simple logic programs
|
Questions & Answers
💡 FAQ
Q: What is GE IC695CPE330 used for?
A: The GE IC695CPE330 is a high-performance controller CPU, serving as the core processing unit for GE PACSystems RX3i PLC systems to execute control programs, process data and manage network communication.
Q: What processor and memory does IC695CPE330 adopt?
A: It is equipped with a 1GHz dual-core microprocessor and 64MB onboard program memory for complex program operation and data storage.
Q: What is the brand?
A: GE
Q: What is the type?
A: Controller CPU
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
