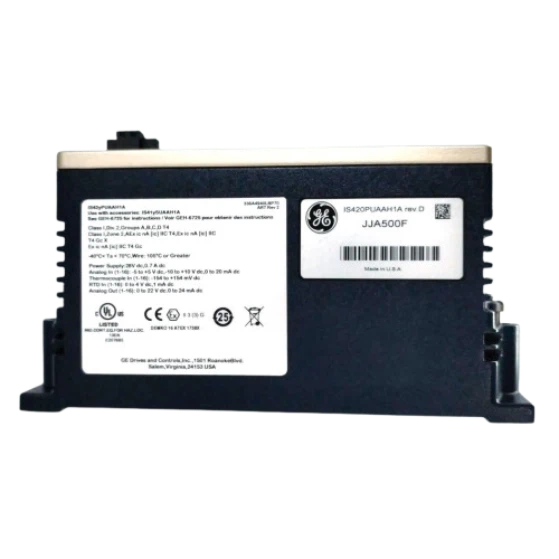

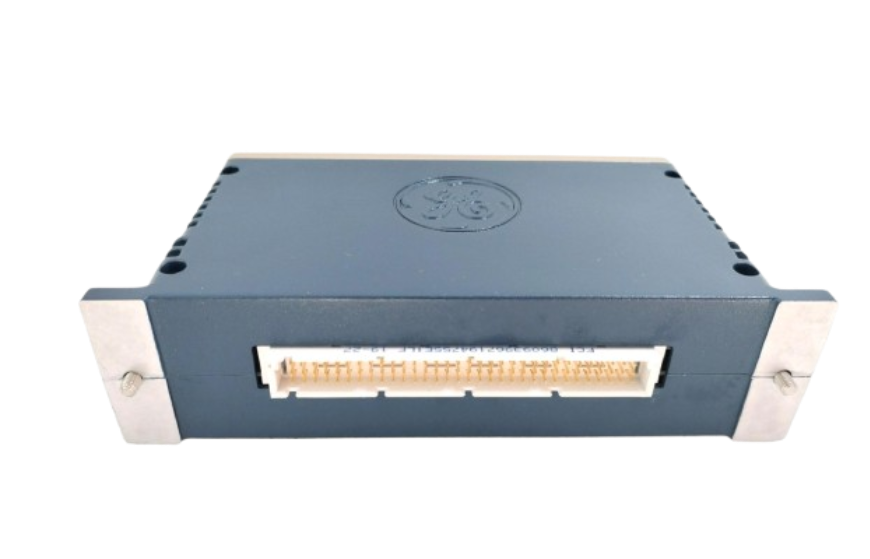

GE IS420PUAAH1A Universal I/O Pack

Overview

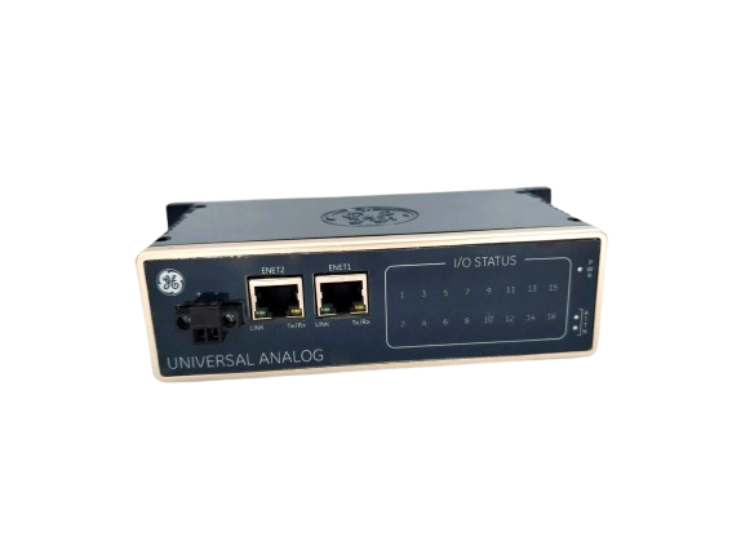

The IS420PUAAH1A is a universal I/O package for GE Mark VIe control systems. As a 16-channel universal I/O module, it reduces the space occupied by the control cabinet and supports all signal types. It also supports mixed signal processing such as thermocouples, RTDs, analog and digital quantities. RJ-45 dual Ethernet (IONet) supports network redundancy.

🚀Function & Features

Channel-level independent wiring: IS420PUAAH1A pack black partition design supports single-channel debugging without powering off the entire board.

Automatic reconstruction: IS420PUAAH1A automatically restores configuration after replacing the module (ControlST software support required).

Full signal type support:

Temperature signal: thermocouple (TC), RTD
Analog: ±5/10V, 4-20mA (with HART protocol)
Digital: dry/wet contact input, pulse accumulation

Specifications

Category	Specification Details
Basic Performance	- Scan Cycle: 5ms (standard) - Measurement Accuracy: ±0.1% FS
Channel Configuration	16 channels (3 terminals per group), Simplex non-redundant
Communication Protocol	IONet Ethernet, Frame Rate: 10ms
Power Consumption	Quiescent: 8.1W + Dynamic per channel: • TC/RTD/Digital: 0.02W/channel • 4-20mA Input: 0.04W/channel • Current Output: ≤0.68W/channel (depends on loop impedance)

Key notes:

Clear distinction between static and dynamic power consumption

Precise technical terminology (e.g., "Simplex non-redundant")

Standardized units and symbols

Logical grouping of related parameters

Consistent formatting for multi-line items

⚠️⚡ HIGH-VOLTAGE DANGER ⚡⚠️: The red-labeled terminals of the module are high-voltage isolation areas. Live operation is strictly prohibited!
