Overview：

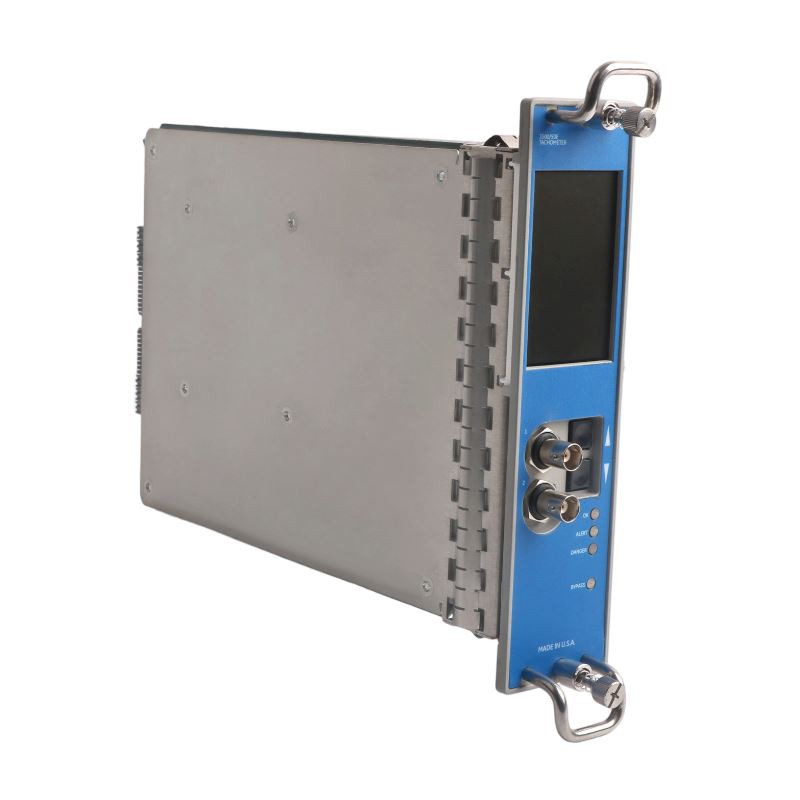

Bently Nevada 3500/50E Tachometer Module

Bently Nevada 3500/50E tachometer module is a dual-channel module used in the 3500 monitoring system. This module is mainly used for detecting the shaft speed, rotor acceleration, and rotor rotation direction of industrial equipment, and it compares these with the user-set alarm values. When the parameters exceed the limits, an alarm is triggered, thus protecting equipment (such as turbines, compressors, fans, pumps, etc.) from overspeed, low speed, reverse rotation, and acceleration.

Note: The 3500/50E tachometer module cannot be used as part of, or as, a speed control or overspeed protection system.

Contact now

Specification：

Parameter	Details
Model Number	3500/50E
Basic Configuration	2-channel tachometer module
Input Impedance	20 kΩ
Power Consumption	4.75 watts
Transducer Compatibility	Accepts 1-2 proximity transducer signals (magnetic pickups have limitations for specific functions)

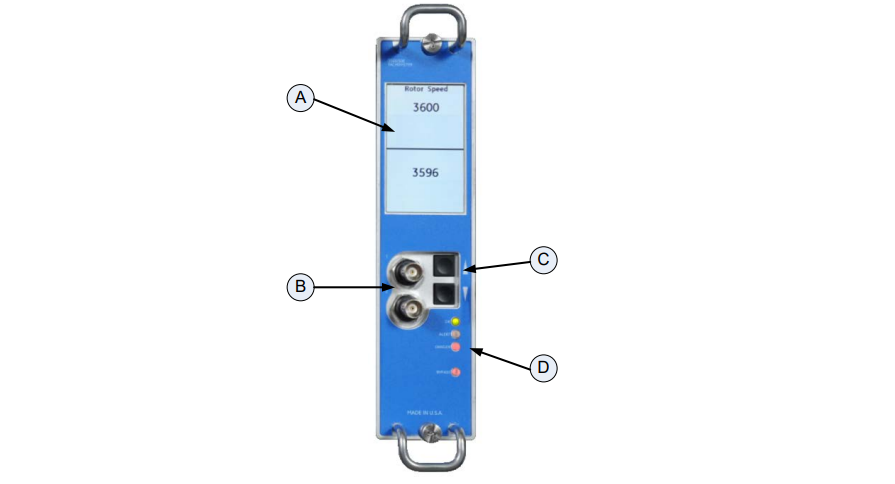

Front Panel LEDs	-OK LED: Indicates normal operation -DANGER LED: Triggers danger relay (condition detected) -ALERT LED: Triggers alert relay (condition detected) -Bypass LED: Indicates Bypass Mode
Dimensions (H x W x D)	228 mm (8.97 in) × 50 mm (1.98 in) × 289 mm (11.39 in)
Weight	1.25 kg (2.75 lb)

Function & Features：

Bently Nevada 3500/50E Tachometer Module

Dual-channel multifunctional monitoring: The 3500/50E module can independently process two separate speed input signals, providing redundancy or monitoring of two different shaft systems, and offering four configurable operating modes.

Speed measurement range: The 3500/50E supports signal recognition from 0.0039 to 255 events per revolution, with a maximum full-scale speed of up to 99,999 RPM.

Low-speed measurement capability: For proximity probes, the 3500/50E can measure as low as 1 RPM (one pulse per revolution).
