Description

overview：

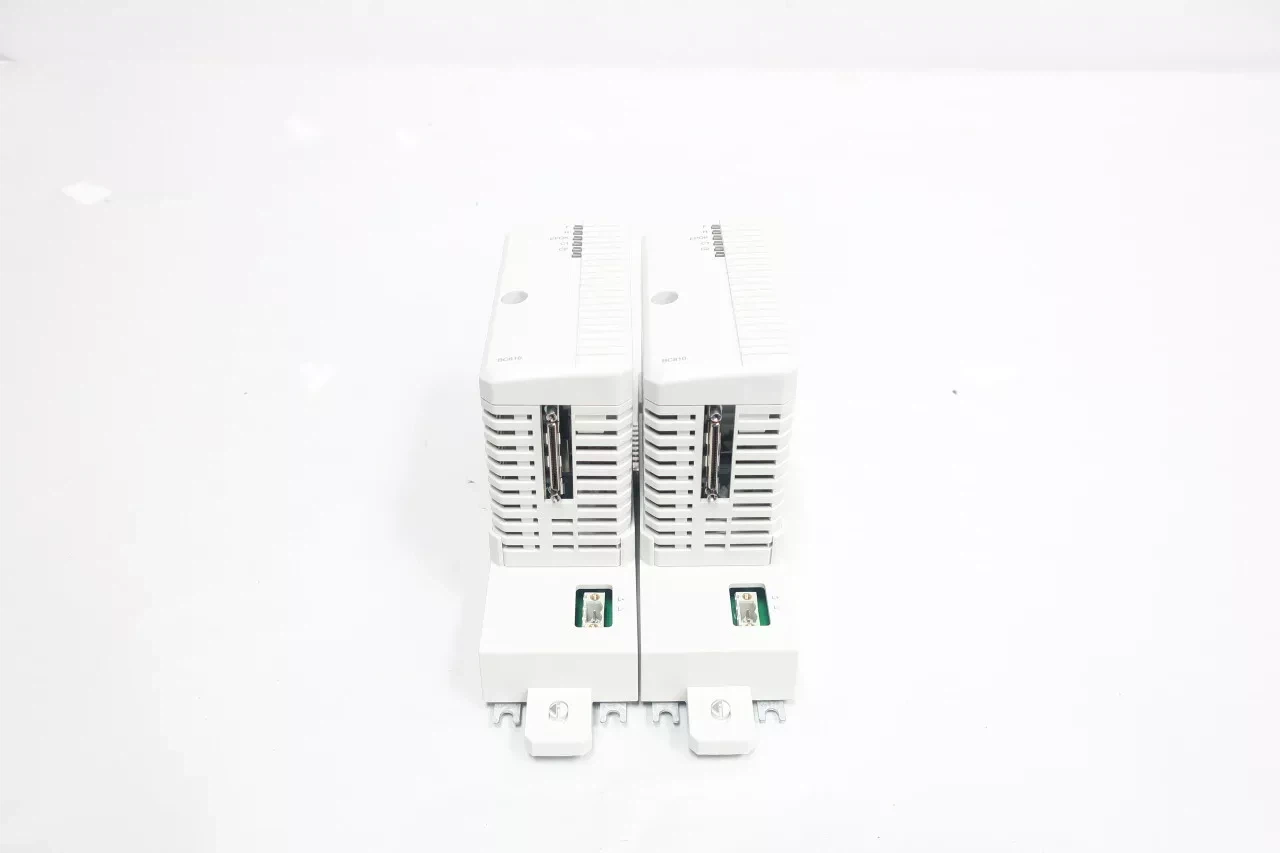

BC810K02 is a CEX bus segmentation and redundancy expansion unit for ABB AC 800M series controllers (such as PM864A, PM865, etc.), which isolates the bus fault domain and supports online replacement of key components (such as CPU hot swap). It consists of two basic parts: the base plate (TP857) and the power supply/logic board.

The base plate is equipped with a CEX-bus connector and an external power connector, and is grounded to the DIN rail through the metal parts of the shell. It also has an external power voting diode and a fuse; the power supply/logic board contains a + 3.3V converter, logic circuit, CEX-bus interconnection driver, and interconnection cable connector. It can be used with multiple models such as PM857, PM861A, PM862, etc.

Fuctions & Features:

CEX bus segmentation: Divides the bus into independent segments to isolate the scope of fault impact.

Parameter	Value
Power supply	Inputs designated L+ and L - 24 V nominal, variation between 19.2 V DC and 30 V DC.
Power consumption +24V typ/max	50 mA typical (70 mA max)
Power dissipation	1.2W typical
Temperature, Operating	+5 to +55°C (+41 to +131°F)
Temperature, Storage	-40 to +70°C (-40 to +158°F)
Width	59 mm
Height	185 mm
Depth	127.5 mm
Weight (including base)	1.5 kg (3.31 lbs) (BC810K02 package)

Q: What is the brand?
A: ABB

Q: What is the type?
A: CEX-bus Interconnection Unit

Q: What is the warranty period?
A: 1 year.

Q: What is the delivery time?
A:in stock

Q: Where is the shipping location?
A: Xiamen.

Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
