overview：

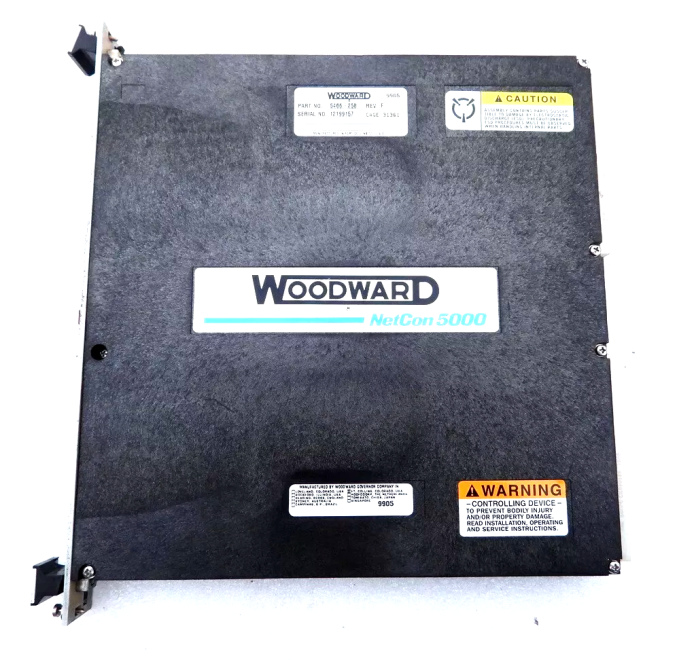

Woodward 5466-258 is a discrete input/output (I/O) module developed by Woodward. The module can be inserted into the card slot of the controller chassis and connected to the main board. The position is fixed by two screws on the upper and lower sides of the front panel. Users need to adjust the ones and tens rotary switches of the module address according to the application settings. The system supports real-time replacement of faulty nodes. The network cable must be kept connected during replacement. After the replacement is completed, the application program must be used to reset the node to restore communication with the controller module and clear the no message fault. The following is a description of the functions and features of the module:
Fuctions & Features:
- Installation and removal: The 5466-258 module adopts a slot-type design, fixed by screws, and equipped with a handle for detaching the motherboard connector, which is convenient for installation and removal operations in the chassis, reducing the difficulty and time cost of maintenance.
- Power connection: The 5466-258 input line can choose internal + 24 V connection or external 24 V power supply, which improves the applicability of the module.
- Real-time node replacement: The system supports real-time replacement of faulty nodes. During the replacement process, only the network cable needs to be kept connected, which greatly reduces the system downtime caused by module failure and ensures the continuous operation of the system.
- Convenient address setting: The 5466-258 module sets the module address through the ones and tens rotary switches. The operation is simple and intuitive, and can be quickly adjusted according to specific application requirements.
Specification
| Product Type: | Discrete I/O Module |
| External Input Voltage: | 18 to 32 Vdc |
| Power Input: | 18 to 32 Vdc |
| Power Consumption: | 6.5 Watts (at 24 Vdc) |
| Dimensions: | 200mm*160mm*20mm |
