Overview：

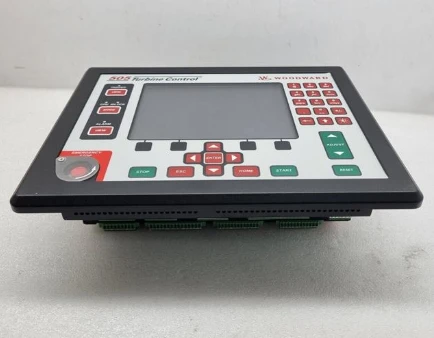

WOODWARD 8200-1301 505D Digital Governor Turbine Control
The Woodward 8200-1301 505D digital governor turbine controller is a high-pressure digital control unit specifically designed for steam and gas turbine industrial power generation systems. This Woodward 505D digital governor replaces traditional hydraulic and analog control hardware, undertaking core turbine operation functions including speed regulation, load adjustment, grid connection, and basic fault protection. It is widely used in the assembly of new turbine systems in power plants and industrial self-built power stations, as well as the retrofitting of existing control systems.
The 8200-1301 505D turbine digital governor adopts a fully digital operating architecture, featuring flexible parameter configuration and switchable multiple control modes. It establishes a complete closed-loop control with field sensors, actuators, and the upper-level DCS system, stabilizing turbine operating parameters and reducing manual operation workload during long-term field operation.
Specifications:
| Parameter | Details |
|---|---|
| Product Model |
8200-1301 (505D HV-STD) |
|
Product Name |
WOODWARD 8200-1301 505D Digital Governor Turbine Control |
|
Product Type |
Digital Turbine Speed Governor & Controller |
|
Power Supply Range |
88-264V AC / 90-150V DC |
|
Operating Temperature |
-30℃ ~ +70℃ |
|
Protection Grade |
IP20, Pollution Degree 2, Overvoltage Category 3 |
|
HS Code |
8537101190 |
| Length | 258mm |
| Width | 186mm |
| Weight | 92mm |
|
Net Weight |
6.28KG |
Function & Features：
- Multi-mode turbine control logic: The Woodward 505D digital governor integrates speed control, load control, PID regulation, and automatic synchronization. It can freely switch between stand-alone and grid-connected operation modes to adapt to different power generation needs.
- Diverse communication interfaces: Equipped with Ethernet and CANOpen communication ports, the unit supports connection to Woodward VariStroke actuators and DSLC-II power management networks. It enables data transmission and remote docking with industrial DCS systems and remote monitoring equipment.
- Onboard HMI control panel: The built-in graphical display supports multi-language switching. Field engineers can directly view real-time operating data, modify control parameters, and view fault records through the front panel without external programming equipment.
- Industrial environment adaptability: Designed to industrial protection standards, it can operate stably in low and high temperature environments. The internal circuit structure is resistant to electromagnetic interference in power plant workshops and can adapt to long-term uninterrupted operation.
Questions & Answers
💡 FAQ
Q: What is the purpose of the WOODWARD 8200-1301 505D?
A: The WOODWARD 8200-1301 505D digital governor turbine controller is a digital controller specifically designed for steam turbines and gas turbines. It is responsible for turbine speed regulation, load adjustment, grid synchronization, and system protection, and is the core control unit of industrial power generation steam turbine equipment.
Q: What are the differences between the 505D and traditional 505 governors?
A: The 8200-1301 505D adopts a fully digital architecture, with richer communication functions and configurable logic. It supports remote commissioning and data logging, and compared to traditional analog 505 governors, it has higher control accuracy and stronger anti-interference capabilities.
Q: What power supplies does the Woodward 8200-1301 support?
A:This speed controller supports a wide power input range of 88-264V AC and 90-150V DC, making it compatible with the power standards of most industrial control cabinets and preventing equipment downtime due to voltage fluctuations.
Q: Does this speed controller support automatic grid connection?
A: Built-in synchronization logic enables automatic frequency and phase matching, supporting safe and stable grid connection of steam turbine generator sets.
Q: What is the payment method?
A: T/T
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
