Overview：

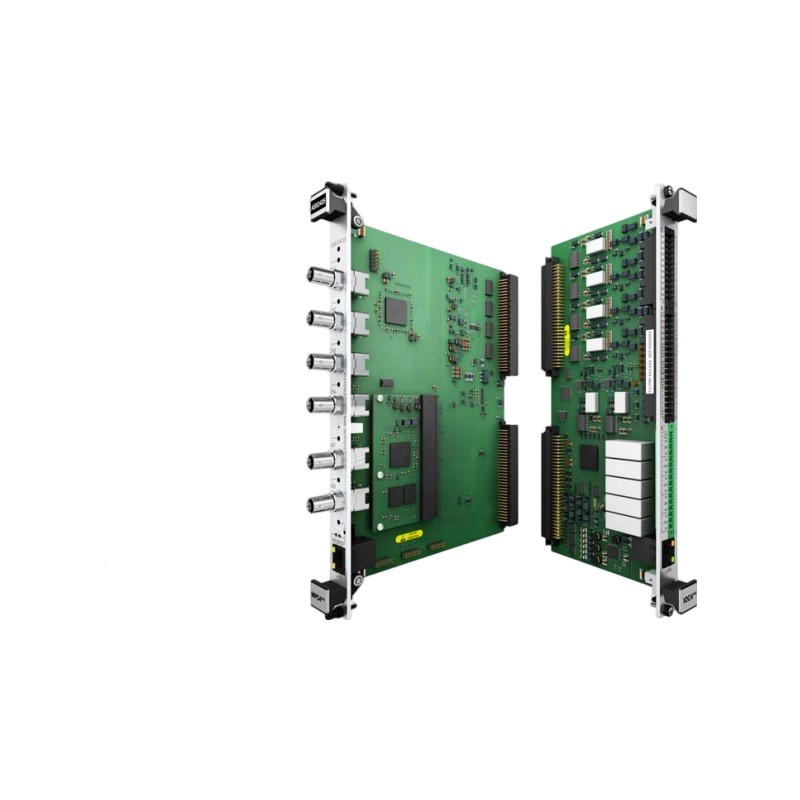

The IOC4MK2 600-043 is a mechanical protection and equipment status monitoring module for the VM600Mk2 rack-mounted monitoring system. It must be paired with the MPC4Mk2 module and is compatible with the standard ABE04x rack, the slim ABE056 rack, and subsequent upgraded VM600 racks. The module is available in both standard and SIL safety versions, featuring a single-width design, front-to-back staggered rack installation, and backplane direct communication. It supports software configuration and hot-swapping for the standard version, fully complies with API 670 industry standards, and is widely used for monitoring critical parameters such as vibration and rotational speed in industrial machinery, as well as for safety interlock protection.
Specifications：
| Parameter | Details |
|---|---|
| Product Model | IOC4MK2 600-043 |
| Number of threshold levels | Up to 2 configurable threshold levels (2 DC regions) |
| Analogue to digital converter (ADC) | 24 bit |
| Dynamic range | ≥80 dB |
| Frequency bandwidth | 0 Hz to 20 kHz |
| Time delay | Up to 60 s in steps of 100 ms |
| Hysteresis | Up to 20 % of the alarm level (physical quantity) |
Function & Features：
Hardware Channel Configuration
Equipped with 4 dynamic monitoring channels and 2 auxiliary channels. The auxiliary channels can be configured as tachometer inputs or DC inputs.
Safety and System Interlock
Features system safety circuits capable of driving all system relays to a safe state; supports safety-compliant designs.
Multi-type Signal Outputs
Digital outputs: 4 user-configurable alarm relays + 1 dedicated status relay.
Analog outputs: 4 analog outputs configurable as 4–20 mA or 0–10 V signal standards.
