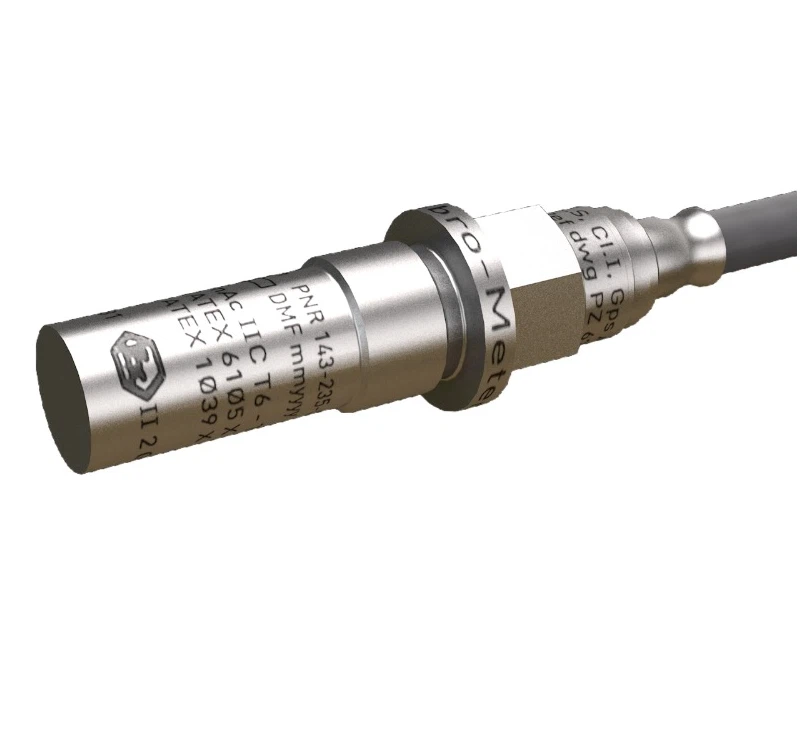

CP237 143-237-000-012 Piezoelectric Pressure Transducer
Overview
The CP237 143-237-000-012 piezoelectric pressure sensor is made of artificial piezoelectric material and is suitable for long-term monitoring or development test scenarios.

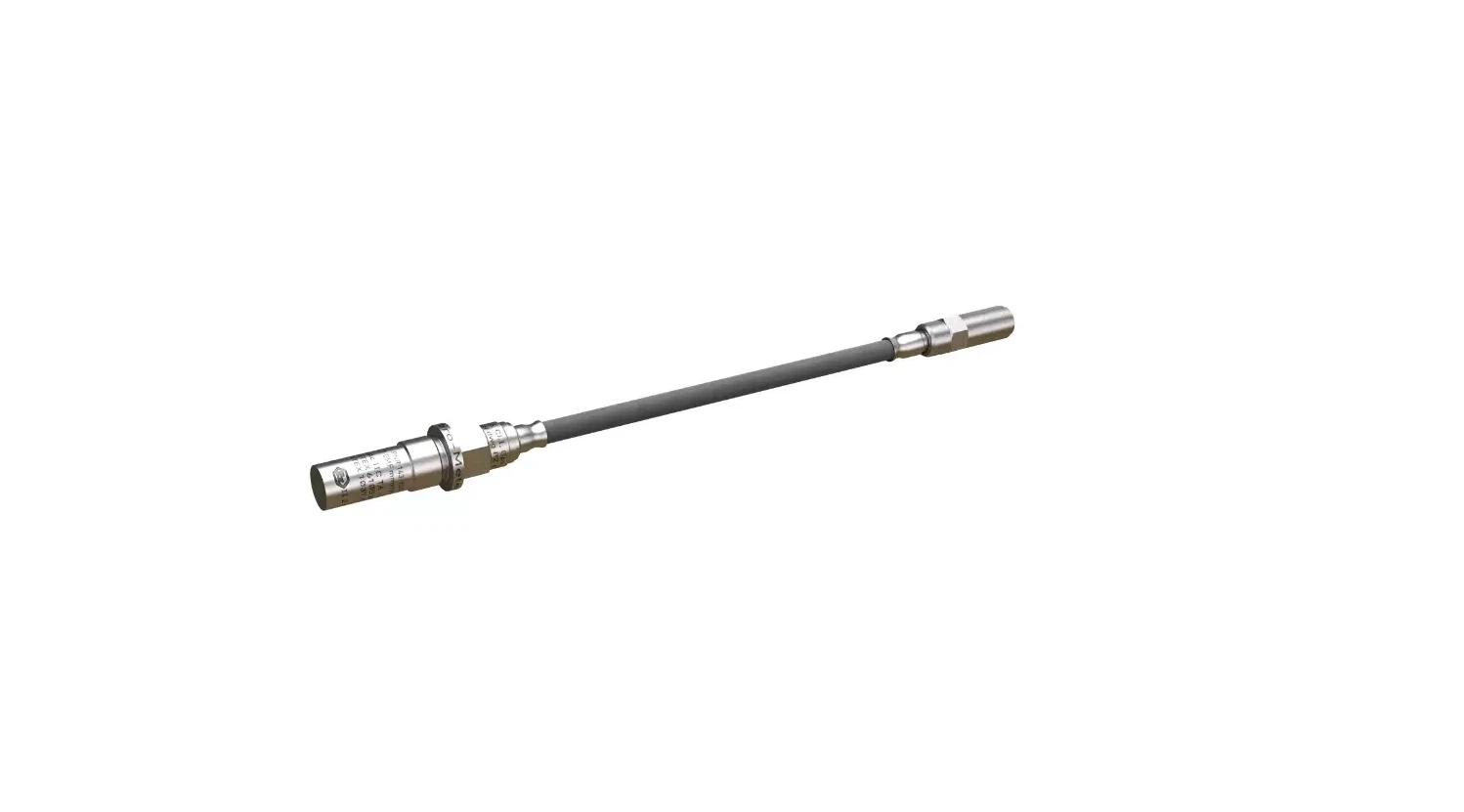

Its special design minimizes sensitivity to acceleration and is equipped with an integrated mineral insulated (MI) two-core cable and terminated with a high-temperature connector. The sensor is designed specifically for gas turbines and can be safely used in potentially explosive environments.
Function&Features：
CP237 143-237-000-012 Core strengths
Acceleration compensation
CP237 reduces acceleration interference through structural design and can measure measurement accuracy in vibration environment.
Temperature range
CP237 has an operating temperature range of −55°C to 520°C, which is suitable for extreme high and low temperature environments.
Frequency response
The frequency response range is 2 to 10000 Hz, which can capture wide-band pressure signals and is suitable for dynamic and static pressure measurement.
Lightweight Design
The CP237 sensor head is only 50 grams, and the MI cable weighs 140 grams/meter.
Specifications：
|
Parameter |
Details |
|
Sensitivity (at 2 Hz) |
750 pC/bar (52 pC/psi) min. |
|
Static pressure (on sensing head) |
0.1 to 20 bar |
|
Dynamic measuring range (random) |
0.00005 to 5 bar nom. |
|
Overload capacity (spikes) |
Up to 100 bar (1450 psi) |
|
Linearity |
(static + dynamic components) ≤±1% over dynamic measuring range |
|
Acceleration sensitivity |
- 10 Hz to 2.5 kHz: ≤0.15 pC/g (0.0002 bar/g, ≤0.0029 psi/g) |
|
Resonant frequency |
>55 kHz (along sensitive axis) |
|
Frequency response |
2 to 10000 Hz ±5% (lower cut - off frequency is determined by the charge converter used) |
|
Capacitance (nominal) |
- Pole to pole: 700 pF for transducer + 200pF/m for cable |
|
Internal insulation resistance |
Min. 10⁹ Ω (5×10⁴ Ω at 520°C) |
|
Mounting torque |
- Nominally 5.5 N·m (corresponding to qualification of product). |
|
Note |

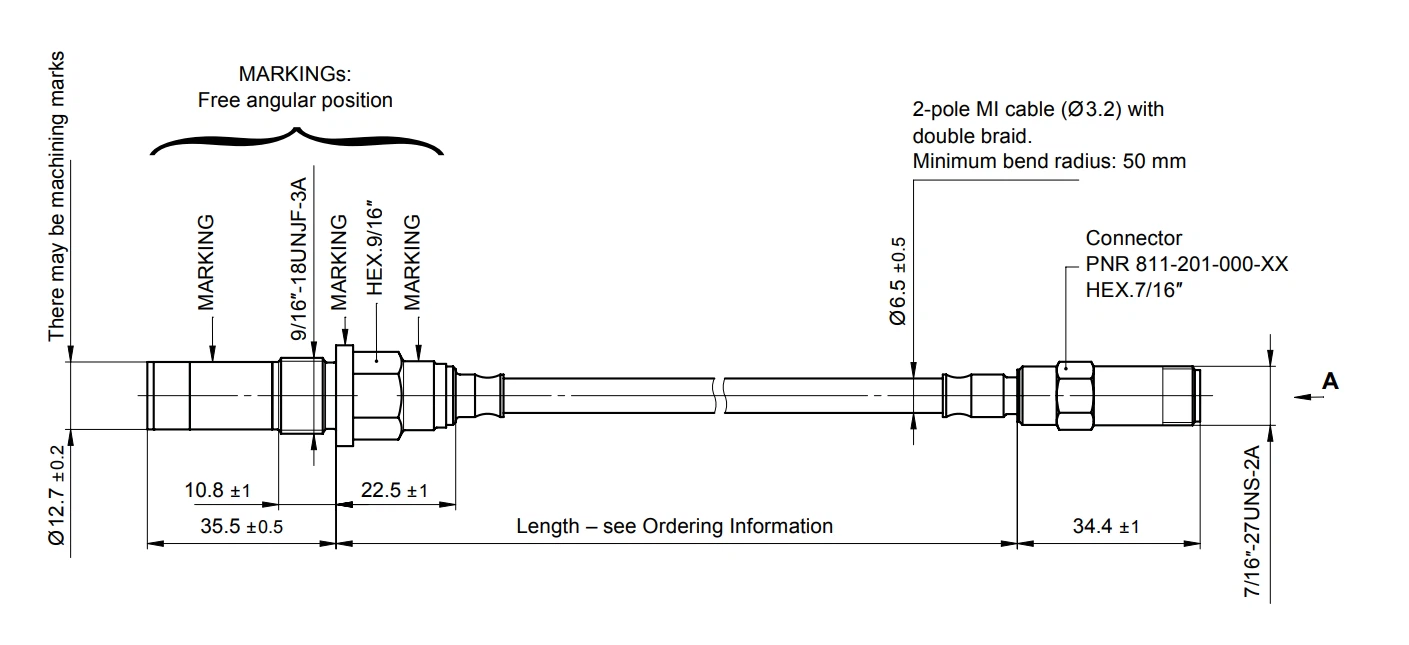

A hole (Ø1) is provided for locking wire. See Mechanical drawings. |
