CA306 144-306-000-321 Piezoelectric Accelerometer
Overview

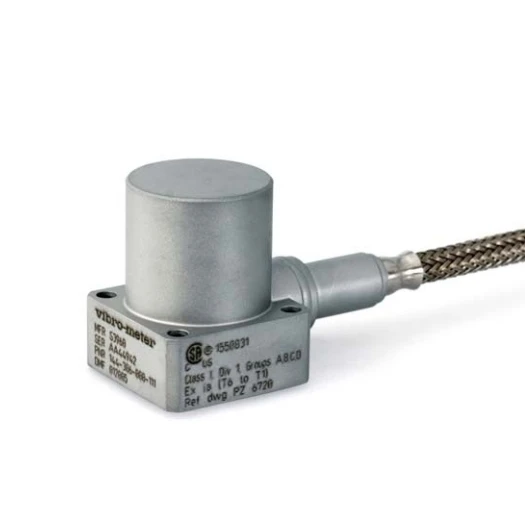

CA306 144-306-000-321 piezoelectric accelerometer is a high temperature accelerometer of the CA306 series, designed for gas turbine applications. The housing is a sealed welded structure of Inconel 600 high temperature alloy, which is corrosion and oxidation resistant. It is suitable for environments such as extreme high temperature and high vibration, and can also be safely used in potentially explosive environments.
🚀Function & Features
- Housing: CA306 144-306-000-321 features a fully welded Inconel 600 super alloy housing with sealed connectors.
- Cable: CA306 144-306-000-321 has a built-in mineral insulated (MI) stainless steel braided cable to maintain signal integrity even in strong electromagnetic interference or high vibration environments.
- Mechanical Optimization: CA306 144-306-000-321 has improved lateral frequency resonance to reduce cross-axis sensitivity and improve measurement accuracy. 4-hole mounting (ARINC 554 compliant)
Specifications
| Parameter | Value |
| Series | CA306 |
| Odering number | 144-306-000-321 |
| Sensitivity (at 120 Hz) | 50 pC/g ± 5% |
| Dynamic measuring range (random) | 0.01 g to 100 g peak |
| Overload capacity (spikes) | Up to 200 g peak |
| Linearity | ±1% over dynamic measuring range |
| Transverse sensitivity | <5% |
| Resonant frequency | >15 kHz |
| Frequency response (typical) | ± 5% between 5 and 3 000 Hz (lower electronics used) |
| Internal insulation resistance | Min. 10⁹ Ω pole - ground Min. 10⁹ Ω pole - pole |
