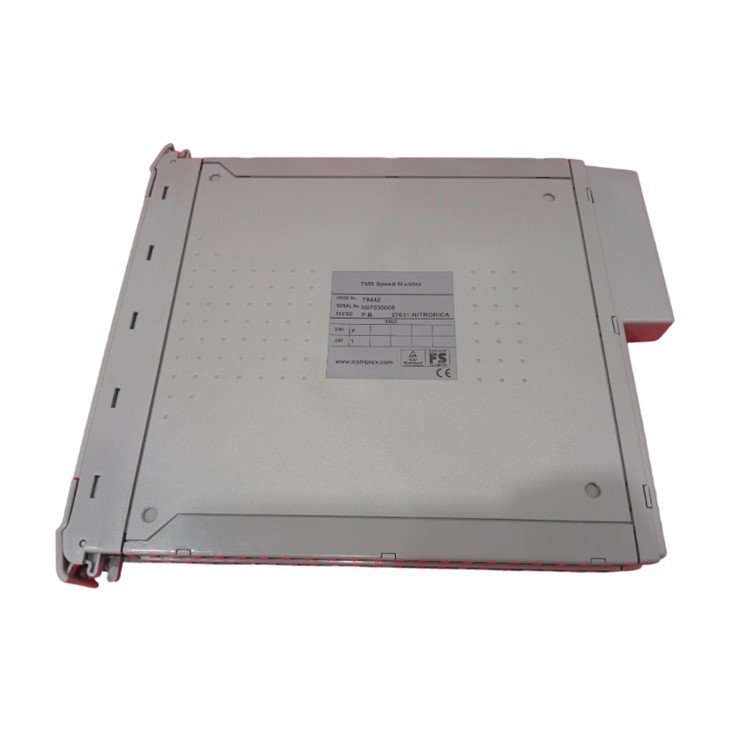

ICS Triplex T8442 Trusted TMR Speed Monitor Module

Overview

ICS Triplex T8442 is a Trusted series Triple Modular Redundancy (TMR) speed monitoring module, mainly used for speed monitoring and safety protection of rotating machinery. This module is usually used together with the speed monitoring input field terminal component SIFTA to form a complete TMR speed monitoring system. The module serves as the core monitoring unit for critical rotating equipment in industrial high-safety-level scenarios.

Note: SIFTA is a DIN-rail type field wiring component responsible for providing the sensor-side field interface and electrical isolation for the ICS Triplex T8442. The combination of ICS Triplex T8442 and SIFTA achieves a complete speed acquisition chain from the sensor to the control system.

🚀Function & Features

TMR Architecture and SIL 3 Certification: The ICS Triplex T8442 module contains three independent processors and input channels. The system has been TÜV certified and meets the safety integrity level specified in the IEC 61508 standard.

Independent Multi-Unit Monitoring: A single T8442 module can monitor up to three independent rotating machines. The protection functions operate independently of the main Trusted processor, providing continuous protection even if the main processor is completely removed.

High-Speed and High-Precision: The ICS Triplex T8442 supports a measurement range of 0–30,000 Hz with an accuracy of 0.01%. Overspeed protection response time is less than 20 ms, and event sequence recording resolution reaches 1 ms.

Specifications

Parameter	Details
Model	ICS Triplex T8442/T8442C
Type	Trusted TMR Triple Modular Redundant Speed Monitor Module
Belonging System	ICS Triplex Trusted Safety System
Input Channels	9 channels (3 groups of 3, TMR redundant configuration)
Sensors	-Active sensors (totem-pole / open-collector output) -Passive sensors (magnetic / inductive)
Input Signal Range	-Active input: 5–30 V DC (totem-pole / open-collector) -Passive input: ≥ 50 mV (magnetic, speed-dependent)
Speed Measurement Range	0 ~ 10000 RPM
Measurement Error	≤0.05% full scale
SOE Time Resolution	1 ms
Protection Response Time	≤10 ms
Typical Power Consumption	7.8 W
Shock Resistance	5 g peak, 11 ms duration
Dimensions (W×H×D)	105 mm123mm 76mm
Weight	0.4kg

Model Comparison

Model	TMR Architecture	Function	SOE Resolution	Safety Level	Main Difference
T8442	Yes	Speed / overspeed monitor	1 ms	SIL3	Dedicated rotating machinery speed monitor
T8431	Yes	Analog input module	1 ms	SIL3	General analog signal acquisition, no speed measurement
T8403	Yes	Digital input module	1 ms	SIL3	Discrete signal input, not for speed probe sensors

Questions & Answers

💡 FAQ

Q: What is ICS Triplex T8442?

A: It is a Trusted TMR speed monitor module for ICS Triplex SIS safety instrumented systems, used for rotating machinery overspeed protection.

Q: What is the speed measurement range of T8442?)

A: 0 to 10000 RPM with measurement error ≤0.05% full scale.

Q: What is the brand?

A: ICS Triplex(Rockwell)

Q: What is the type?

A: Trusted TMR Speed Monitor Module

Q: What is the warranty?

A: 1 year

Q: Where is the shipping location?

A: Xiamen

Q: What is the payment method?

A: T/T
