Description

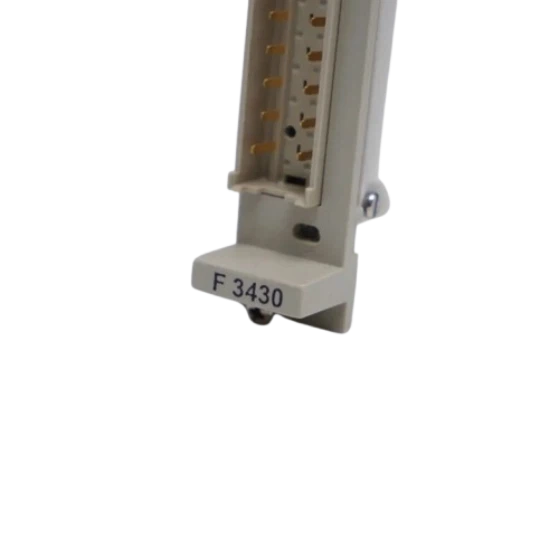

HIMA F3430 4-fold Relay Module, Safety Related

Overview

HIMA F3430 is a safety-related quadruple relay module with safe electrical isolation between inputs and outputs for switching and controlling signals. The creepage distances and air gaps meet the requirements of overvoltage category III (up to 300 V) in accordance with EN 50178 (VDE 0160).

🚀Function & Features

Voltage switching: The switching voltage range of F3430 is ≥5V, ≤250V AC or ≤110V DC.

Safety shutdown: F3430 has a safety shutdown function, which can quickly cut off the circuit when encountering abnormal conditions.

Relay configuration: It has 3 series relays and 4 independent relay channels.

Output protection: The output circuit can be configured with fuse protection (maximum 2.5 A), solid-state open collector output, and LED status indicator on the connection cable plug.

Specifications

Parameter	Details
Model	F3430
Relay Output	NO contact, dust-tight
Contact Material	Silver alloy, gold-flashed
Switching Time	Approx. 8 ms
Reset Time	Approx. 6 ms
Bounce Time	Approx. 1 ms
Switching Current	10 mA ≤ I ≤ 4 A
Mechanical Life	≥ 30 × 10⁶ switching operations
Electrical Life	≥ 2.5 × 10⁵ switching operations (full resistive load, ≤ 0.1 ops/s)
Switching Capacity (AC)	Max. 500 VA, cos φ > 0.5
Switching Capacity (DC)	- Up to 30 V DC: Max. 120 W - Up to 70 V DC: Max. 50 W - Up to 110 V DC: Max. 30 W
Space Requirement	4 TE
Operating Current	- 5 V DC: < 100 mA - 24 V DC: < 120 mA

Questions & Answers

💡 FAQ

Q: What is the brand?

A: HIMA

Q: What is the type?

A: 4-fold Relay Module, Safety Related

Q: What is the warranty?

A: 1 year

Q: Where is the shipping location?

A: Xiamen

Q: What is the payment method?

A: T/T
