Description

Overview：

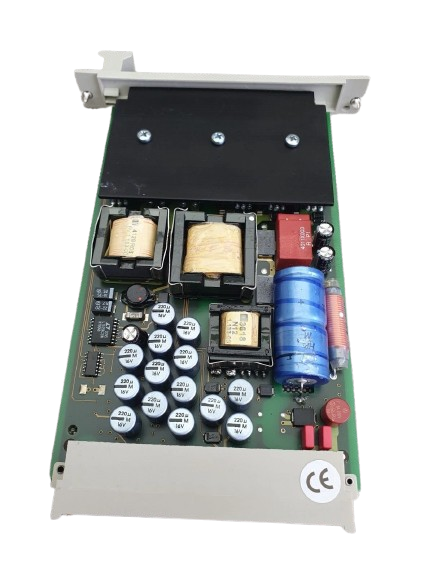

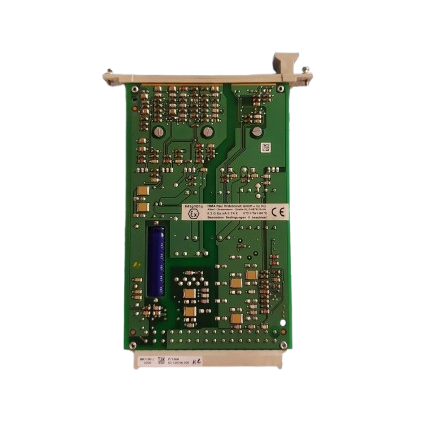

HIMA F7130A is a DC/DC power supply module designed for PES H41q safety control system. It converts 24V DC input voltage into a stable 5V DC output voltage to provide isolated power supply for CPU and I/O modules.

As a DC/DC converter, F7130A can achieve electrical isolation between input and output voltage, and has overvoltage protection and current limiting functions. The output end is short-circuit proof, which can effectively protect the connected equipment.

Features of HIMA F7130A:

HIMA F7130A

Safe isolated power supply:

Electrically isolated design between input (24V DC) and output (5V DC).
Overvoltage protection and current limiting function, short-circuit protection at the output.

Multiple independent outputs:

Status indication:

Category	Specifications
Input Voltage	24V DC (-15% to +20%), ripple (rpp) <15%
Output Voltages	- Central device/I/O modules: 5V DC ±0.25V, 10A max - HIBUS interface: 5V DC ±0.25V, 1A max
Isolation	Electrical isolation between input and output
Protection Features	Overvoltage protection, current limitation, short-circuit proof
Efficiency	≥70%
Primary Fuse	5A gL
Space Requirement	4 SU (Subrack Units)

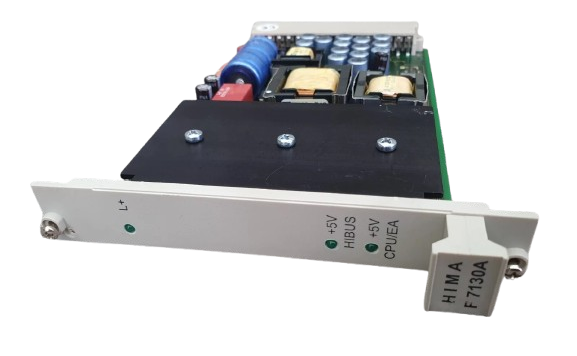

Indication	LED indicators for input voltage (L+) and output voltages
Special Feature	Central device monitoring powered separately via pin z16 (NG)

Q: What is the brand?
A: HIMA

Q: What is the type?
A: Power Supply Module

Q: What is the warranty period?
A: 1 year.

Q: What is the product condition?
A: New.

Q: Where is the shipping location?
A: Xiamen.

Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
