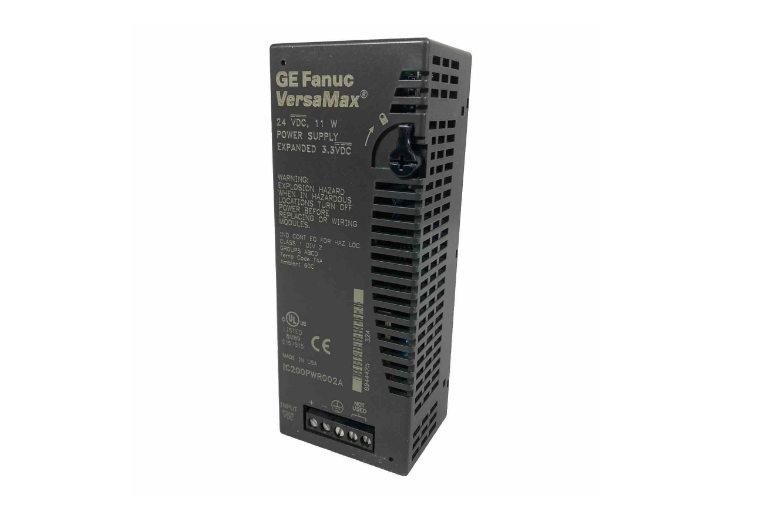

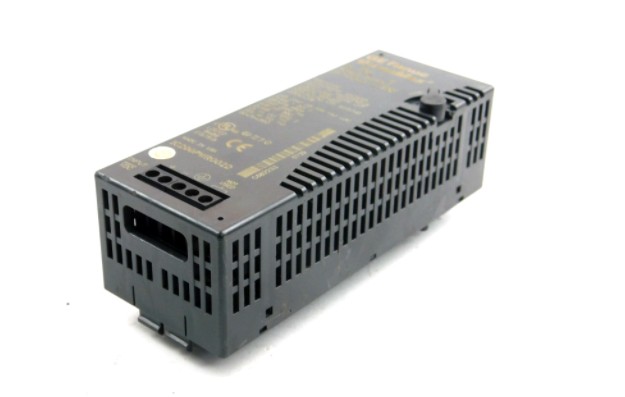

GE IC200PWR002 Power Supply Module
Overview
GE IC200PWR002 is a 24V DC input, 3.3V/5V output backplane power module for the GE VersaMax series. It is primarily used to power the CPU, NIU (Network Interface Unit), and I/O modules.
The IC200PWR002 can be installed on a CPU or NIU module as the primary power supply, or it can be used as a secondary power supply on a power supply booster carrier.
🚀Function & Features
- Output Specifications: The IC200PWR002 provides two output voltages, 3.3V and 5V, with a total output current of up to 1.5A. The maximum current for the 3.3V output is 1.0A, and any remaining current (e.g., 0.5A) can be allocated to the 5V output (provided the total current does not exceed 1.5A).
- Wiring and Grounding: The DC- pin must be grounded (to the frame/earth ground). Since the IC200PWR002 module internally connects the DC- pin to the frame, a floating power supply cannot be used.
- Current Limit: The total output current must not exceed 1.5A. For example, if the 3.3V output draws 1.0A, the 5V output can draw a maximum of 0.5A.
Specifications
|
Parameter |
Details |
|
Part Number |
IC200PWR002 |
|
Input Voltage |
18 to 30 VDC, 24VDC nominal |
|
Input Power |
11W |
|
Holdup Time |
10ms |
|
Inrush Current |
20A at 24VDC, 25A at 30VDC |
|
Output Voltage |
5VDC, 3.3VDC |
|
Total Output Current |
1.5A maximum |
|
3.3VDC Output Current |
1.0A maximum (if used, limits 5VDC to 0.5A) |
|
5VDC Output Current |
(1.5A - 3.3V current) maximum |
Questions & Answers
💡 FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Power Supply Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
