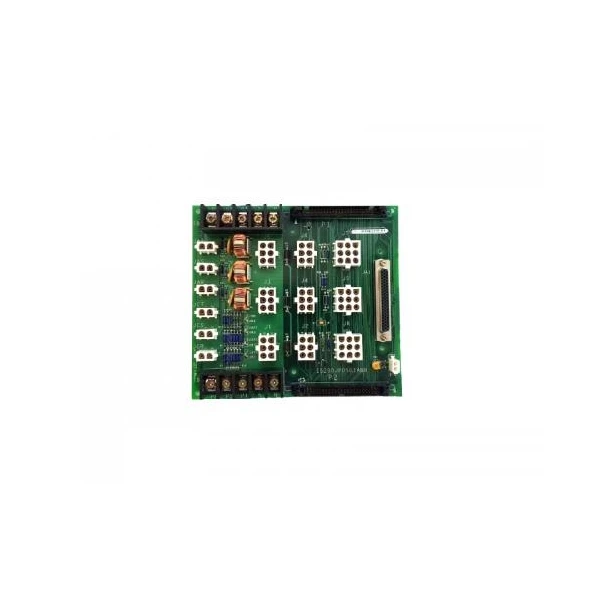

GE IS200JPDSG1A Power Distribution Accessories card

Overview

GE IS200JPDSG1A is a Power Distribution Accessories Card in the Mark VIe control system. It is specifically designed for the Power Distribution System Feedback I/O enclosure IS220PPDAH1A (when used with the IS220PPDAH1A, the firmware version must be matched). This module manages the power distribution system through 15 different plug-in connectors, branch circuit fuses, and output connectors.

Contact now

🚀Function & Features

Single Bus Mode: The IS200JPDSG1A board can combine three buses into a single power supply via jumpers (TB1/TB2).

High Current Capacity: The IS200JPDSG1A board supports a single bus capacity of 25 A, with a total capacity of 75 A across three common ground buses.

Two-Stage π-Type Filtering: The IS200JPDSG1A board can withstand ignition pulses and variable frequency harmonics.

Board-Level Cascading Expansion: The IS200JPDSG1A board supports direct connection between adjacent boards, enabling expansion of the power distribution system.

Specifications

Item	Details
Model	IS200JPDSG1A
Single Bus Capacity	25A (per R/S/T bus)
Total Ground Capacity	75A (shared by three buses)
Main Power Input	JR/JS/JT connectors (for R/S/T buses respectively)
Feedback Signal Ports	P1 (to PPDA I/O pack) / P2 (from other power boards)
Compatible I/O Module	IS220PPDAH1A (PPDA feedback pack)
Weight	Approx. 1.2kg (including bracket)

Application Scenarios

The IS200JPDSG1A is used in the following areas:

Gas-Steam Combined Cycle: In 9E/9F class gas turbine Mark VI cabinets, it distributes the bus to DSVO servo valves, DRLY trip relays, and flame detectors.

Turbine Control: Provides 24 V control power for main and auxiliary exciters and drives field circuit breakers.

Natural Gas Pipeline Compressor Stations: Distributes 24 V to variable-frequency excitation transformers and controls contactors.

Offshore FPSO and LNG Liquefaction Plants: Powered by a 24 V DC battery bus, capable of withstanding salt spray, vibration, and power grid fluctuations.

Comparison of Related Models

Model	Functional Description
IS200JPDPG1A	Pure power distribution board, no signal feedback function
IS200JPDMG1A	Power distribution module, provides fuse protection and multiple power buses
IS2020RKPSG3A	High-voltage power supply module, provides +28V/±12V/+5V buses
IS200EPSMG1A	Excitation power supply module, provides +50V/10A output
