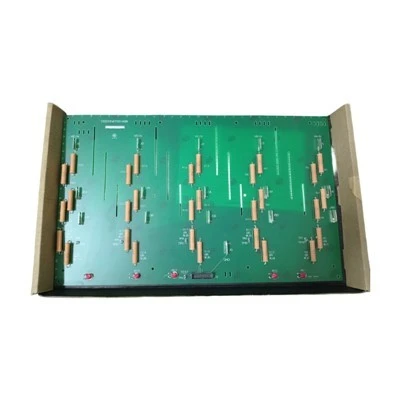

GE DS200NATOG3A Voltage Feedback scaling Board
Overview
GE DS200NATOG3A Voltage Feedback scaling Board is a signal conditioning board designed for the GE Mark V turbine control system. The board receives analog voltage feedback signals from field equipment, converts and scales these signals before sending processed data to the main controller unit
Function & Features：
- Handles analog voltage signal scaling for turbine feedback circuits
- Supports 6 independent analog input channels
- Installs inside standard GE Mark V rack chassis
- Built-in signal conditioning circuit for analog voltage input
- Rack mount design for fast board replacement
- Delivers consistent signal output to the turbine main control unit
- Works with existing Mark V system wiring and terminal assemblies
Specifications：
| Item | Parameter |
|---|---|
| Model | DS200NATOG3A |
| Product Name | Voltage Feedback scaling Board |
| Brand | GE |
| Compatible System | GE Mark V Turbine Control System |
| Input Voltage Range | 0 ~ 10 V DC |
| Number of Signal Channels | 6 channels |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -40 °C to 85 °C |
| Power Supply | 5 V DC, 1.2 A |
| HS Code | 8538900000 |
| Humidity Range | 5% ~ 95% non-condensing |
| Insulation Resistance | ≥100 MΩ at 500 V DC |
| Signal Accuracy | ±0.2% FS |
| Length | 267mm |
| Width | 216mm |
| Height | 30mm |
| Gross Weight | 1.4 kg |
Model Comparison
| Model | Product Description | Difference |
|---|---|---|
| DS200NATOG3A | Voltage Feedback scaling Board | 6 channel voltage input, for Mark V |
| DS200NATOG1A | Voltage Feedback scaling Board | 4 channel voltage input |
Questions & Answers
💡 FAQ
Q: What system does GE DS200NATOG3A work with?
A: GE DS200NATOG3A Voltage Feedback scaling Board runs on GE Mark V turbine control system.
Q: How many analog input channels does DS200NATOG3A have?
A: The board comes with 6 analog voltage input channels.
Q: What input voltage does this scaling board accept?
A: It accepts 0 ~ 10 V DC analog voltage input.
Q: Can DS200NATOG1A replace DS200NATOG3A?
A: No. DS200NATOG1A only has 4 input channels and the channel count does not match.
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A: Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
