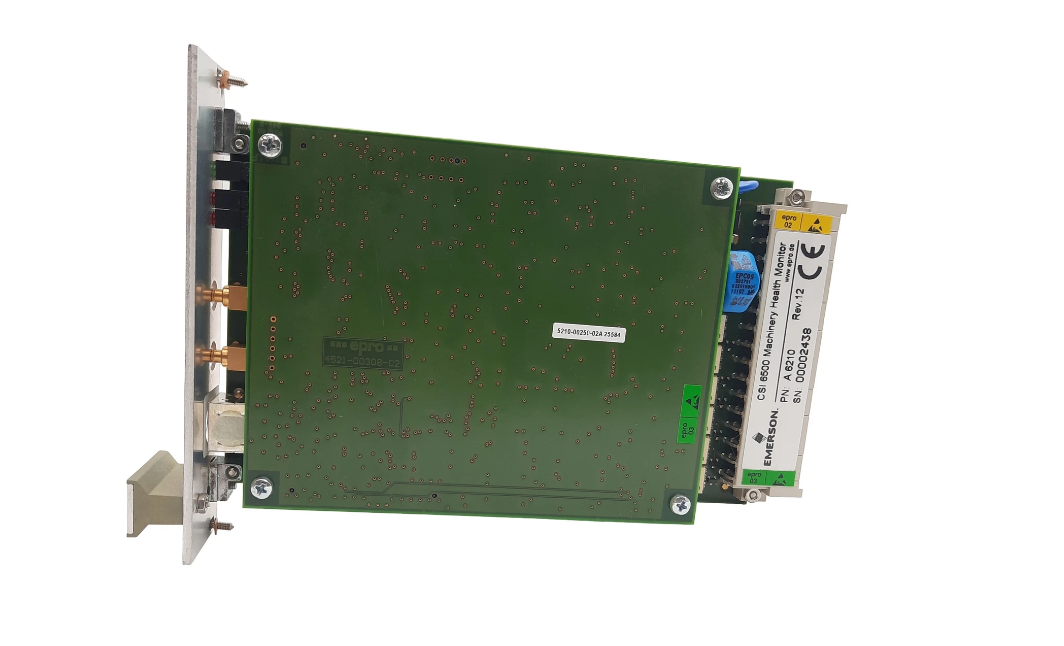

Emerson A6210
Overview
Emerson A6210 Thrust Position, Differential Expansion, and Rod Position Monitor is one of the modules of AMS 6500 Machinery Health Monitoring System. The monitor is mainly used to monitor the relevant operating parameters of turbomachinery and reciprocating compressors.
Emerson A6210 supports three monitoring modes:
Axial displacement (Thrust Position),
Differential expansion (Differential Expansion)
Piston rod position (Rod Position).
🚀Function & Features
- Thrust Position: A6210 monitors the axial displacement of the rotor in real time to prevent the rotor from colliding with the housing due to wear or failure of the thrust bearing. 1~3 non-contact displacement sensors (such as eddy current probes) are axially installed at the shaft end or near the thrust plate.
- Differential Expansion: A6210 monitors the thermal expansion difference between the rotor and the housing to avoid friction caused by uneven expansion (such as the start-up and shutdown phase of the turbine). Supports Tandem/Complementary and Cone/Ramp working modes.
- Rod Position: Used for reciprocating compressors to monitor piston rod sinking (Rider Band wear). A6210 measures the piston rod position through a displacement probe and sets the alarm threshold to prevent the piston from contacting the cylinder body and damaging the equipment.
Specifications
|
Parameter |
Details |
|
Model |
A6210 |
|
Number of Inputs |
Two, independent |
|
Type of Inputs |
Eddy current, differential |
|
Emerson Sensor Inputs |
Part number: 6422, 6423, 6424, 6425 |
|
Isolation |
Galvanically separated from power supply |
|
Input Resistance |
>100 kΩ |
|
Input Voltage Range |
0 to-22 VDC |
|
Measuring Frequency Range |
0-8 Hz (10 Hz, -3 dB) |
| Weight | 0.78kg |
Questions & Answers
💡 FAQ
Q: What is the brand?
A: Emerson
Q: What is the type?
A: Thrust Position,Differential Expansion,and Rod Position Monitor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
