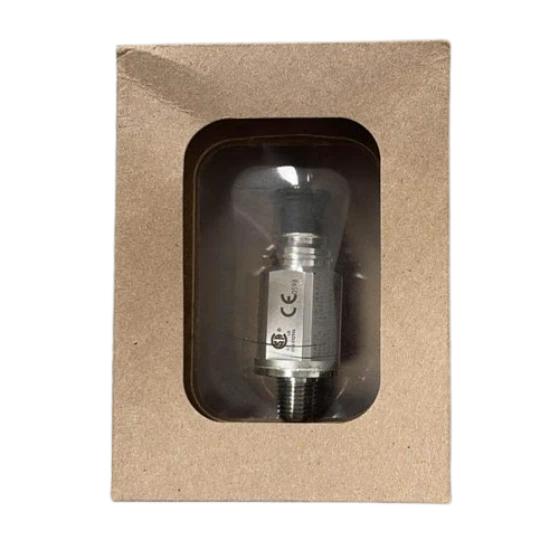

Bently Nevada 330525-00 XA Piezo-Velocity Sensor

Overview
The Bently Nevada 330525-00 XA Piezo-Velocity Sensor is a velocity sensor in the Bently Nevada 3300 series. It belongs to the Velomitor XA (Extended Application) sensor family and is a ruggedized version of the 330500 Velomitor sensor. It features a 316L stainless steel housing and waterproof connector and cable assembly.
🚀Function & Features
- Measurement Principle: The 330525-00 uses the piezoelectric effect to directly detect mechanical vibration velocity (units: mm/s or in/s).
- 330525-00 Application Scenario: Common faults such as rotor imbalance, shaft misalignment, bearing wear, and mechanical looseness.
- Installation Requirements: The 330525-00 sensor must be in close contact with the machine housing to accurately transmit rotor vibration. Improper installation may result in data distortion.
- Installation Location: The 330525-00 sensor must be installed in a housing location that reflects rotor vibration (avoid installation in a vibration-isolating area).

Specifications
|
Parameter |
Details |
|
Model |
330525-00 |
| Related products | 330525-CN/330525-05 |
| Sensing Type | Piezoelectric velocity |
| Frequency Response | 4.5 Hz to 5 kHz |
| Operating Temperature Range | -40 ℃ ~ +120 ℃ |
|
Velocity Range |
1270 mm/s (50 in/s) peak. |
|
Transverse Sensitivity |
Less than 5% of sensitivity. |
|
Amplitude Linearity |
±2% to 152 mm/s (6 in/s) peak. |
|
Mounted Resonant Frequency |
Greater than 12 kHz. |
|
Broadband Noise Floor (4.5 Hz to 2 kHz) |
0.004 mm/s (160 min/s) rms, nominal. |
|
Power Requirements |
DC Voltage: -22 to -30 V₍₍DC₎₎; Bias Current: 2.5 to 6.0 mA |
|
Dynamic Output Impedance |
Less than 2400 Ω |
| Mounting Thread | 1/4-28 UNF |
| Shock Limit | 500 g peak |
| Vibration Limit | 10 g, 10-2000 Hz |
| Weight | 180 g |
| Dimension | 72 mm × 24 mm |
Model Comparison Chart
| Model | Sensing Type | Cable Length | Frequency Range | Mount Thread |
|---|---|---|---|---|
| 330525-00 XA | Piezo velocity | 2 m | 4.5 Hz ~5 kHz | 1/4-28 UNF |
| 330525-01 XA | Piezo velocity | 5 m | 4.5 Hz ~5 kHz | 1/4-28 UNF |
| 330525-02 XA | Piezo velocity | 10 m | 4.5 Hz ~5 kHz | 1/4-28 UNF |
Questions & Answers
💡 FAQ
Q: What is the brand?
A: Bently Nevada
Q: What is Bently Nevada 330525-00 XA Piezo-Velocity Sensor used for?
A: It measures vibration velocity of rotating equipment and sends signals to vibration monitoring racks.
Q: Is 330525-00 a replacement sensor for existing Bently Nevada systems?
A: Yes, it can serve as a spare part for compatible 3300 and 3500 monitoring systems.
Q: What is the type?
A: XA Piezo-Velocity Sensor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
