Description

Overview：

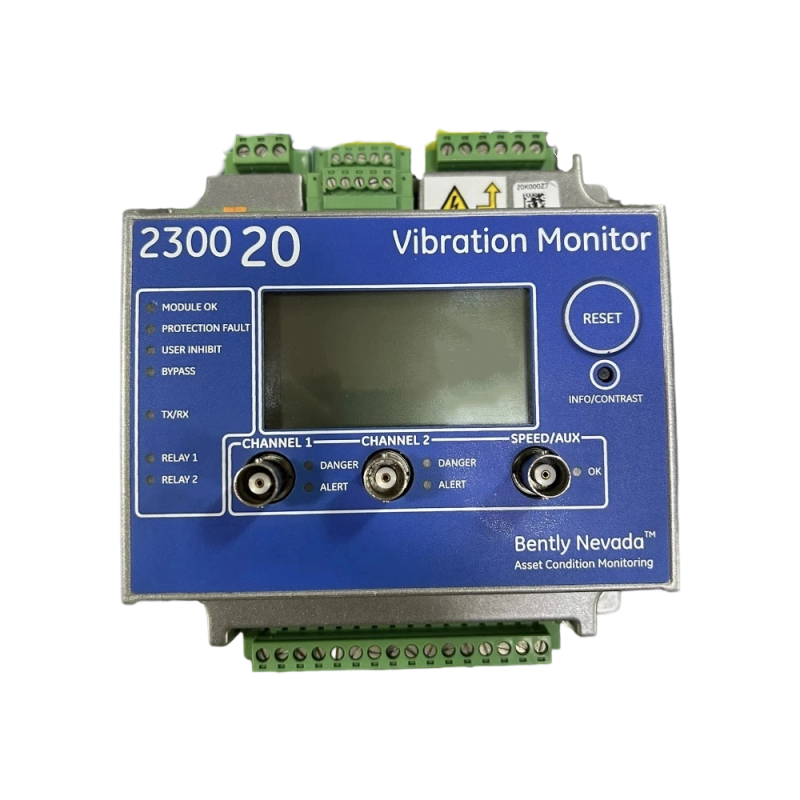

Bently Nevada 2300/20-00 Vibration Monitor

The 2300/20-00 is a dual-channel vibration monitor in the Bently Nevada 2300 Series. It provides vibration monitoring and protection for medium- to low-criticality machinery (or critical equipment associated with backup equipment), belonging to the category of specialized machinery protection systems.

The 2300/20-00 vibration monitor continuously monitors machinery vibration levels and issues an alarm or triggers a shutdown signal when vibration levels exceed safety thresholds, It is an economical mechanical protection instrument.

Related Products:2300/25

Inquiry:sales18@htechplc.com

Function & Features：

Dual Monitoring Channels: The 2300/20-00 provides two independent input channels, each capable of connecting to a variety of vibration sensors, including accelerometers, velocity sensors, and eddy-current sensor systems.

Dedicated Speed Channel: The 2300/20-00 provides an additional speed (Keyphasor®) input channel that supports proximity probes, magnetic tachometers, and proximity switches, enabling speed-synchronized vibration analysis (such as order analysis).

Bandpass Measurements: In addition to the basic measurement set, the 2300/20-00 can add two additional bandpass measurements per channel to focus on vibration in a specific frequency range (for example, excluding gear mesh frequencies to focus only on bearing fault frequencies).

Bently Nevada 2300/20-00 Vibration Monitor

Specifications：

Parameter	Details
Product Number	2300/20-00 2300/20-CN
DC Input	18-36 Vdc, max 7.5 W
Lower Not Ok limit	-2.75 ± 0.05 V
Rpm range (1)	1 to 60,000
Input voltage	Adapt to sensor 284947 output
RPM range (2)	200 to 120,000
Supply Voltage	-22.8 to -25.2 Vdc
Maximum Rated Current	15 mA
Short Circuit Current	15.1 mA to 23.6 mA
Dimensions (Width x Depth x Height)	127 mm x 127 mm x 76.2 mm (5 in. x 5 in. x 3 in.)
Weight	1.03 kg (2.26 lbs)

product-1-1

2300/20
