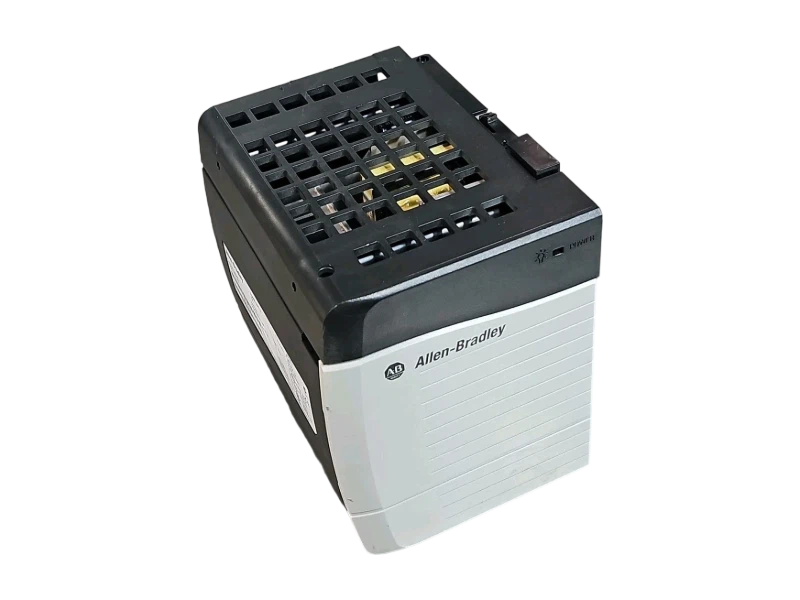

Allen Bradley 1756-PA72

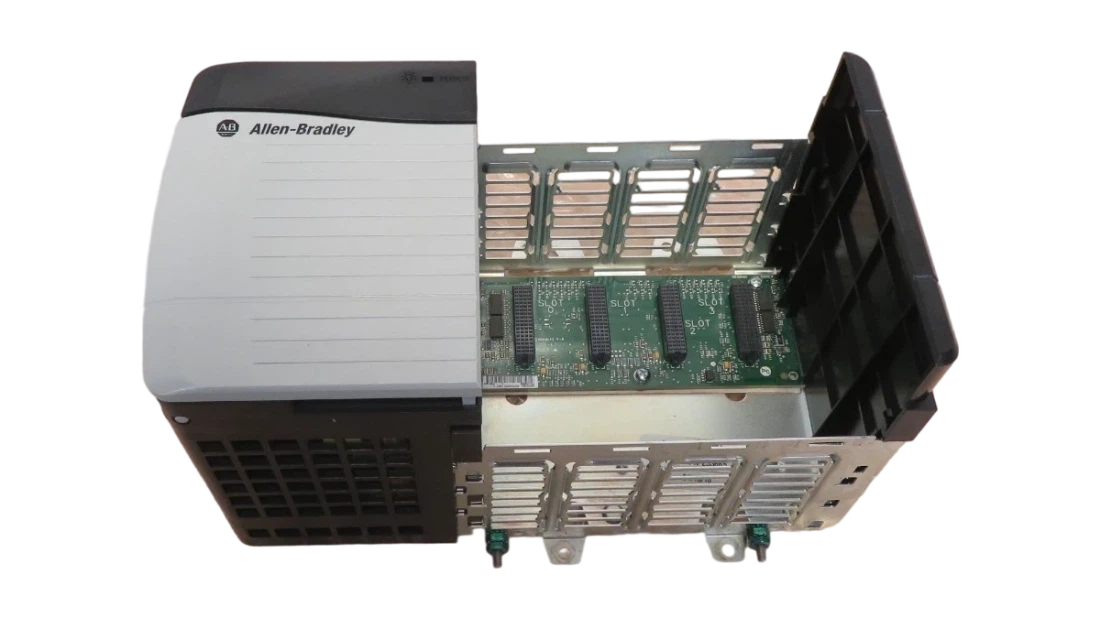

ControlLogix Power Supply Module

Allen-Bradley 1756-PA72 is an AC input, DC output power supply module in the Rockwell Automation ControlLogix system series. It converts industrial AC power (85-265V AC) into pure DC power, providing the energy for the entire ControlLogix chassis and all modules within it (such as controllers, I/O modules, and communication modules).

Note: This model is also available in a conformal coated version. For details, please contact↓↓

Email:sales18@htechplc.com
WhatsApp/WeChat/Mobile: +86 18059275924

Function & Features：

Centralized Rack Power Supply: The 1756-PA72 provides all regulated voltages required for operation for all modules within the ControlLogix chassis (such as input/output modules, processor modules, etc.), eliminating the need for separate power supplies for individual modules.

Limited Holdup Time: When the external input power fluctuates or is briefly interrupted, the 1756-PA72 power module's internal capacitors store a small amount of energy, maintaining the output voltage for a limited time (in milliseconds), providing a short "buffer" for the system.

Orderly Shutdown Signal: When the 1756-PA72 detects an input power failure that is impending output voltage failure, it sends a preemptive warning signal to all modules within the chassis, enabling the controller to execute an orderly shutdown procedure.

Specifications：

Parameter	Details
Product Model	1756-PA72
Type	Power Supply Module
Product Series	ControlLogix (Bul. 1756 / 1757)
Component Type PLC & I/O	Power Supply
Operating Temperature, Max	60 °C max
Storage Temperature, Max	85 °C max
Storage Temperature, Min	-40 °C min
Vibration Acceleration (Max.)	2 m/s²
Vibration Frequency, Operational (Max.)	500 Hz

Note:

UL certified for 120/240V AC, 50/60 Hz (nominal). Rockwell Automation specifies 85…265V AC, 47…63 Hz.
Hold-up time is the time between the removal of the input voltage and the onset of DC power failure.
The combined power of all outputs (5.1V backplane, 24V backplane, 3.3V backplane, and 1.2V backplane) must not exceed 60 W at a maximum temperature of 50°C (122°F).
The combined power of all outputs (5.1V backplane, 24V backplane, 3.3V backplane, and 1.2V backplane) must not exceed 50 W at a maximum temperature of 60°C (140°F).
The combined power of all outputs (5.1V backplane, 24V backplane, 3.3V backplane, and 1.2V backplane) must not exceed 75 W.
