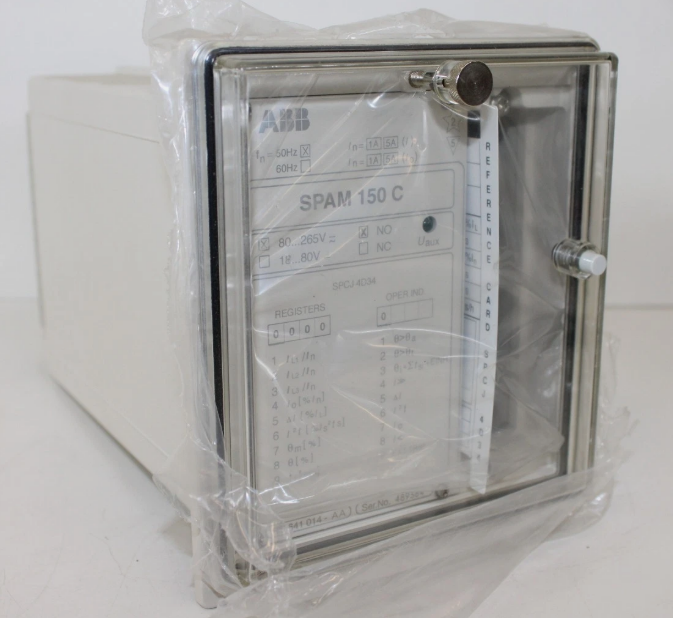

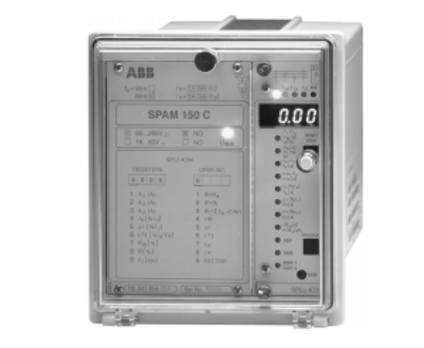

The ABB SPAM150C-AA Integrated Protection Relay is a core motor protection device within the ABB SPAM series, specifically designed for medium- and low-voltage industrial motor systems. This device consolidates a wide range of protection and control functions into a single compact module, serving as a critical component within power distribution networks for safeguarding three-phase motors, transformers, and feeder circuits. Also referred to as a motor protection relay, it is engineered to monitor current, voltage, and various fault conditions in real time.
The operational principle of the SPAM150C-AA Integrated Protection Relay centers on the continuous measurement of the phase currents and zero-sequence current of the protected equipment. Upon detecting conditions such as overload, short circuit, phase unbalance, or ground fault, the device immediately triggers a trip command or issues an alarm signal. This device is widely deployed in industrial motor drive systems, distribution cabinets, and substations; it is compatible with systems controlled by contactors as well as those controlled by circuit breakers.
Fuctions & Features:
- Multifunctional Integration: Combines thermal overload, short circuit, ground fault, three-phase unbalance, phase sequence, and undercurrent protection functions into a single unit.
- Wide Auxiliary Power Range: Supports 80–265 V AC/DC or 18–80 V AC/DC auxiliary power inputs, offering flexible adaptability to on-site power supply conditions.
- Rapid Fault Response: Features an actuation time of less than 50 ms for short-circuit faults and less than 5 ms for critical faults, minimizing equipment damage.
- LED Status Indication: Clearly displays power, trip, and fault statuses via LED indicators, facilitating rapid on-site diagnostics.
- Rail/Panel Mounting: Supports standard DIN rail mounting or direct panel mounting, offering flexible adaptability to distribution cabinet layout requirements.
- Serial Communication Capability: Equipped with RS-485 (Modbus RTU) or fiber optic interfaces to support remote monitoring and data transmission.
- Harsh Environment Adaptability: Operates within a temperature range of -20°C to +55°C with a relative humidity of 95% (non-condensing), ensuring industrial-grade operational reliability.
Specification：
|
Parameter |
Details |
|---|---|
| Model | SPAM150C-AA |
| Type | Integrated motor protection relay |
| Rated current input | 1 A / 5 A selectable |
| Rated voltage input | 100–240 V AC/DC |
| Auxiliary supply voltage | 80–265 V AC/DC; 18–80 V AC/DC |
| Frequency | 50 Hz / 60 Hz |
| Operating temperature | -20°C to +55°C |
| Storage temperature | -40°C to +70°C |
| Humidity | 95% non-condensing |
| Length | 159mm |
| Width | 113mm |
| Height |
91mm |
| Weight |
0.3KG |
- Questions and Answers：
Q: Is this relay suitable for 60 Hz power systems?
A:The SPAM150C-AA supports both 50 Hz and 60 Hz power systems and features an automatic frequency detection function.
Q: Which Current Transformer (CT) ratios are compatible with it?
A: It accepts secondary current inputs of 1 A or 5 A and is compatible with various standard CT ratios, such as 100:5, 200:5, 500:5, etc.
Q: Does it support remote monitoring capabilities?
A: It offers RS-485 (Modbus RTU) or fiber optic communication interface options, enabling remote data access and control.
Q: What is its operating temperature range?
A: The operating temperature range is -20°C to +55°C, making it suitable for most industrial environments.
Q: Can it replace older ABB relay models?
A: It serves as a direct replacement for the SPAM150 series relays and is fully compatible with existing wiring and installation methods.
Q: What protection functions does it include?
A: It includes thermal overload protection, short-circuit protection, earth fault protection, three-phase unbalance protection, phase sequence protection, undercurrent protection, and locked-rotor protection.
Q: What is the brand?
A: ABB
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A: In stock
Q: What is the payment method?
A: T/T
Contact us to get a quick quote!
If you are interested in this product or need more technical details, please contact us immediately! Our professional team will provide you with detailed product information and competitive quotations to ensure that you get the most suitable solution at the best price.
