ABB NTAM01 Analog Master Termination Unit
Overview
ABB NTAM01 is a terminal unit designed for redundant IMAMM03 analog master modules and is only required in the following scenarios:
When used with thermocouple slave modules (such as IMASM02);
When connected to digital indicating stations (such as NDIS01).

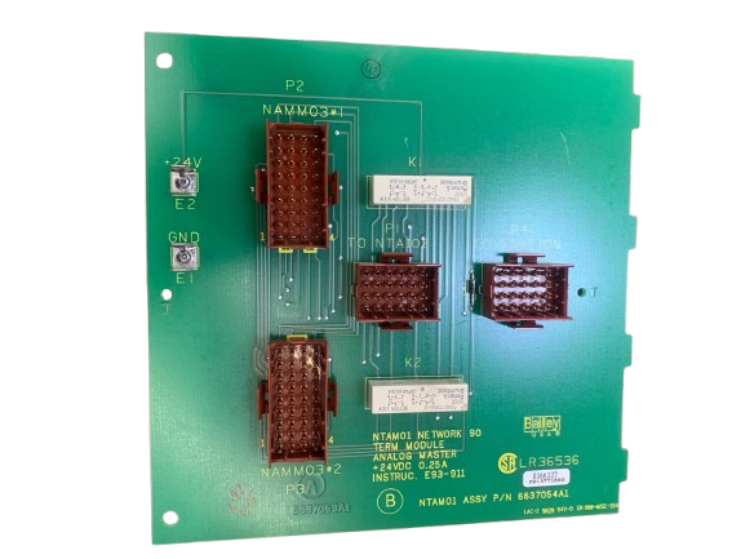

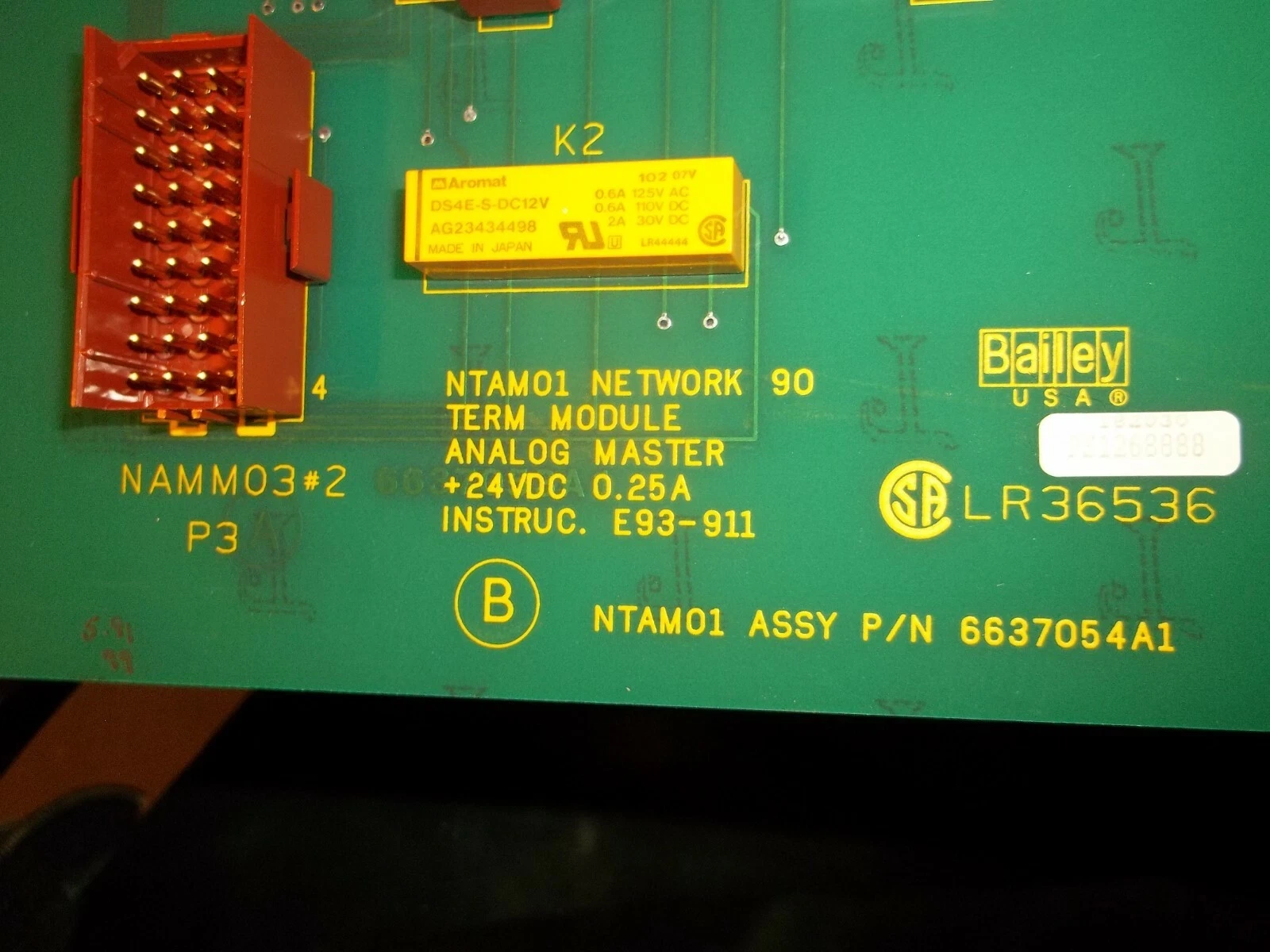

The NTAM01 unit is essentially a single printed circuit board (PCB) that can be installed in the NFTP01 field terminal panel and connected to the equipment through factory pre-wired cables. ABB NTAM01' core function is to transmit cold junction temperature compensation signals and internal calibration signals between the IMAMM03 master module and slave modules (such as thermocouples, millivolt modules), while supporting communication between redundant master modules.
🚀Function & Features
Connectivity
- - NTAM01 can connect up to 4 NTAI02 units (analog input terminals).
- - NTAM01 can connect up to 4 NDIS01 digital indication stations.
Signal transmission function
- - NTAM01 transmits the slave calibration voltage from the IMAMM03 master module to the NTAI02 unit.
- - NTAM01 transmits the cold junction reference temperature of the NTAI02 unit to the IMAMM03 master module.
- - NTAM01 supports bidirectional transmission of cold junction temperature compensation and internal calibration signals between the master and slave modules.
Specifications
|
Property |
Value |
| Model Number | NTAM01 |
|
Power Requirements +24 VDC |
- 325 mA for each NDIS01 station (4 maximum) |
|
Mounting |
Mounts in the NFTP01 Field Termination Panel. |
|
Environmental |
|
|
- Electromagnetic/Radio Frequency Interference |
- No values available at this time |
|
- Ambient Temperature |
0° to 70°C (32° to 158°F) |
|
- Atmospheric Pressure |
Sea level to 3 km (1.86 mi) |
Questions & Answers
💡 FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A: Analog Master Termination Unit
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
