overview：

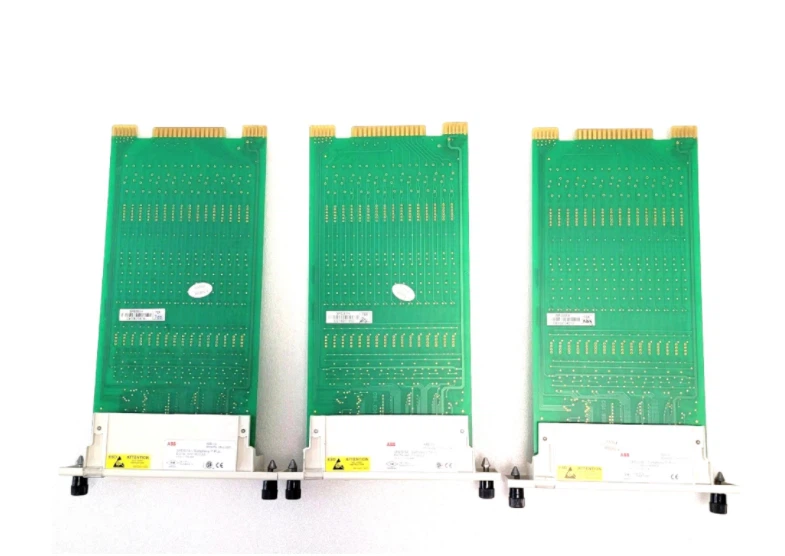

The SPDSI14 digital input module is designed for the ABB Symphony Plus control system. It can process up to 16 digital field input signals and provide the necessary digital input information for the control system.
It supports a fixed input voltage of 48V DC and is suitable for monitoring switch, relay or sensor signals.
It can accurately transmit the digital signals on site to the controller for subsequent logical judgment and control decision making.
Fuctions & Features:
- SPDSI14 has 16 independent inputs to maximize rack space utilization.
- Each channel of SPDSI14 is isolated by optocouplers (optical isolation), effectively preventing ground loops and voltage surges.
- SPDSI14 adapts to ambient temperatures from 0°C to 70°C (32°F to 158°F).
- The SPDSI14 module operates on a 5V DC ±5% power supply with a typical current of only 95 mA.
- SPDSI14 is optimized for ABB Symphony Plus controllers. No jumper settings reduce the risk of configuration errors.
Specification：
|
Parameter |
Value |
|
Power requirements |
5 VDC, ± 5% at 95 mA typical |
|
Digital input channels |
16 optically isolated channels |
|
Current |
4.7 mA |
|
Voltage |
48 VDC |
|
Ambient temperature |
0 °C to 70 °C (32 °F to 158 °F) |
|
Product Net Depth / Length |
73.66 mm |
|
Product Net Height |
358.14 mm |
|
Product Net Width |
266.7 mm |
|
Product Net Weight |
0.7kg |
