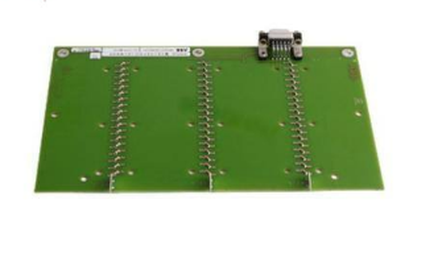

ABB XVC770BE101 3BHE021083R0101 Circuit Board Module | 800xA Series

Overview

ABB XVC770BE101 3BHE021083R0101 Circuit Board Module | 800xA Series-integrates 16 digital input (DI) and 16 digital output (DO) channels. It performs critical functions including signal acquisition, conversion, transmission, and the execution of control commands.

Utilizing high-density integrated circuit design and adhering to industrial-grade reliability standards, this module features exceptional noise immunity and high-precision signal processing capabilities. It is particularly well-suited for industrial applications where control accuracy and system stability requirements are extremely rigorous.

The ABB XVC770BE101 (3BHE021083R0101) is widely deployed across various industries, including electric power, chemicals, metallurgy, and oil and gas.

🚀Function & Features

Integrated Hybrid I/O: The ABB XVC770BE101 (3BHE021083R0101) circuit board module integrates 16 digital inputs and 16 digital outputs into a single unit.

High Noise Immunity: Equipped with dedicated signal conditioning circuitry, the module filters, amplifies, and isolates raw input signals, thereby effectively suppressing common industrial field issues such as electromagnetic interference, voltage fluctuations, and signal attenuation.

Broad Adaptability and Stability: The module supports a wide voltage input range of 24V DC ±15%, allowing it to adapt to diverse power supply configurations found in industrial environments. An impressive Mean Time Between Failures (MTBF) of over 100,000 hours ensures long-term operational stability and effectively reduces maintenance costs.

Rapid Signal Response: The XVC770BE101 module features a digital input response time of ≤1 ms, enabling it to rapidly capture status changes from field sensors and provide real-time feedback to the upper-level controller.

Convenient Integration and Maintenance: Utilizing a standard 3U rack-mount form factor and a "plug-and-play" design philosophy, the module greatly simplifies installation and replacement procedures. It is fully compatible with the ABB 800xA Distributed Control System and supports seamless integration with other ABB modules.

Products Description

Parameter	Value
Product Model	XVC770BE101 3BHE021083R0101 Circuit Board Module
Product Series	ABB 800xA Distributed Control System
Product Type	Digital Input/Output Mixed Circuit Board Module
Operating Temperature	-20°C to +60°C
HS CODE	8537101190
Protection Level	IP20 (for cabinet installation)
Product Net Depth / Length	215 mm
Product Net Height	50 mm
Product Net Width	115 mm
Product Net Weight	0.286 kg

FAQ

Q1: Which systems are compatible with the ABB XVC770BE101 (3BHE021083R0101) circuit board module?
A1: The ABB XVC770BE101 (3BHE021083R0101) is a circuit board module specifically designed for the ABB 800xA Distributed Control System (DCS). It is fully compatible with the ABB 800xA series of controllers and supports seamless integration with SD Series I/O and Harmony Rack I/O subsystems, thereby enabling "plug-and-play" installation.

Q2: What are the isolation capabilities of the ABB XVC770BE101 module?
A2: The ABB XVC770BE101 features an isolation voltage of 1500V AC (for 1 minute) between its input and output circuits, and an isolation voltage of 2000V AC (for 1 minute) between its power supply and signal circuits. This design effectively prevents signal crosstalk and fault propagation, enabling the module to operate reliably in harsh industrial environments characterized by strong electromagnetic interference.

Q3: Does the ABB XVC770BE101 support signal self-diagnostic functions?
A3: The ABB XVC770BE101 is equipped with built-in self-diagnostic circuitry capable of real-time monitoring of the module's power supply status, chip operational status, the integrity of the signal acquisition circuits, and the interface communication status. Upon detecting a fault, the module outputs an alarm signal via a dedicated alarm pin or communication interface and records the corresponding fault code, thereby facilitating rapid troubleshooting.

Questions & Answers

💡 FAQ

Q: What is the brand?

A: ABB

Q: What is the type?

A: Digital Input/Output Mixed Circuit Board Module

Q: What is the warranty?

A: 1 year

Q: Where is the shipping location?

A: Xiamen

Q: What is the payment method?

A: T/T
