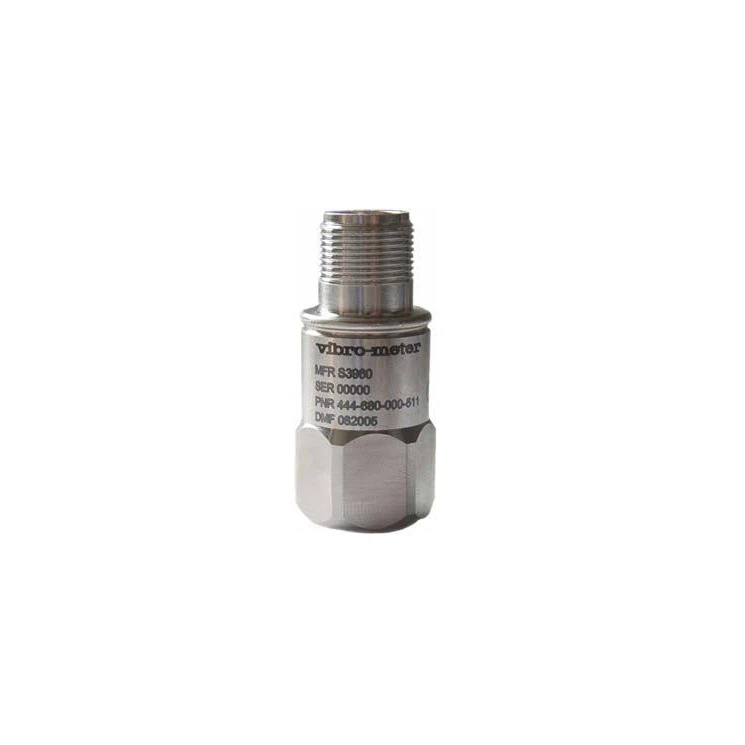

CE680 M511 444-680-000-511 Piezoelectric Accelerometer

Item Number:CE680 M511 444-680-000-511
Brand: Others
Price: $1
Lead Time: In stock
Description:Piezoelectric Accelerometer
Payment: T/T
Shipping Port: XIAMEN

Send Inquiry

Download

Description

Overview：

The CE 680 M511 444-680-000-511 is a general purpose vibration sensor designed for harsh industrial machinery environments. It uses industry standard two-wire voltage transmission technology and is equipped with a constant current source. The output signal sensitivity is 100 mV/g.

Due to the isolated grounding and internal shielding of the accelerometer, there are no ground loops or frame voltages interfering with the measurement. The CE 680 M511 has very low noise levels and excellent bias voltage performance at high temperatures.

Fuctions & Features:

solation ground and internal shield: Eliminate ground loop interference and rack voltage effects.

Shear Mode: Avoid output drift caused by thermal transients.

ESD protection: Equipped with electrostatic discharge (ESD) protection.

Frequency response: ±10% accuracy range: 1 Hz to 9 kHz; -3 dB bandwidth: 0.5 Hz to 14 kHz

Insulation and shielding: Shell insulation, internal shielding.

Specification：

Parameter	Value
Sensitivity (at +25°C)	100 mV/g ±5%
Dynamic range	80 g
Transverse sensitivity (maximum)	5% of axial
Linearity	1% up to full scale
Frequency response (nominal)
• 3 Hz - 5 kHz	±5%
• 1 Hz - 9 kHz	±10%
• 0.5 Hz - 14 kHz	-3 dB
Resonant frequency	30 kHz
Temperature response - Typical deviations
-55°C to +120°C	±5%
-55°C	-5%
120°C	+3%
