Overview：

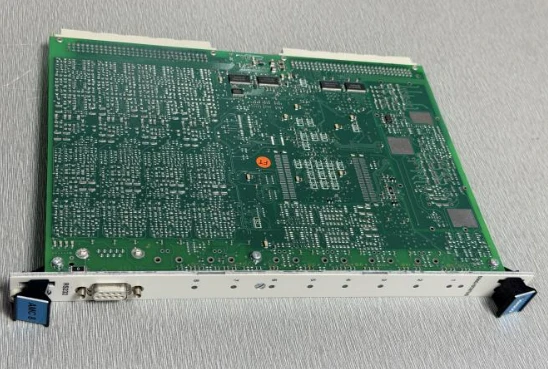

AMC8 200-550-005-112 Analog Monitoring Card
AMC8 200-550-005-112 Analog Monitoring Card is a dedicated analog signal acquisition module for VM600 machinery protection and condition monitoring systems. This VM600 analog module acquires real-time analog signals from field rotating equipment, completes built-in filtering and analog-to-digital conversion, and transmits standardized digital data to the VM600 host system. It works with other rack modules to sustain continuous equipment condition monitoring and operational data recording for industrial process units.
The AMC8 200-550-005-112 Analog Monitorin is commonly used for faulty module replacement, monitoring channel expansion and hardware upgrading on existing VM600 system sites.
Function & Features：
High-precision Analog Signal Processing: The AMC8 module adopts professional sampling chips to achieve accurate analog signal conversion. It captures subtle changes in field process signals and outputs stable data sources for VM600 condition monitoring systems.
Multi-type Analog Signal Adaptation: This VM600 analog monitoring module supports mainstream industrial analog signal types, covering conventional process monitoring signal demands of rotating equipment in process industrial sites.
Built-in Signal Filtering and Noise Reduction: Internal filtering circuits eliminate high-frequency clutter and interference signals generated by industrial equipment operation. It retains valid monitoring signals and reduces data fluctuation during long-term acquisition.
Specifications：
| Parameter | Details |
|---|---|
| Product Model |
AMC8 200-550-005-112 |
|
Product Type |
Analog Monitoring Card |
|
Operating Voltage |
24VDC ±10% |
|
Working Temperature Range |
0℃ ~ +55℃ |
|
Working Humidity |
5% ~ 85% RH, non-condensing |
|
Communication Interface |
Ethernet, RS-485 Serial Port, VME backplane bus |
|
Operating Temperature |
0℃ ~ +55℃ |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Working Humidity |
5% - 95%, non-condensing |
|
HS Code |
8538909100 |
| Height | 205 mm |
| Width | 162 mm |
| Depth | 27mm |
| Weight | 0.66 kg |
Questions & Answers
💡 FAQ
Q: What is the main function of AMC8 200-550-005-112?
A:This Vibro-Meter AMC8 signal acquisition card collects on-site industrial analog signals, completes filtering and calibration processing, converts analog signals into digital data, and transmits valid data to the VM600 host for equipment condition monitoring and data recording.
Q: Which systems does the 200-550-005-112 analog card adapt to?
A: It is fully compatible with Vibro-Meter Meggitt VM600 Machinery Protection System and VM600 Condition Monitoring System, matching all standard VM600 rack configurations.
Q: Does this analog monitoring card support independent channel calibration?
A: Each signal channel of the module supports independent parameter calibration, which can adapt to different on-site signal acquisition and monitoring requirements.
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A: Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
