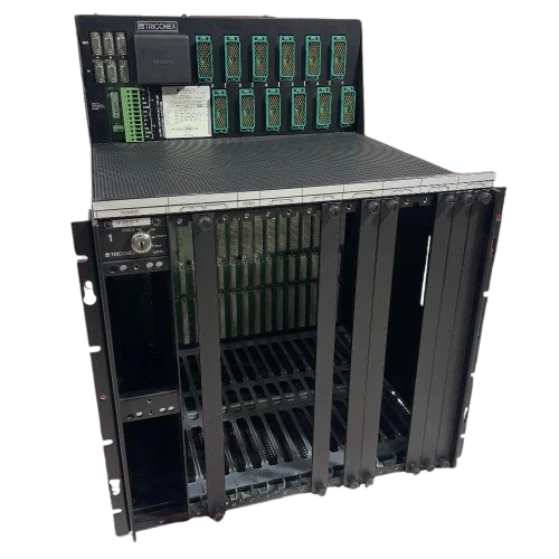

Triconex 8110 Main Chassis
Overview
Triconex 8110 Main Chassis is the omponent of the Tricon system. It is used to accommodate I/O modules and communication modules and is the first chassis of the system. To expand the system scale, you can add expansion chassis (models 8111 or 8121) and/or RXM chassis (model 8112). For specific configuration details, refer to the "System Configuration" section.
🚀Function & Features
- Physical Interface: Each chassis has 6 RS-485 I/O expansion bus ports on the upper left corner of the backplane, divided into three channels A, B, and C. Each channel group provides two sets of ports, forming two triple serial communication paths between chassis.
- Connection requirements: Each Triconex 8110 expansion chassis and the RXM chassis that accommodates the main RXM module group need to connect a set of cables. The standard cable set (model 9000) is 6 feet long, and longer cables can be provided upon request.
- Keyswitch for System Control: The main chassis is equipped with a four-position key switch that can control all chassis in the system. Its status can be read by the Tricon controller, TriStation 1131 software and control program.
Specifications
|
Item |
Details |
|
Model |
Triconex 8110 (Main Chassis) |
|
Expansion Chassis Models |
8111 (Standard Expansion), 8121 (High - Density Expansion), 8112 (RXM Remote I/O Expansion) |
|
I/O Bus Speed |
375 kbps |
|
Communication Bus Speed |
2 Mbps |
|
Expansion Bus Ports |
6 RS-485 ports (A/B/C three channels, dual redundancy per channel) |
|
Expansion Cable Model |
Model 9000 (default 6 feet/1.8 meters, longer cables available if needed - maximum supported distance should be confirmed) |
Questions & Answers
💡 FAQ
Q: What is the brand?
A: Tricnoex
Q: What is the type?
A: Main Chassis
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
