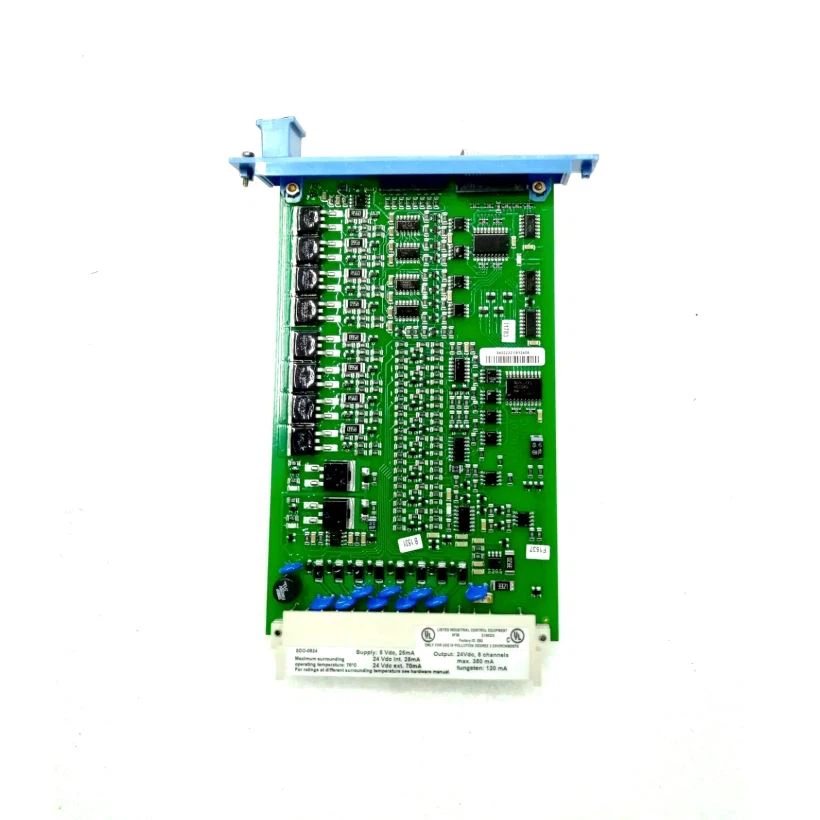

Honeywell FS-SDO-0824 Safe Digital Output Module
Overview
Honeywell FS-SDO-0824 is a safety digital output module designed for industrial applications that require safe shutdown control. It provides 8 channels (divided into 2 groups, 4 channels each), each with a freewheeling diode to suppress reverse voltage shocks of inductive loads. 24V DC output, maximum 550mA per channel, maximum load power 13W, supports resistive loads (such as indicator lights) and inductive loads (such as relays, solenoid valves).
Function & Features
- The output section of the FS-SDO-0824, including the suppression diode, is fully tested and suitable for safety-related applications.
- The FS-SDO-0824 performs multiple tests on the outputs, such as the ability to disconnect power, the ability to disconnect the group by secondary means, crosstalk between outputs, and the function of the suppression diode, to detect faults in a timely manner.
- Each group of 4 outputs is equipped with an independent secondary disconnect circuit, and the FS-SDO-0824 can still safely shut down the outputs in the group when a single channel fails.
Specifications
|
Parameter |
Specification |
|
Number of output channels |
8 |
|
Output specification |
24 Vdc solid-state source, short-circuit proof |
|
Maximum current |
550 mA33 |
|
Maximum lamp load |
120 mA (2.9 W) |
|
Maximum load capacitance |
1 µF |
|
Voltage drop |
< 2.0 Vdc at 500 mA |
|
Off current |
< 0.1 mA |
|
WDG input current |
8 mA |
Questions & Answers
FAQ
Q: What is the brand?
A: Honeywell
Q: What is the type?
A: Safe Digital Output Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
