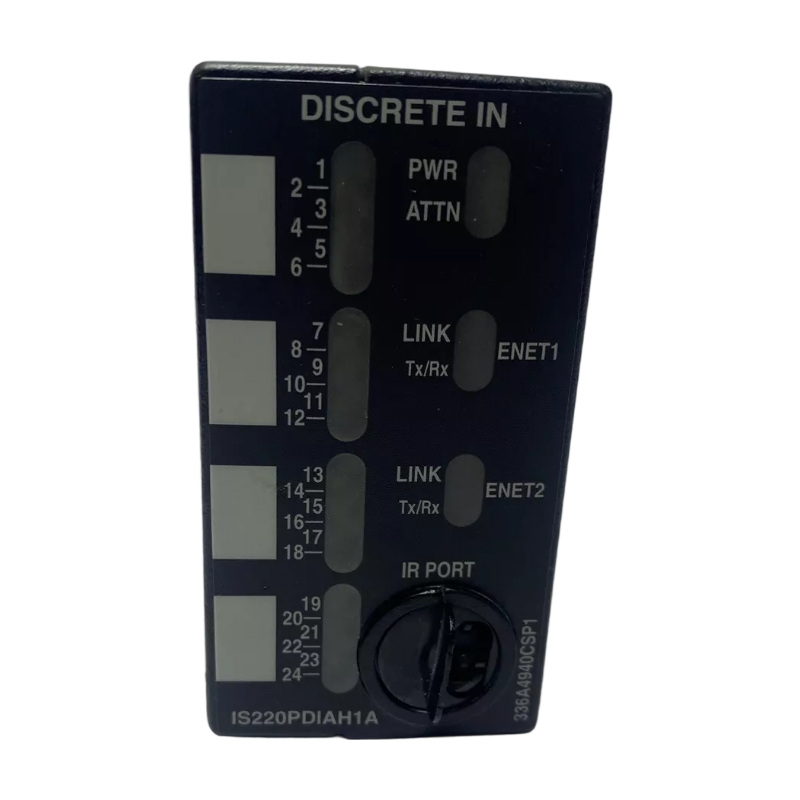

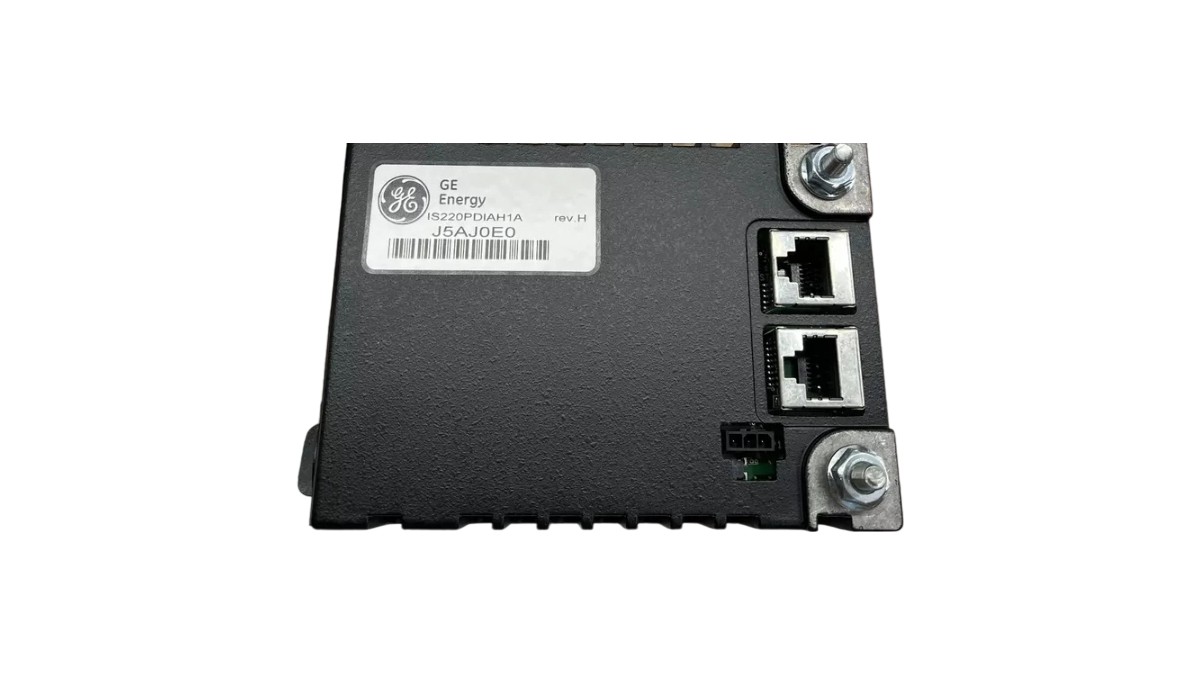

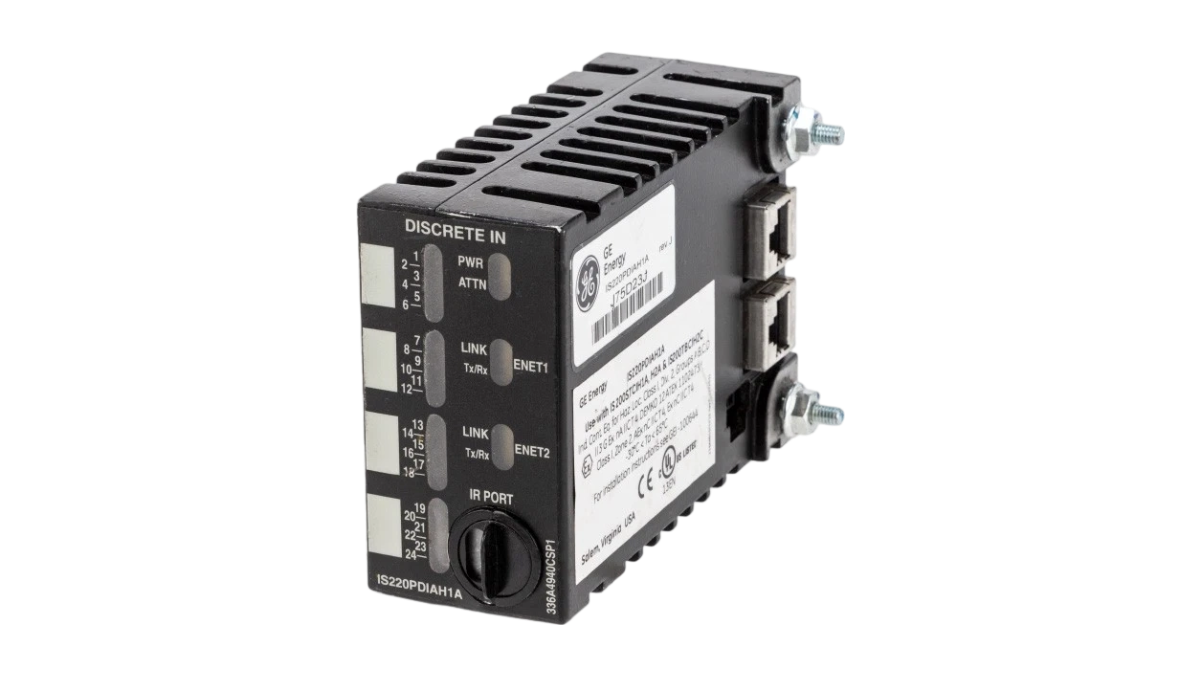

GE IS220PDIAH1A Discrete Contact Input Terminal Board

Overview

GE IS220PDIAH1A is a discrete contact input terminal block for the GE Mark VIe system, used to connect the I/O Ethernet network to discrete input terminal blocks. It acquires discrete signals, receiving and processing two-contact input signals from devices, including switch status and sensor signals.It supports three different voltage levels and supports TBCI H1, H2, and H3 terminal blocks.

🚀Function & Features

Core Mission: The IS220PDIAH1A is an I/O package capable of acquiring up to 24 discrete (disconnect) contact input signals.

Voltage Sensing: When used with the TICI isolated discrete input terminal board, the IS220PDIAH1A can perform voltage sensing, detecting the presence of voltage at the input points.

Processor: The IS220PDIAH1A package includes a dedicated processor board responsible for executing logic, processing input signals, and managing communications.

Specifications

Parameter	Description
Part Number	IS220PDIAH1A
Type	Discrete Contact Input I/O Pack
Terminal Boards	TBCIH1A, TBCIH2A, TBCIH3A, TICIA, STCIA
Voltage Levels (via different terminal boards)	-TBCIH1A: Low voltage -TBCIH2A: Medium voltage -TBCIH3A: High voltage -TICIA: Voltage sensing (Sinking) input
Mounting Method	Directly and vertically plugged into the terminal board via threaded studs
Dimensions	15.2 x 17.3(cm)
Weight	Approximately 0.66 kg
