overview：

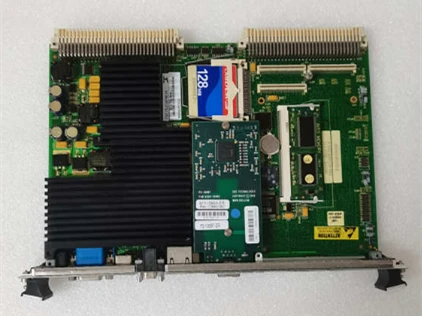

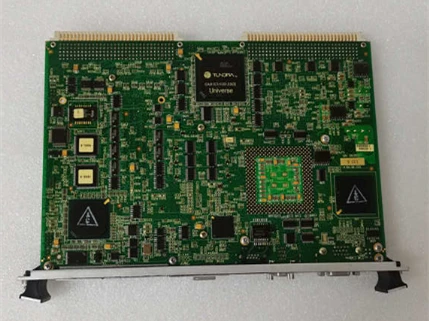

IS215UCVEH2AF is the UCVE VME controller board for the GE Speedtronic Mark VI turbine control system. It operates as the main processing unit on the VME64 backplane, executes closed-loop turbine control algorithms, manages VME bus data transfer, and exchanges signals with Mark VI I/O sub-boards. The board handles communication to operator HMI stations and data historians. This GE Mark VI VME controller board runs within TMR triple redundant architecture consisting of M1, M2 and C control channels.
Fuctions & Features:
- Acts as VME64 bus master for Mark VI backplane communication
- Runs real-time control logic for turbine and generator regulation
- Synchronizes processing cycles across three TMR control channels
- Onboard diagnostic circuits log fault events and bus errors
- Non-volatile flash storage holds control firmware and application logic
- 10/100Mbps Ethernet port for external host communication
- LED indicators for power, bus activity and fault status
- Interfaces with a full range of IS200 series Mark VI I/O and terminal boards
- Installs into standard Mark VI VME rack slots
Specification
| Parameter | Details |
| Part Number | IS215UCVEH2AF |
| Product Name | VME Controller Board |
| Control System | Mark VI |
| Bus Standard | VME64 |
| Processor Clock | 450 MHz |
| Onboard RAM | 512 MB |
| Flash Storage | 2 GB |
| Control Supply Voltage | 5 VDC, 3.3 VDC |
| Operating Temperature | 0 °C to 60 °C |
| Communication Interface | 1 × 10/100 Mbps Ethernet |
| Supported Architecture | TMR redundant (M1/M2/C) |
| PCB Revision | H2AF |
| Dimension | 260 mm × 160 mm × 20 mm |
| Net Weight | 0.68 kg |
Product Comparison
| Parameter | IS215UCVEH2AF | IS215UCVEH2AE | IS215UCVEH2AD |
|---|---|---|---|
| PCB Revision | H2AF | H2AE | H2AD |
| Processor Speed | 450 MHz | 450 MHz | 350 MHz |
| RAM Capacity | 512 MB | 512 MB | 256 MB |
| Flash Memory | 2 GB | 1 GB | 1 GB |
| Supported Firmware | 7.0.x and above | 6.6.x to 6.9.x | 5.9.x to 6.5.x |
| VME Bus Timing | Standard | Standard | Early timing variant |
| TMR Support | Yes | Yes | Yes |
fAQ
Q: Can IS215UCVEH2AF directly replace IS215UCVEH2AE?
A:The physical fit matches. System firmware needs an upgrade to version 7.0.x or higher before using IS215UCVEH2AF in racks originally running IS215UCVEH2AE.
Q: Does this VME controller board ship with preloaded control logic?
A: Application control logic is not preloaded. Site engineering teams download the project file after installation. Base firmware can be flashed on-site.
Q: Can IS215UCVEH2AF run outside of TMR configuration?
A: Simplex operation is technically possible for bench testing. Standard turbine protection and control applications require three synchronized TMR channels.
Q: Is hot swap supported for this Mark VI controller board?
A: Hot swap is only allowed when the other two TMR channels stay online and healthy. Remove power to the slot during simplex operation.
Q: What is the payment method?
A: T/T
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q: What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
