GE IS200VCMIH2B Bus Master Controller Board

GE IS200VCMIH2B Bus Master Controller Board

Item Number:IS200VCMIH2B
Brand:GE
Price: $1
Lead Time: In stock
Description:Bus Master Controller Board
Payment: T/T
Shipping Port: XIAMEN
Send Inquiry
Description

↵↵

overview：



GE IS200VCMIH2B is a VME bus master board developed for the GE Mark VI control system. This VCMI board is a control and interface module that communicates internally with the I/O boards in the rack and with other VCMI cards via IONet. The IS200VCMIH2B board uses multiple types of memory such as dual-port memory, SRAM, and flash memory to work together.IS200VCMIH2B connects to other modules on the backplane through the VME bus.

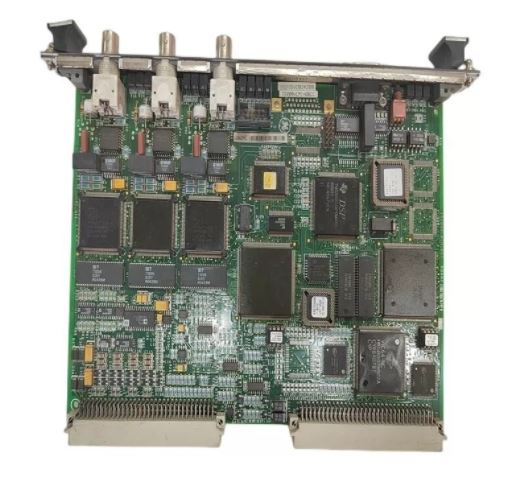

GE IS200VCMIH2B Bus Master Controller Board
GE IS200VCMIH2B

Fuctions & Features:



  • The IS200VCMIH2B is based on the Texas Instruments TMS320C32 32-bit digital signal processor, which can operate and analyze input signals and data.



  • The IS200VCMIH2B uses different types of memory such as dual-port memory, SRAM and flash memory to work together. It communicates with other devices through the IONet Ethernet port.



  • In a simplex system, a single cable connects the control module to one or more interface modules to achieve data transmission and command issuance.



  • The IS200VCMIH2B uses the VME bus for block transmission to achieve data transmission between other devices or modules on the backplane.



Specification:



Category

Details

Model

IS200VCMIH2B

Part of

GE Mark VI Control System

Processor

Texas Instruments TMS320C32 32-bit DSP

Memory

- Dual-port memory: 32 KB (32-bit)
- SRAM: 64k x 32
- Flash: 128k x 8

Communication

- IONet: 3 x 10 Base2 Ethernet ports (10 Mbits/sec, BNC connectors)
- VME bus block transfers
- 1 RS-232C serial port (9600, 19,200, or 38,400 bits/sec)
- 1 parallel port (8-bit bi-directional, EPP Version 1.7)

Frame Rate

- Simplex: 10 ms (100 Hz)
- TMR: 40 ms (25 Hz)

Fault Tolerance

Software Implemented Fault Tolerance (SIFT)

System Compatibility

- Simplex systems (1 Ethernet port)
- TMR systems (3 Ethernet ports)
