GE DS200TBCBG1A DS200TBCBG1AAA DS200TBQBG1ACB
Overview

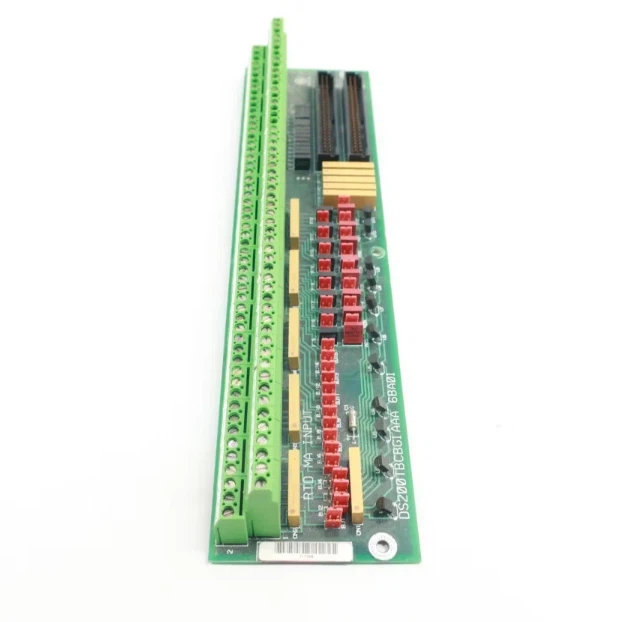

GE DS200TBCBG1A (DS200TBCBG1AAA, DS200TBQBG1ACB) is an RTD (Resistor Temperature Device) and 4-20mA signal input terminal block (TBCB) in the Speedtronic Mark V series. Located in slot 7 of the R5 core, this module receives RTD temperature signals and analog signals from sensors and transmits them to the TCCB board for processing.
Note: The DCOM signal (BJ1-BJ22) must be connected correctly, otherwise the signal cannot be transmitted.
🚀Function & Features
- Software-Free Configuration: All settings for the DS200TBCBG1A (DS200TBCBG1AAA, DS200TBQBG1ACB) are made via physical jumpers (BJ1-BJ30); no programming is required.
- Examples of jumper functions: BJ1-BJ22 are used for DCOM signal connections (must be configured), and BJ23-BJ30 convert the 4-20mA signals on channels 15-22 to 0-1mA.
- Mounting Location: The DS200TBCBG1A (DS200TBCBG1AAA, DS200TBQBG1ACB) is located in the I/O control segment of the Mark V control cabinet (four segments, nine slots each). It is typically installed in the lower large slot (the upper slot houses the five miniature boards).
Specifications
|
Category |
Details |
|
Model Number |
- DS200TBCBG1A |
|
Belonged System |
GE Speedtronic Mark V |
|
Installation Position |
R5 Core, 7th Slot |
|
Dimensions (W×H×D) |
141.59mm × 201.25mm × 38.14mm |
|
Installation Method |
Vertically inserted into Mark V Rack |
|
Weight |
Approximately 0.8kg |
|
Jumper Configuration |
Set via BJ1 - BJ30 Jumpers |
Questions & Answers
💡 FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: 4-20 mA RTD Input Termination Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
