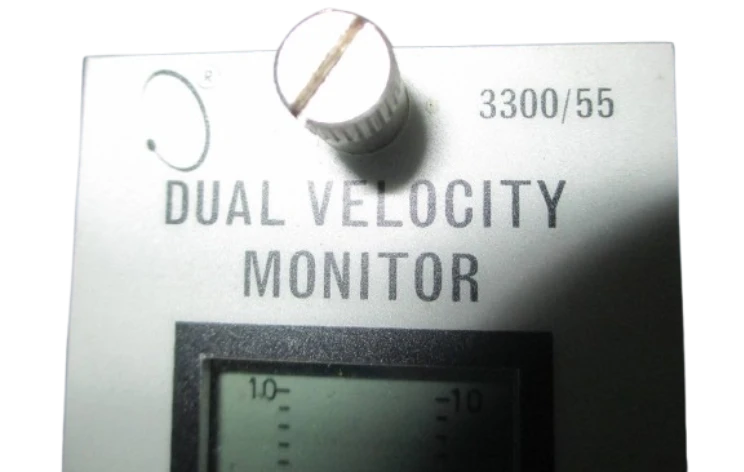

Bently Nevada 3300/55 Dual Velocity Monitor
Overview
Bently Nevada 3300/55 Dual Velocity Monitor is a device used for online monitoring of machinery vibration. It can be input by one or two Velomitor® sensors, the High Temperature Velomitor System (HTVS), or the Velocity Seismoprobe® sensor. No interface module is required and user-selectable settings are available. However, when measuring the casing for overall machine protection, the effectiveness of the measurement and the sensor installation issues must be considered.
🚀Function & Features
- Dual Channel Monitoring: The 3300/55 provides continuous mechanical vibration monitoring on two channels.
- Multiple Sensors: The 3300/55 can receive signals from one or two Velomitor® sensors, High Temperature Velomitor Systems (HTVS), or Velocity Seismoprobe® sensors.
- Parameter Settings: The 3300/55 allows users to easily field program options such as high-pass and low-pass filter corner frequencies via plug-in jumpers.
Specifications
|
Parameter |
Details |
|
Input |
|
|
Sensitivity |
500 mV/in/s, 145 mV/in/s or 100 mV/in/s (jumper programmable) |
|
Power Consumption |
Nominal 1.5W |
|
Frequency Response |
3-10,000 Hz (180 - 600,000 cpm), nominal -3dB for velocity seismometer |
|
Filter Corner Frequencies |
- High-pass: Selectable from 450 frequencies (3-400 Hz / 180-24,000 cpm) |
|
- Low-pass: Selectable from 500 frequencies (24-3,000 Hz / 1,440-180,000 cpm) |
|
|
- Corner frequencies typically 3 dB below passband center frequency |
|
|
Output |
|
|
Recorder |
+4 mA to +20 mA, 0 Vdc to -10 Vdc, or +1 Vdc to +5 Vdc |
|
Recorder Accuracy |
±0.7% of signal for +4 to +20 mA |
|
±0.09 mA offset at +25°C (+77°F) |
|
Questions & Answers
💡 FAQ
Q: What is the brand?
A: Bently Nevada
Q: What is the type?
A: Dual Velocity Monitor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
