overview：

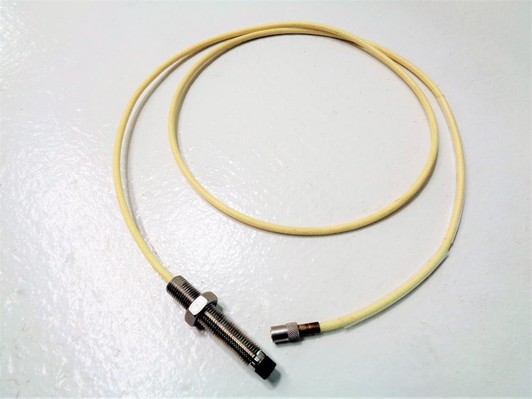

Bently Nevada 21504-000-008-05-02 is an 8mm standard mount proximity probe designed for use with proximity sensor systems and 3300 XL Series sensors. This proximity probe is a key component for vibration monitoring and displacement measurement in industrial machinery such as turbines, motors, and pumps.
This 8 mm standard mount probe is designed for use with Bently Nevada's 3300 XL Series Near Field Sensor System for vibration measurements. It is typically used to monitor the condition of rotating machinery and detect faults in critical industrial applications.
Fuctions & Features:
Armored and Unarmored Options: One of the standout features of the Bently Nevada 21504-000-008-05 probe is the availability of both armored and unarmored models.
- Armored Model: The armored version is designed for harsh environments where the probe may be subject to physical damage, extreme temperatures, or corrosive substances. The armor provides an extra layer of protection, ensuring the probe's longevity in demanding conditions.
- Unarmored Model: The unarmored model is suitable for less harsh environments where additional protection is not required. This version is often chosen for its cost-effectiveness and ease of installation in standard industrial environments.
- Multiple Connector Options The Bently Nevada 21504-000-008-05 probe supports a variety of connector types, making it highly adaptable to different system configurations. This feature is particularly beneficial for industries that use different monitoring and control systems. The availability of multiple connector options reduces the need for additional adapters or modifications.
- Fully Interchangeable: Another important benefit of the Bently Nevada 21504-000-008-05 probe is its full interchangeability within the 3300 XL Series. This feature simplifies upgrades as probes, devices, and cables can be easily replaced without worrying about compatibility issues.
Specification：
|
Specification |
Details |
|
Determination Conditions |
Determined with a -24 Vdc power supply, 10 kΩ load, and an AISI 4140 steel target at + 72°F(+22°C) |
|
INPUT Power |
-17.5 Vdc to -26 Vdc at 12 mA maximum consumption |
|
OUTPUT Calibrated Range |
80 mils (2.0 mm). Begins at approximately 10 mils(0.25 mm) from probe face |
|
Scale Factor |
200 mV/mil (7.87 V/mm), ±4%(measured in increments of 10 mils over the calibrated range) if calibrated as a system. Within ±9.5% including interchangeability errors |
|
Linearity |
Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line if calibrated as a system. Within 2.3 mils (0.06 mm) of a 200 mV/mil straight line including interchangeability errors |
|
Frequency Response |
0 to 10 kHz(0 to 600,000 cpm); -596 at 10 kHz(600,000 cpm) |
|
Temperature Sensitivity |
Typically -3% change in scale factor at + 150°F(+65°C) at 50 mils gap(1.27 mm) |
|
Extension Cable Operating Temperature |
-60°F to +212°F(-51°C to +100°C) |
Contact us to get a quick quote!
If you are interested in this product or need more technical details, please contact us immediately! Our professional team will provide you with detailed product information and competitive quotations to ensure that you get the most suitable solution at the best price.
📞 Whatsapp/Wechat/Mobile: +86 18059275924
📧 Email: sales18@htechplc.com
