overview：

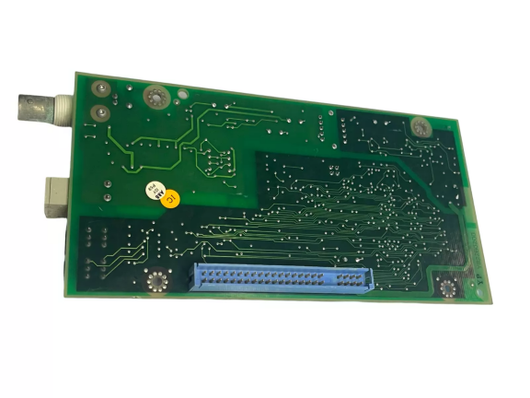

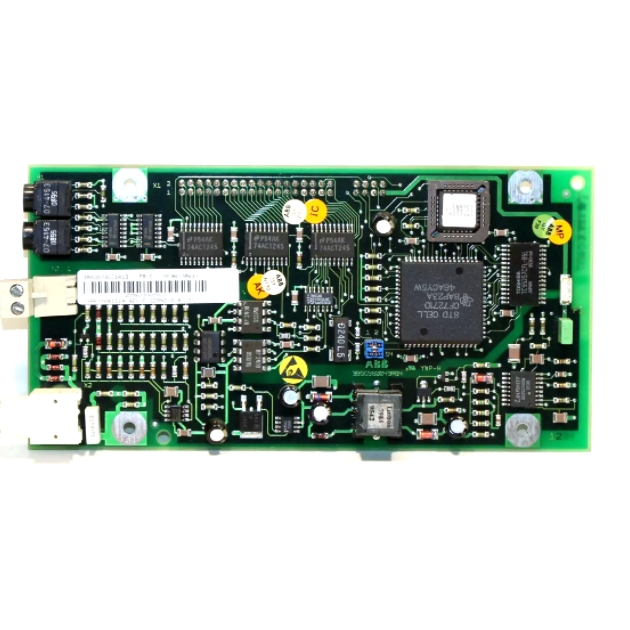

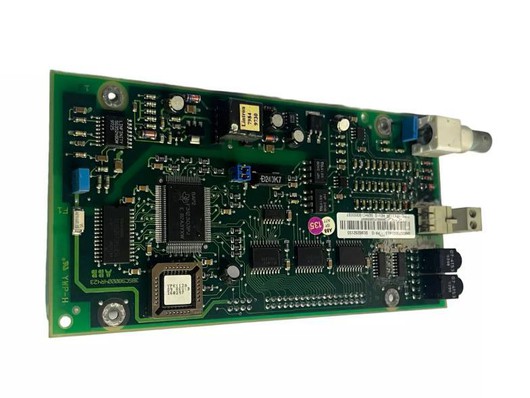

ABB YPK112A 3ASD573001A13 is a communication module for establishing a communication connection between an application controller (APC) and a higher-level control system. It supports the Advant Fieldbus 100 serial bus and is suitable for communication between APCs or between APCs and higher-level systems (such as ABB's Advant Controller AC400 series). When the Advant Controller AC450 is not used, the CI626 Bus Management Board (BA) is required to control the bus. The YPK112A communication module can be used to connect the APC to the Advant Fieldbus 100.
The YPK112A works with other communication boards and bus management boards, such as controlling the Advant Fieldbus 100 with the CI626 (BA) bus management board when the Advant Controller AC450 is not used.
Fuctions & Features:
Communications Support:
- Supports Advant Fieldbus 100 high-speed serial bus communications.
- Use CI626 Bus Management Board (BA) to control the bus when Advant Controller AC450 is not used.
- Connect APC to Advant Fieldbus 100 via YPK112A communication module.
System interaction function:
YPK112A works with other communication boards and bus management boards, such as CI626 (BA) bus management board to control Advant Fieldbus 100 when Advant Controller AC450 is not in use, ensuring the stability and orderly operation of the entire communication system.
Specification:
|
Parameter |
Value |
|
Model |
YPK112A 3ASD573001A13 |
|
Communication Protocol |
Advant Fieldbus 100 |
|
Digital Inputs |
3, 230 VAC/115 VAC/24-48 VDC |
|
Digital Outputs |
3 relay outputs, 2 optocoupler outputs |
|
Analog Inputs |
5, -10 to +10 V, 0/4 to 20 mA |
|
Analog Outputs |
2, -10 to +10 V, with a load of ±10 mA |
|
Pulse Encoder Input |
3 channels (A, B, Z) |
|
Emergency Stop Input/Output |
230 VAC/115 VAC/24-48 VDC |
|
Current Source |
5 mA (for Pt 100), 1.5 mA (for PTC) |
|
Voltage Reference |
±10 V output |
|
Actual Armature Current Output |
0 to 10 V |
