overview：

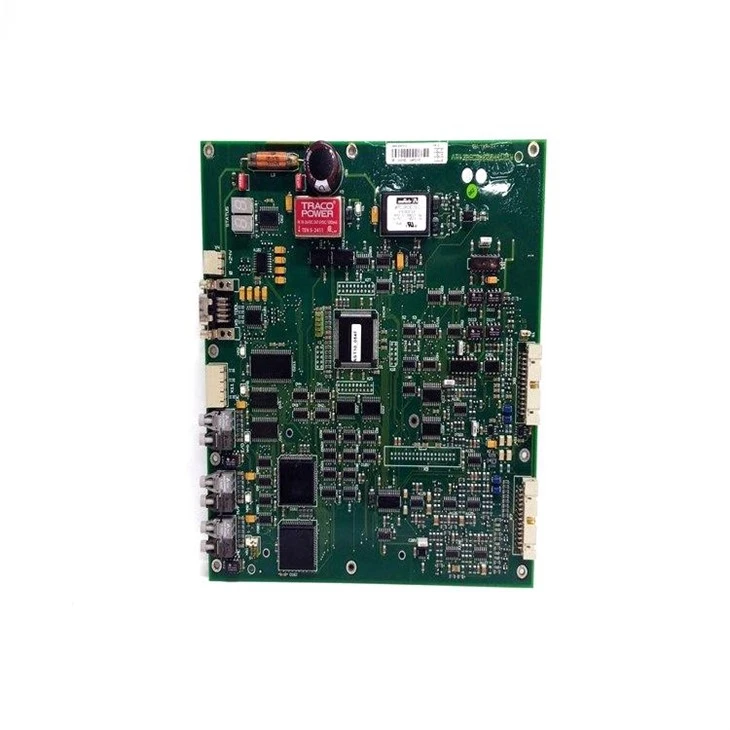

ABB DAPC100 3ASC25H203 control board kit is an advanced control board kit designed for industrial automation systems, including PCB, CD, cable, manual.
The kit contains a core circuit board for executing and managing control tasks, with a built-in microprocessor, which is suitable for a variety of industrial applications, including production line control, process automation and equipment monitoring.
Related products:
ABB AGPS-21C
ABB GRBTU-01
ABB NDBU-95
Fuctions & Features:
- Process I/O-board:24V DC: Connections are provided at X12:3 (+) and X12:4 (-) for power.Control Board I/O, DAPU 100: Mounted on the Process I/O board.
- ABB DAPC100 control board has a built-in microprocessor, which is the core computing component of the control board. It processes the various data received according to the established procedures and algorithms through complex circuit and logic design.
- The input interface of the ABB DAPC100 control board is responsible for receiving signals from external devices, such as sensor signals. Different types of sensors (such as temperature sensors, pressure sensors, position sensors, etc.) convert physical quantities into electrical signals, which enter the control board through the input interface.
Specification:
|
Parameter |
Details |
|
Data bus size |
16 bit |
|
Address bus size |
18 bit |
|
Clock frequency |
16,384 MHz |
|
Interrupt levels |
7 |
|
Watch supervision |
2 levels |
|
Time out supervision |
50 μs |
|
Interval clock |
Programmable |
|
On board EPROM |
512 Kbytes |
|
On board RAM |
64 Kbytes |
|
MCU Internal RAM |
2 Kbytes |
|
Debug interface (BDM) |
1 |
|
Thyristor bridges interface |
2 |
