Overview：

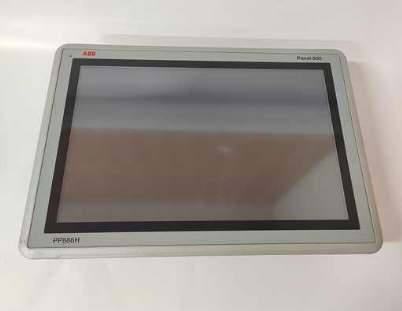

ABB PP886H 3BSE069297R1 Touch Panel 800 Screen
The ABB PP886H 3BSE069297R1 is an industrial touch panel belonging to the ABB Panel 800 series, specifically designed for harsh industrial environments. This industrial touch panel functions as a HMI (Human-Machine Interface), enabling visualization and control for process automation, manufacturing, and power applications.
ABB PP886H 3BSE069297R1 Touch Panel 800 Screen integrates hardware and user-friendly operation, compatible with ABB automation systems and multi-brand controllers to support industrial process management.
Function & Features：
- 15.4-inch High-Resolution Touchscreen Display:1280×800 pixel TFT color LCD display with 16.7 million colors and LED backlighting, achieving a brightness of up to 1000 cd/m², ensuring clear visibility even in bright industrial environments. Resistive touch technology supports up to 5 million finger touch operations.
- ABB Panel 800 Series Compatibility:Fully integrated with the ABB Panel 800 Series ecosystem, compatible with ABB's Panel Builder tool for easy configuration.
- IP66 Front Protection Rating:Dustproof and withstands low-pressure water jets from all directions, with an IP20 rear protection rating. This design withstands humid, dusty, and harsh industrial environments, suitable for factory floor and outdoor industrial applications.
- Flexible Industrial Power Input:Supports multiple power input options. 12 or 24 VDC power, with a wide voltage range of 10–32 VDC, ensuring stable operation under various industrial power conditions. Typical power consumption is 28 W at 24 VDC.
- Multiple communication interfaces:Equipped with one 10/100/1000 Base-T shielded RJ45 Ethernet port, one RS-232 serial port, one isolated RS422/485 serial port, and three USB 2.0 host ports. Supports multi-protocol communication, enabling seamless data exchange with controllers, field devices, and enterprise systems.
Specifications：
| Parameter | Details |
|---|---|
| Product Model |
PP886H |
| Part Number | 3BSE069297R1 |
|
Series |
Panel 800 |
| Display Size |
15.4 inches |
|
Resolution |
1280 × 800 pixels |
|
Display Type |
TFT color LCD with 16.7 million colors, LED backlight |
|
Touch Type |
Resistive touch screen, 5 million finger touch operations |
|
Protection Class |
IP66 , IP20, NEMA 4x |
|
Power Supply |
12 or 24 VDC, wide voltage range 10–32 VDC |
|
Operating Temperature |
-30°C to +70°C |
|
Relative Operating Humidity |
5–85% non-condensing |
| Product Net Depth / Length | 83 mm |
| Product Net Height | 286 mm |
| Product Net Width | 410 mm |
| Product Net Weight | 4.7 kg |
Questions & Answers
💡 FAQ
Q: Can the ABB PP886H 3BSE069297R1 directly replace the older PP886 model without modifying the mounting holes?
A: It can be directly replaced. The mounting dimensions and cutout dimensions are the same as the older PP886 model, requiring no modification to the mounting holes.
Q: What is the operating temperature range of the ABB PP886H? Can it operate in low-temperature industrial environments?
A: The operating temperature range is -30°C to +70°C. It can operate stably in low-temperature industrial environments such as cold storage and northern outdoor industrial sites.
Q: Does the touch panel support operation while wearing gloves? What is the lifespan of the touchscreen?
A: It uses resistive touch technology and supports operation while wearing gloves. The touchscreen has a lifespan of up to 5 million finger touches, meeting the needs of long-term industrial use.
Q: What communication protocols does the ABB PP886H 3BSE069297R1 support? Is it compatible with non-ABB controllers?
A: It supports Ethernet, RS232, RS422/485 and USB communication protocols. It adopts an open architecture and is compatible with most mainstream non-ABB industrial controllers.
Q: What are the payment methods?
A: T/T
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
