overview：

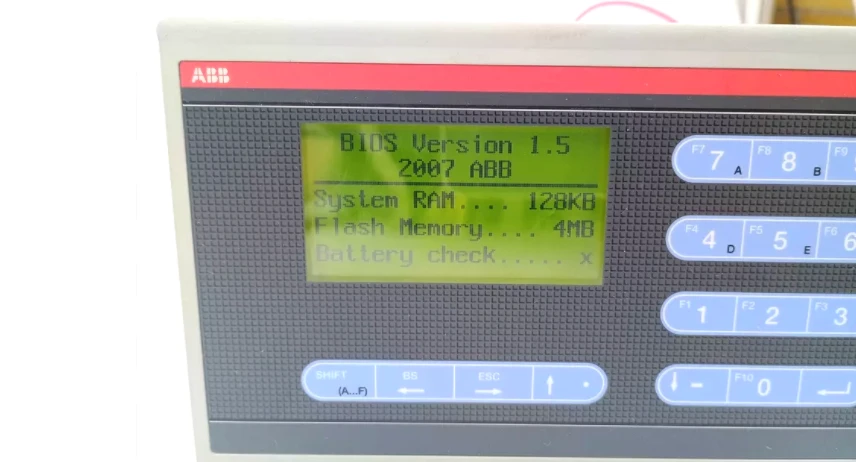

ABB CP410M 1SBP260181R1001 control panel is a human-machine interface (HMI) device with a 3-inch STN LCD display (supports backlight display, suitable for low-light environments), physical button design, and easy operation with gloves.
Its functions include creating parameter displays, alarm lists, control buttons, etc. It has an IP65/NEMA 4X protection level, is waterproof and dustproof, and is suitable for a variety of ABB drives (such as ACS series inverters) and control systems.
Related products: ABB CP410
Fuctions & Features:
Core Advantages
Display and operation:
3-inch STN monochrome LCD screen (160×80 pixels, 16 grayscale levels).
16 function keys support fast parameter setting and operation.
Text + graphic display, each screen supports 10 lines of text. Widescreen ratio (2:1).
Communication and interface:
Communication protocols are Modbus RTU, AC500 Modbus ASCII, etc. (depending on the drive model).
Serial interface: 2×RS232/RS422/RS485 (configurable).
USB/Profibus is not supported.
Software and programming:
Development tool: CP400Soft (supports macro and ladder logic).
User memory: 4 MB ROM (can store 4000 kB application).
Security features: 9 levels of password protection.
| Parameter | CP410M |
| Front panel, W x H x D | 173.0 x 105.5 x 7.8 mm |
| Mounting depth | 51.8 mm |
| Cut - out dimensions | 160.8 x 93.3 mm |
| Front panel protection | IP 65/NEMA 4X (indoor use only) |
| Keypad specifications | 16 mechanical switches. Lifetime of each switch is over 500,000 activations. Membrane overlay is resistant to most solvents and chemicals. |
| Weight | 0.37 kg |
| Communication ports | RS232/RS422/RS485 |
| Flash ROM | 4 MB |
| RAM | 128 KB |
| CPU | 32-bit RISC |
ABB CP410M 1SBP260181R1001 - Questions and Answers：
Q: What is the brand?
A:ABB
Q: What is the type?
A: Control Panel
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
