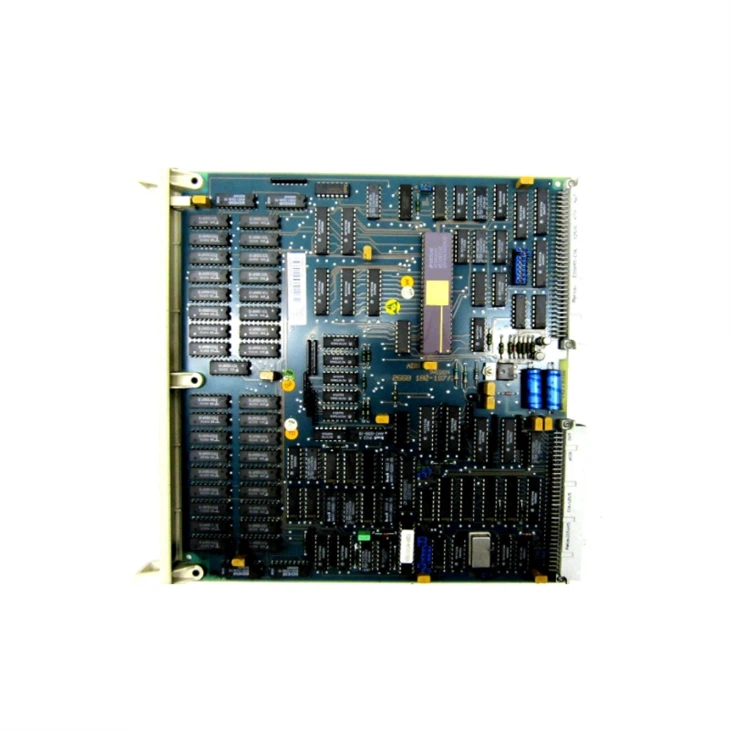

ABB DSMB 175 57360001-KG Memory Board, Dynamic
Overview
ABB DSMB 175 57360001-KG memory board is a dynamic memory module for ABB industrial control and automation systems. It has a storage capacity of 4MB and can accommodate a large amount of operating parameters, configuration information and process data. It has read and write functions based on the characteristics of dynamic RAM, which can process and store data in a timely manner, especially in process control scenarios. When writing data, the control circuit manages the conduction and cutoff of the transistor, charging the capacitor for "1" and discharging it for "0".
🚀Function & Features
- Storage capacity: ABB DSMB storage board usually has a storage capacity of 4MB, which can store a large amount of operating parameters, configuration information, process data, etc.
- Read and write function: ABB DSMB has read and write capabilities based on the characteristics of dynamic RAM. Whether it is process control or other places where control parameters need to be updated quickly, it can process and store them in time.
- Data writing: When the ABB DSMB storage board needs to write data to the storage unit, the control circuit controls the conduction and cutoff of the transistor according to the input signal. If "1" is to be written, the capacitor is charged; if "0" is to be written, the capacitor is discharged.
Specifications
|
Part Number
|
DSMB 175 / 57360001-KG
|
|
Product Type
|
Dynamic DRAM Memory Expansion Board
|
|
Memory Capacity
|
4MB Industrial Dedicated Storage
|
|
Working Voltage
|
5VDC ±5%
|
|
Working Current
|
120mA Max Operating Current
|
| Series | Advant OCS |
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Vibration Resistance Grade
|
10Hz–150Hz Industrial Anti-vibration Standard
|
|
HS Code
|
8537101100
|
| Net Depth/Length: | 128 mm |
| Net Height: | 180 mm |
| Net Width: | 60 mm |
| Net Weight: | 0.5 kg |
Questions & Answers
💡 FAQ
Q: What is ABB DSMB 175 57360001-KG used for?
A: ABB DSMB 175 57360001-KG is a 4MB dynamic memory expansion board, used for data caching and program storage of ABB MasterPiece 200/1 DCS systems, expanding system operating memory and maintaining stable DCS operation.
Q: What faults can replacing this dynamic memory board solve?
A: It can solve common DCS faults such as insufficient system memory, program loading failure, data caching error, system stuttering and intermittent downtime caused by aging or damaged memory modules.
Q: What is the brand?
A: ABB
Q: What is the type?
A: Memory Board, Dynamic
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
