overview：

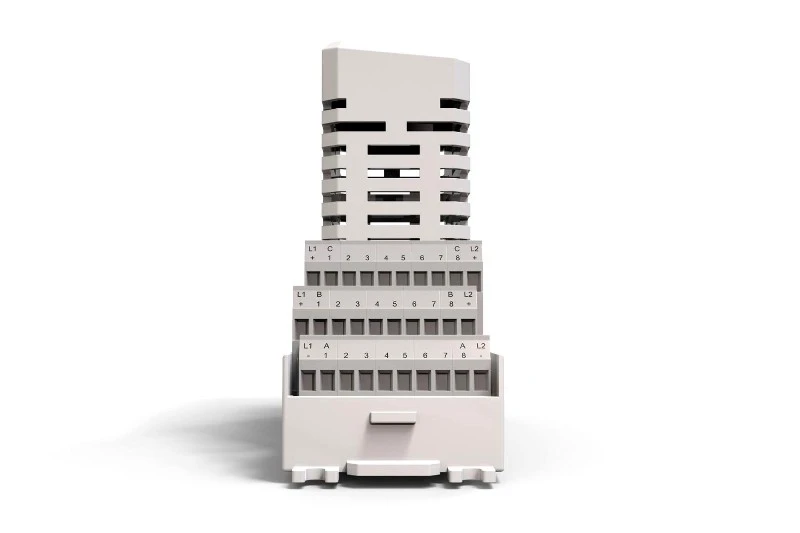

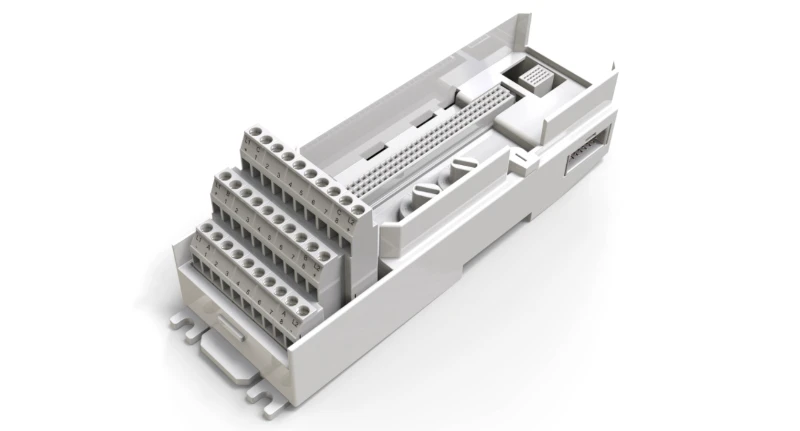

ABB TU810V1 is a 16-channel, 50V module terminal unit (MTU) for S800 I/O. As a passive unit, it is used to connect field wiring to I/O modules and contains part of the ModuleBus.
The MTU distributes the ModuleBus to the I/O modules and the next MTU, and also generates the correct address of the I/O module by shifting the outgoing position signal to the next MTU. In addition, TU810V1 is a passive device, and its function depends on the matching S800 I/O module and control system architecture.
This termination unit mainly undertakes physical installation and fixed positioning of DCS I/O modules, centralized signal wiring integration and stable circuit docking work, serving as the core connecting carrier between field equipment signals and DCS control cabinet internal modules.
Fuctions & Features:
- Signal and power distribution: TU810V1 provides 16 channels of field signal and process power connection, supporting single-line connection. Assign ModuleBus signals to I/O modules and pass bus signals to the next MTU.
- Automatic address generation: TU810V1 generates the correct address for the connected I/O module by shifting the output position signal, supporting module cascade expansion.
- Mechanical key configuration: TU810V1 uses dual mechanical keys (6 positions each) to achieve 36 combinations, physically preventing mis-insertion of different models of I/O modules (mechanical locking only, does not affect electrical functions).
- Standard Signal Terminal Docking and Wiring Integration
The ABB TU810V1 3BSE013230R1 termination unit is equipped with industrial standard signal terminals, supporting single-point independent wiring for field analog and digital signals. It integrates scattered field signal lines into standardized cabinet wiring structures, sorting out messy internal circuits of DCS cabinets and realizing unified management of control system signal circuits.
Specification：
| Parameter | Value |
|
Part Number
|
TU810V1 / 3BSE013230R1
|
|
Product Type
|
DCS System Compact Signal Termination Base Unit
|
|
Terminal Quantity
|
24 Points Industrial Signal Terminals
|
|
Rated Operating Voltage
|
24VDC / 120VAC Industrial Standard
|
|
Single Terminal Rated Current
|
Max 5A Per Channel
|
|
Insulation Resistance
|
≥1000MΩ at 500VDC
|
|
Withstand Voltage
|
2000VAC 50Hz 1min No Breakdown
|
|
Signal Transmission Accuracy
|
±0.02% Static Signal Error
|
| Channels | 16 |
| Voltage | 50 V |
| Mounting | Both directions |
| Maximum current per I/O channel | 2A |
| Maximum current process connection | 5A |
| Dimensions - Width | 64 mm (2.52 in.) including connector, 58.5 mm (2.3 in.) edge - to - edge installed |
| Dimensions - Depth | 64 mm (2.52 in.) including terminals |
| Dimensions - Height | 170 mm (6.7 in.) including latch |
| Weight | 0.17 kg (0.37 lbs) |
ABB TU810V1 3BSE013230R1- Questions and Answers：
Q:What is ABB TU810V1 3BSE013230R1 used for?
A:ABB TU810V1 3BSE013230R1 is a compact module termination unit, used for I/O module fixing and field signal wiring termination of ABB DCS control systems, standardizing cabinet circuit connection and ensuring stable signal transmission.
Q: What is the brand?
A: ABB
Q: What is the type?
A: Compact Module Termination Unit
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
