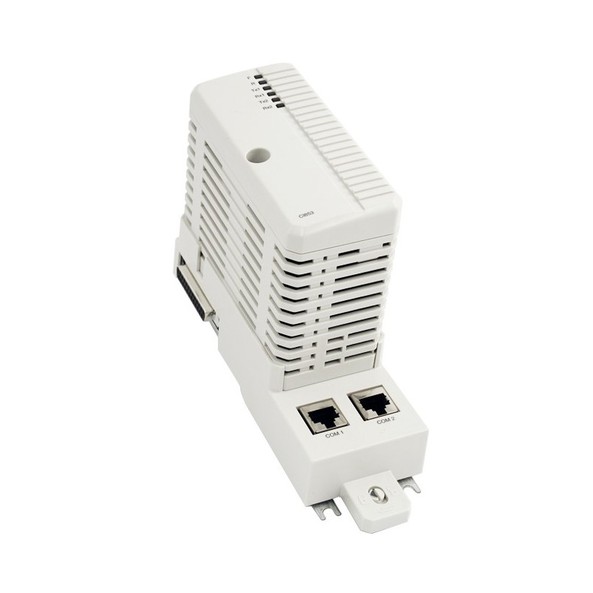

ABB CI853K01 3BSE018103R1 Dual RS232-C Interface
Overview
ABB CI853K01 (3BSE018103R1) is a dual RS232-C communication interface module, mainly used for ABB AC 800M controller. It supports COMLI (ABB proprietary protocol), Modbus RTU, Siemens 3964R and user-defined protocols. When used with a fiber optic converter, when RS-232C is used for COMLI serial communication, the cable length can be greatly extended (up to several thousand meters), breaking the communication distance limit.
🚀Function & Features
- COMLI protocol: CI853K01 can be used on the built-in COM3 port and CI853 port, based on RS-232C serial communication. Suitable for asynchronous master/slave half-duplex data transmission between controllers, supports application-controlled dial-up modems, and CI853 supports both master/slave mode under this protocol.
- MODBUS RTU protocol: It is an open serial protocol (based on RS-232, etc.), master/slave architecture, half-duplex communication. Both the AC 800M COM port and CI853 can configure their functions, but module redundancy is not available under this protocol.
- Siemens 3964R: It can be used on the built-in COM3 port and CI853 port, requires a standard RS-232C/485 communication channel, and is conducive to working with Siemens related equipment using this protocol.
- Customized Serial Communication: CI853K01 can be used with the built-in COM3 port of the AC 800M controller and the CI853 port to meet users' special and customized serial communication needs.
Specifications
|
Parameter |
Details |
|
Max units on CEX bus |
12 |
|
Connector |
RJ-45 female (8 - pin) |
|
24 V consumption typ. |
100 mA |
|
Interface Type |
2×RS-232C (DB9 Interface) |
|
Level Standard |
±5V to ±15V (RS-232C) |
|
Baud Rate |
300 bps ~ 115.2 kbps (configurable) |
Configuration points
Configuration tool: ABB Control Builder or similar engineering software.
Cable requirements: Shielded RS-232 cable is recommended, and fiber optic converter is required for long distance.
Protocol allocation: Each port needs to be configured with a separate protocol (mixing is possible).
