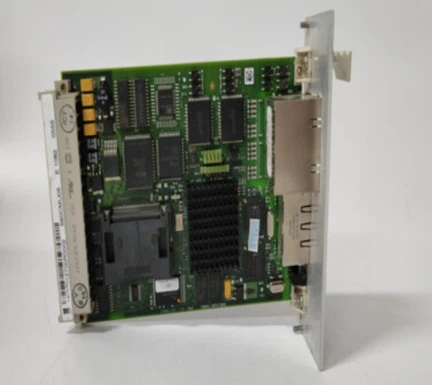

ABB 560CMU05 RTU560 Communication Unit
The ABB 560CMU05 RTU560 Communication Unit serves as the core communication hardware specifically designed for the ABB RTU560 Remote Terminal Unit (RTU) series. It is responsible for managing data transmission, protocol parsing, and network interaction tasks within the RTU rack. This module establishes data connections between field I/O modules, intelligent electronic devices (IEDs), and the upper-level SCADA system, thereby enabling bidirectional data transmission capabilities in power and industrial automation environments.
Compared to traditional RTU560 modules, the 560CMU05 places a greater emphasis on network communication processing capabilities; it not only optimizes the concurrent processing of multiple protocols and network throughput performance but also integrates self-diagnostic and time synchronization functions.
Function&Features：
ABB 560CMU05 RTU560
- Specialized Communication-Oriented Hardware Design: Employs a high-performance, industrial-grade 32-bit microprocessor, specifically optimized for concurrent communication processing and data forwarding.
- Comprehensive Standard Interface Configuration:Equipped with dual 10/100Base-T Ethernet RJ45 ports, as well as four configurable serial ports (supporting switchable RS232 and RS485 modes).
- Dual-Network Redundancy Mechanism: Leveraging two independent Ethernet ports, the device supports flexible network redundancy deployment schemes. This effectively mitigates the risks of data interruption and packet loss caused by single-cable breaks or switch failures, thereby significantly enhancing the operational stability of the entire communication system.
- Integrated System Diagnostics and Clock Synchronization: Features comprehensive self-diagnostic capabilities that enable real-time monitoring of the module's operational status, port connection integrity, and data transmission quality.
- Hot-Swapping and Modular Installation Support: Adopts a plug-in structural design compliant with the RTU560 series rack standards. It supports online module replacement and maintenance while the system remains powered on and operational, thereby minimizing downtime during field operations.
- Low Power Consumption and High Operational Stability:Thanks to an optimized circuit design, the total power consumption of the unit is strictly maintained below 10W.
Specifications：
|
Parameter |
Value |
|
Product Model |
560CMU05 RTU560 Communication Unit |
|
Part Number |
1KGT012700R0002 |
|
Applicable Series |
ABB RTU560 Series |
|
Processor |
32-bit Industrial Microprocessor |
|
Ethernet Interface |
2 × 10/100Base-T RJ45 Ports |
|
Serial Interface |
4 × Configurable RS232/RS485 Ports |
|
Diagnosis Interface |
1 × USB 2.0 Port |
|
Power Supply |
24V DC Standard Power Input |
|
Max Power Consumption |
＜10W |
|
Operating Temperature |
-10°C to +55°C |
|
Height |
203mm |
|
Width |
140mm |
| Length | 58mm |
|
Weight |
0.1KG |
ABB SD823 - Q&a
Q: What is the primary application of the ABB 560CMU05?
A:The ABB 560CMU05 is a communication unit specifically designed for the RTU560 Remote Terminal Unit (RTU) series. It is responsible for handling tasks such as protocol parsing, data forwarding, network communication, and system diagnostics, serving as the central data exchange hub between field devices and the upper-level SCADA system.
Q: What communication ports are equipped on the 560CMU05?
A: It features two 10/100Base-T Ethernet ports, four configurable RS232/RS485 serial ports, and one USB 2.0 diagnostic port for field configuration and maintenance.
Q: Is the 560CMU05 compatible with all RTU560 racks?
A: It is fully compatible with the RTU560A, RTU560C, RTU560D, RTU560E, and RTU560G series racks and can be used without the need for any additional adapters.
Q:What auxiliary modules can be used in conjunction with the 560CMU05?
A:It can be paired with the 560PSU01/560PSU02 power supply modules, 560RTC01/560RTC02 clock modules, and all I/O modules within the RTU560 series to construct a complete RTU system.
Q: Can the 560CMU05 be used for the modernization of legacy RTU systems?
A:It can replace aging communication modules in legacy RTU systems, thereby enhancing the network communication capabilities and system stability of older automation projects.
Q: What is the warranty?
A: 1 year
Q: What is the payment method?
A: T/T
