Overview：

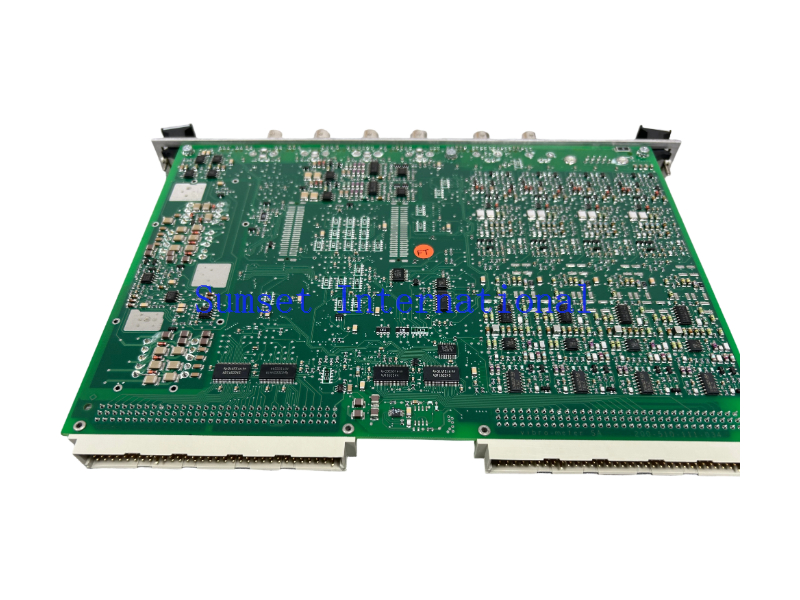

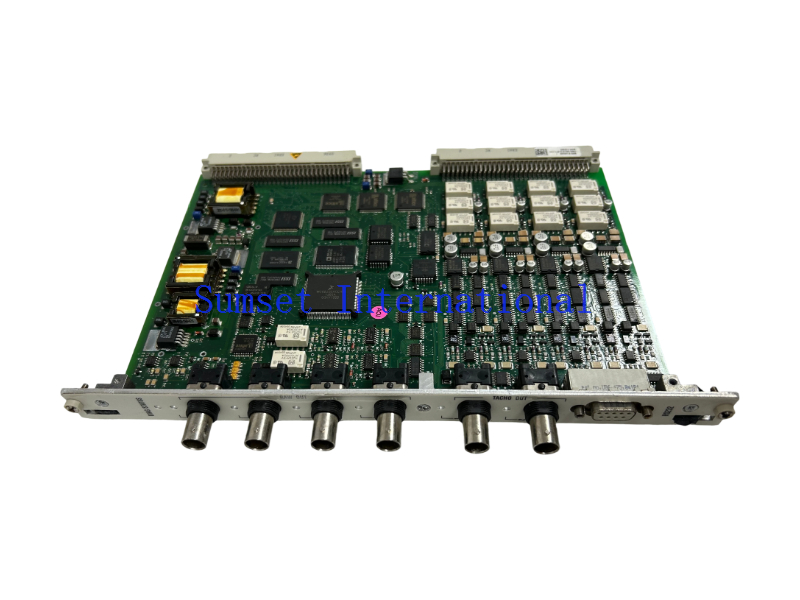

MPC4 200-510-070-113 Machinery Protection Card
The MPC4 200-510-070-113 is a mechanical protection card used to protect rotating machinery (such as turbines, compressors, pumps, etc.) from damage caused by vibration, displacement, or abnormal speed. This card is available in three versions: standard, independent circuit, and safety (SIL). Some versions have a protective coating, and the standard and safety versions have passed relevant safety certifications.
Note: The MPC4 needs to be paired with a corresponding IOC4T input/output card to form a complete functional unit.
Contact us for a quote：
Email: sales7@nseauto.com
Whatsapp/Wechat/Mobile: +86 18059276824
Function & Features：
- Dynamic Signal Input: The MPC4 200-510-070-113 card can handle up to four dynamic signal inputs and is fully programmable. Supported sensor types include: accelerometers, speed sensors, and displacement/proximity probes.
- Speed Signal Input: The MPC4 200-510-070-113 can handle up to two speed (key phase) signal inputs. The MPC4 card supports various speed sensors, such as proximity probes, magnetoelectric sensors, or TTL signals, and supports fractional speed ratios.
- Output Method: Alarm signals from the MPC4 200-510-070-113 are provided via a paired IOC4T card, which can drive four local relays on the IOC4T card. This card drives additional relay cards (such as RLC16 or IRC4) via the rack's Raw bus or OC bus.
Specifications：
| Parameter | Details |
|---|---|
| Product Model | MPC4 200-510-070-113 |
| Dynamic Signal Inputs | Up to 4 |
| Speed (Keyphasor) Inputs | Up to 2 |
| Unit System | Configurable as Metric or Imperial |
| Versions | --Standard Version- Separate Circuits Version- Safety Version - MPC4SIL |
| Measurement Parameters |
-Relative Vibration -Absolute Vibration -Smax -Eccentricity -Thrust Position -Absolute and Differential Housing Expansion -Displacement, Dynamic Pressure, etc. |
| Processing Functions |
-Mathematical Operations: Digital Filtering, Integration/Differentiation -Rectification Modes: RMS (Root Mean Square), Mean Value, True Peak, True Peak-to-Peak -Advanced Analysis: Order Tracking (Amplitude and Phase), Sensor-Target Gap Voltage Measurement |
| Height | 262 mm |
| Width | 20 mm |
| Depth | 187 mm |
| Weight | Approx. 0.40 kg |
Questions & Answers
💡 FAQ
Q: Can an MPC4 card work independently?
A: No. MPC4 card must be paired with an IOC4T input/output card to form a "card pair" to work. The MPC4 handles the core calculations, while the IOC4T provides interface functions such as power supply, relays, and analog outputs.
Q: The standard version of MPC4 already has security certification, so why is a security version needed?
A: The standard version's certification is only valid for specific configurations (such as racks containing only protection cards and relay cards). When other non-protection cards are mixed in the rack, the standard version's VME communication interface is potentially at risk of accidental configuration modification.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
